Connecting Cascaded Switches
Note:
The information in this section only applies to the P133G2 and P134G2.
Note:
The two SFP transceivers on the ends of the cable are identical. Each SFP
transceiver can be connected to either an “Up“ or “Down“ port.
To connect cascaded switches
1
Plug one of the SFP transceivers into the port marked “52 Up” on the bottom
P130 switch.
2
Plug the other SFP transceiver into the port marked “51 Down” on the P130
switch above.
The connections are illustrated in Figure 4.7.
3
Repeat Steps 1 and 2 until you reach the topmost switch.
Caution:
Do not cross connect two P130 switches with two cables.
Note:
You can cascade up to 4 P130 switches.

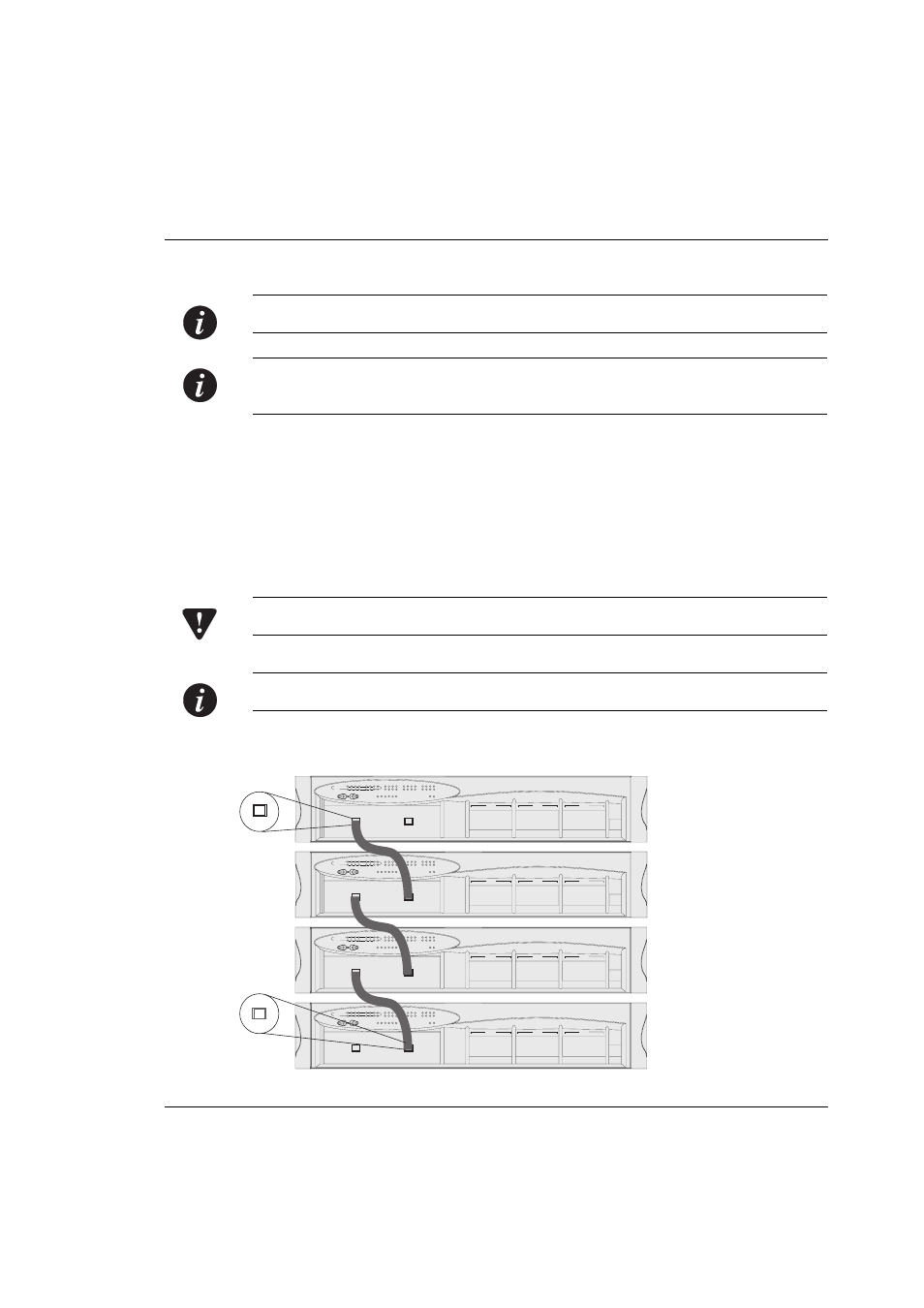

Figure 4.7
