Avaya P130 User’s Guide
15
Chapter 3
Applications
Typical Applications
The Avaya P130 is a low cost workgroup switch that is connected at the edge of the
LAN. It connects end-users and servers and forwards their traffic into the core of the
network.
As shown in the application below, P130 can be connected at the edge of a LAN, or
stacked in a group. The P130 can be connected to the backbone or to the distribution
switch using a LAG or single link connections, that can support LAG or link
redundancy.

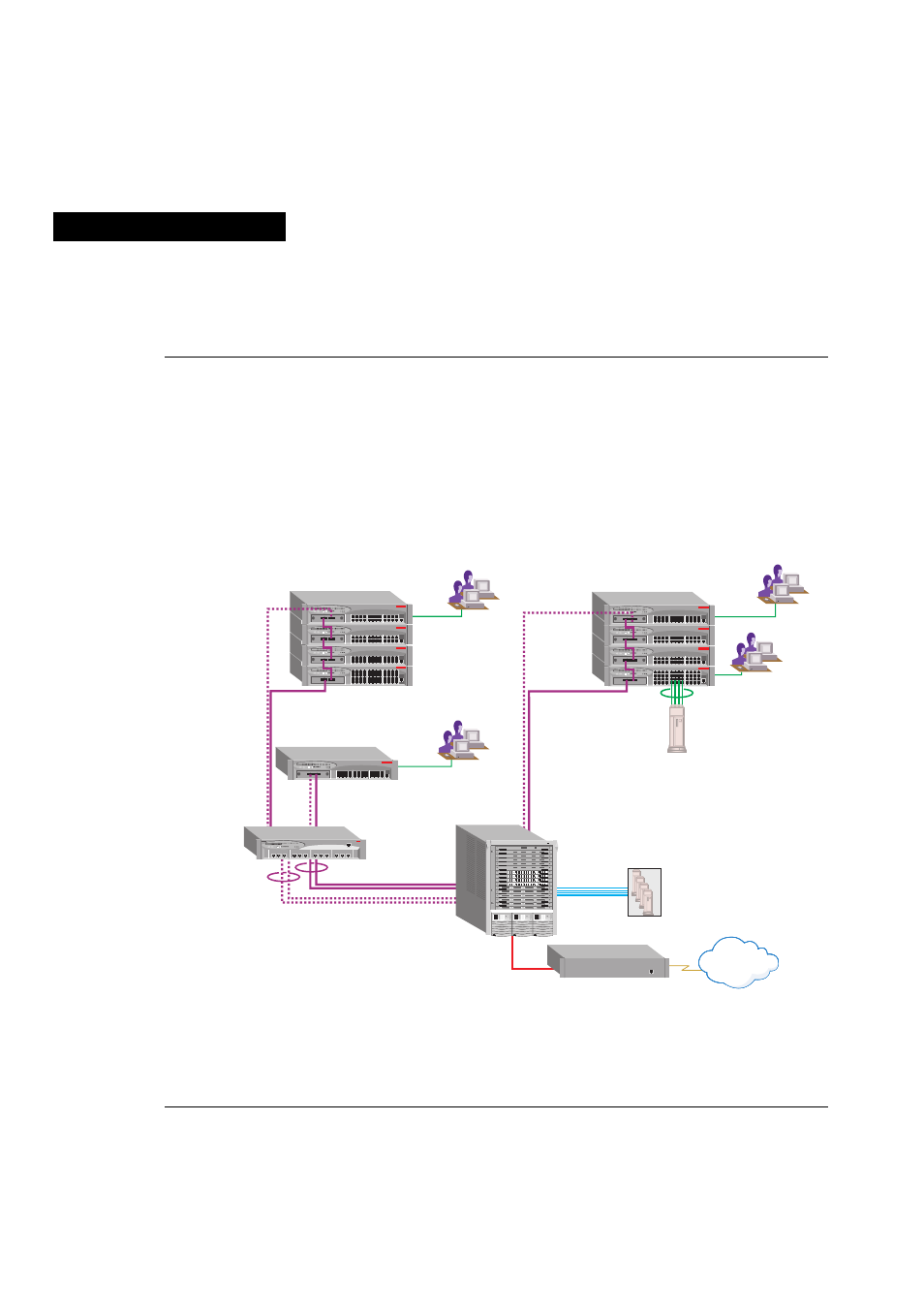

Figure 3.1
The Avaya P130 in a Network
Internet
10/100 Mbps Ethernet
10/100 Mbps Ethernet
10/100 Mbps Ethernet
Avaya P882
Avaya WAN Access
Avaya P130
Avaya P130
Avaya P130
4 x 100 Mbps
Ethernet LAG
GBIC Ethernet
with Redundancy
GBIC Ethernet
with LAG and
Redundancy
10/100 Mbps Ethernet
Server Farm
100 Mbps
Fiber
Ethernet
Avaya P332G-ML
Avaya P880
