Front panel leds, Figure 2.3, P134 front panel leds and switches – Avaya P130 User Manual
Page 26: Table 2.1, Led indications
Chapter 2 P130 Front and Back Panels
12
Avaya P130 User’s Guide

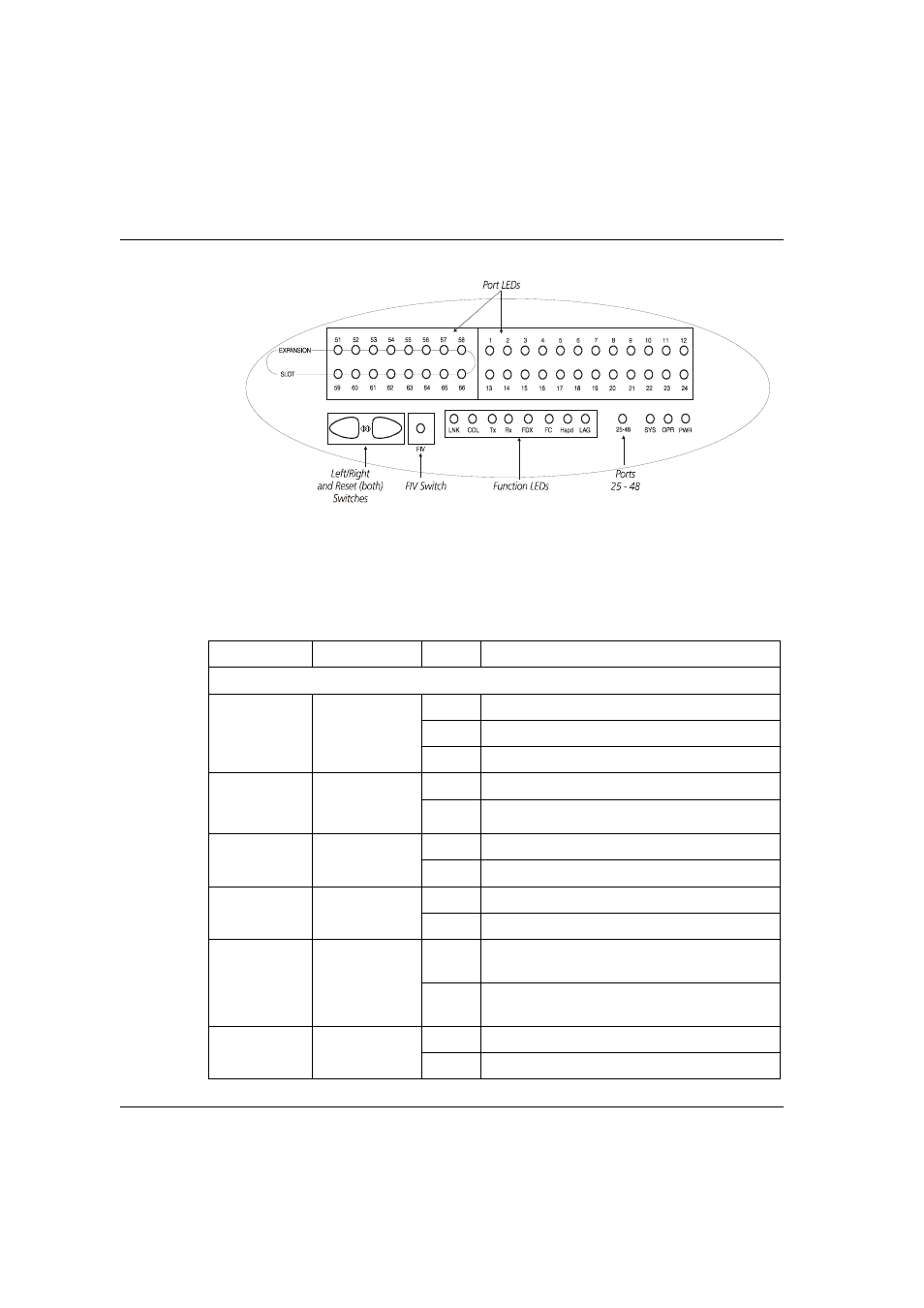

Figure 2.3
P134 Front Panel LEDs and Switches
Front Panel LEDs
Following is a Table describing P130 front panel LEDS, and the meaning of the ON,
OFF and Blink (where applicable) LED status:
Table 2.1
LED Indications
LED
Function
State
Meaning
Module/Function-level
PWR
Power Status
On
Power is up.
Off
Power is down.
Blink
BUPS is activated and main power is down
OPR
CPU
Operational
Status
On
CPU Boot and BIT operations completed
Off
CPU is in Boot or BIT operation
LNK
Link Status
On
Link OK
Off
No Link
COL
Collision
On
Collision occurred on line
Off
There is no collision
25-48(*)
Port Display
Mode
Off
Ports 1-24 are displayed in the Port LEDs, if
selected
On
Ports 25-48 are displayed in the Port LEDs, if
selected
Tx (**)
Tx traffic
On
Packets transmission on this port
Off
No activity on port
