Utility Performance App:
This application monitors the AC line input to the XM3 Power Supply. It detects, displays and
logs four types of AC fault conditions:
1. Outage – If the AC input is below a factory set threshold, an outage condition is recorded.
2. Sag – If the AC input exists but is below a factory set threshold, a line sag condition is
recorded.
3. Surge – If the AC input exceeds a factory set threshold, a line overvoltage or surge
condition is recorded.
4. Frequency – If the AC line frequency exceeds the normally defined operating range, a
frequency event is recorded.
Each condition is measured with one second resolution and will not be permanently logged until
the event has ended.

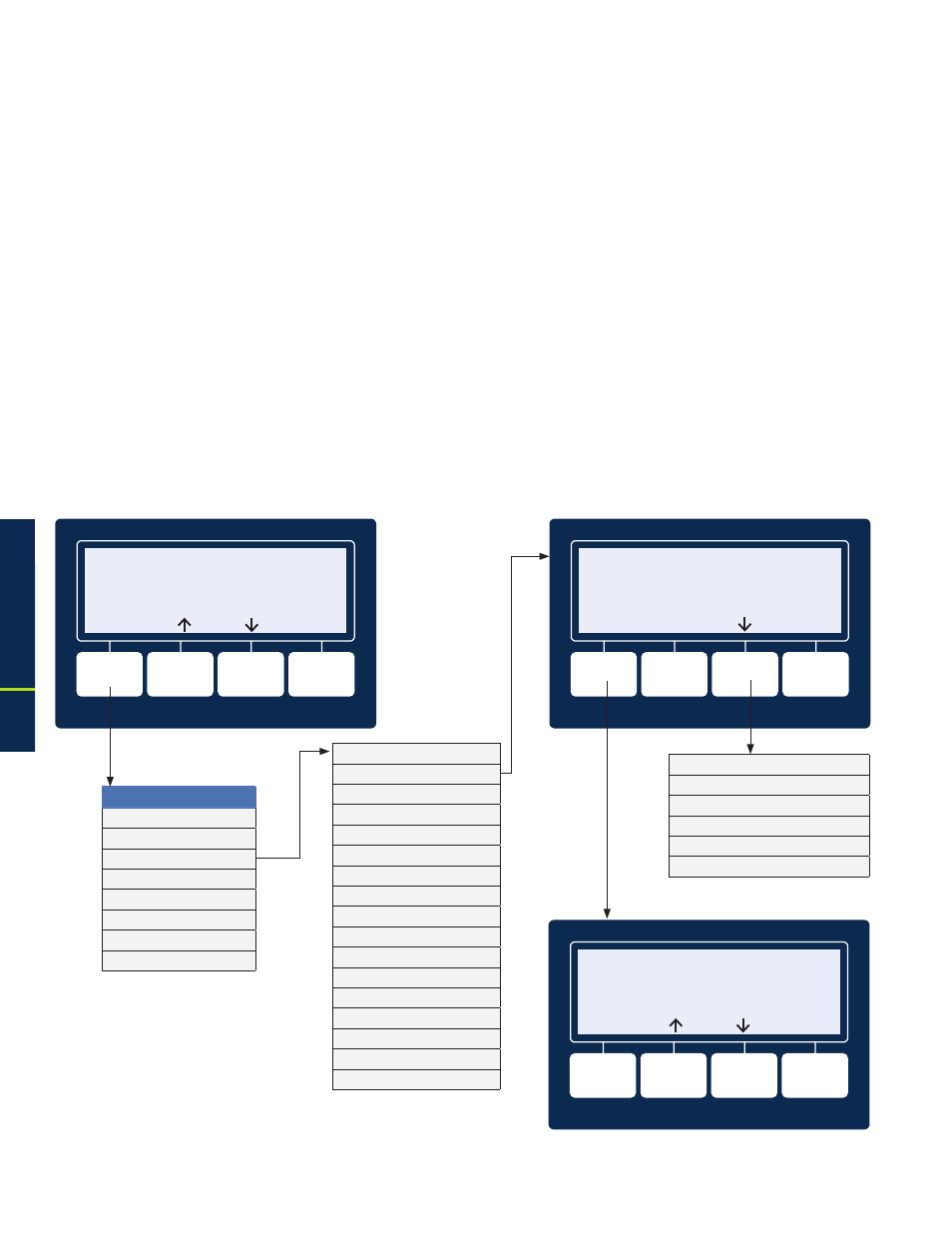

To enter the Utility Performance sub-menu, scroll up or down until UTILITY PERFORMANCE is at
the top of the scroll area.
3.4
AlphaAPPs Overview, continued
AlphaAPP
V1.05.0
U
TILITY PERFORMANCE
EVENT HISTORY
ENTR
ESC
APPS TECH ID SCREEN
ENTER TECH ID: 0
BATTERY HISTORY
UTILITY PERFORMANCE
EVENT HISTORY
CONFIG HISTORY
APPS CONFIG
BATTERY HEALTH
BATTERY EST RUNTIME
Press ENTR to access the
UTILITY PERFORMANCE
sub-menu
O
UTAGE IN PROGRESS
START TIME
23:52
DURATION
12M 13S
ENTR
ESC
OUTAGE 24 HR HISTORY
EVENTS 2, AVG 2M
MIN 1M , MAX 3M
OUTAGE TOTAL HISTORY
EVENTS 5 = 35 M
MIN 1M, MAX 10M
OUTAGE LOG
DATE/TIME/DURATION
03/19/11 22:35
99M
ESC
UTILITY PERFORMANCE
OUTAGES
OUTAGE 24 HOUR HISTORY
EVENTS 0, AVG 0
MIN 0, MAX 0
SAGS
SAG 24 HOUR HISTORY
EVENTS 0, AVG 0
MIN 0, MAX 0
SURGES
SURGE 24 HOUR HISTORY
EVENTS 0, AVG 0
MIN 0, MAX 0
FREQ
FREQ 24 HOUR HISTORY
EVENTS 0, AVG 0
MIN 0, MAX 0
