017-882-B0-001 Rev. C2 (10/2013)
2.0
Installation
2.2
XM3-HP Start-Up Procedure, continued
2.2.9 Local Verification of DOCSIS Transponder
2.0
Installation, continued
To confirm successful hardware installation before leaving the installation site, verify network
connectivity and correct hardware interconnection.
The DS and REG LEDs on the front of the DSM3 Series should be ON solid green. This indicates
successful registration with the headend. In addition, the RF LED should also be ON solid green indi-
cating proper RF power levels and the ALM/RDY LED should be blinking green for normal operation.
With the DSM3 Series used in conjunction with the XM3-HP Power Supply, network connectivity can
be verified via the COMM menu on the XM3 Smart Display. Figure 2-28 provides a list of parameters
available on the XM3 Smart Display populated with sample values.
COMM - GENERAL
COMM - EXTENDED
COMM - DIAGNOSITCS
ENTR
ESC
COMM - GENERAL
CM MAC ADDRESS
00:90:EA:A0:04:99
ESC
COMM - EXTENDED
DSM MODEL/CONFIG
DSM3x CW - 8B
ESC
COMM - DIAGNOSTICS
CABLE MODEM STATUS
Operational
ESC
COMM GENERAL
CM MAC ADDRESS
00:90:EA:A0:04:99
CM IP ADDRESS
192.196.203.101
CM IPV6 ADR PREFIX*
2001:123:456:789
CM IPV6 ADR POSTFIX*
111:222:333:3434
CPE MAC ADDRESS**
00:90:EA:A0:04:9A
CPE IP ADDRESS**
192.168.200.100
CM RECEIVE POWER
-12.9dBmV
CM TRANSMIT POWER
34.5dBmV
DOWNSTREAM SNR
33.8dB
COMM - EXTENDED
DSM MODEL/CONFIG
DSM3X CW-8B
DSM FIRMWARE VERSION
4.4.9.0_03.02_NA
SYSTEM NAME
ABC123 CABLE
SYSTEM CONTACT
JOHN DOE
SYSTEM LOCATION
123 BAKERVIEW
COMMON LOGICAL ID
12345-3767 ALPHAWAY
DOCSIS CONFIG FILE
ALPHA_DSM3.CM
DSM SERIAL NUMBER
A00499
SYSTEM DEVICES 3-7*
IPU-1 SAG-1 DOC-1
SYSTEM DEVICES 6-7*
XM3-1 APP-1 BTQ-1
SYSTEM DEVICES 7-7*
UTL-1
CABLEWARE SERVER IP
192.168.200.151
COMM - DIAGNOSTICS
CABLE MODEM STATUS
OPERATIONAL
SYSTEM UPTIME
3 DAYS 05H:16M:59S
DOWNSTREAM FREQUENCY
300.000 MHZ
DOWN MODULATION TYPE
256 QAM
UPSTREAM FREQUENCY
15.000 MHZ
T3 TIMEOUTS
80360
T4 TIMEOUTS
51
CODEWORD ERROR RATIO
8.20%
MICROREFLECTIONS
-5 DBC
CM RESETS
10
CM LOST SYNCS
5
LAST SNMP QUERY
Date/Time
COMM-DIAGNOSTICS
CABLE MODEM STATUS
OPERATIONAL
ESC
COMM-EXTENDED
DSM MODEL/CONFIG
DSM3X CW-BB
ESC
*
Menu item available if
DSM3 is provisioned in
IPv6 mode
**
Menu item available if
DSM3 is provisioned in
Dual-IP mode
*
Menu item will populate
for only Cableware
configured units
NOTE: System Device menu items
are internal Alpha diagnostic codes.
The System Devices menu items will
populate based on the option cards
(SAG, APP, DOC) installed and the
number of external devices added to a
power system such as multiple XM3s
and/or AlphaGen.
COMM - FAULT
RF POWER LEVEL FAULT
SEE GENERAL MENU
ESC
NOTE:
COMM-FAULT Menu
appears only if there is no RF
connection or RF interruption
occurs.

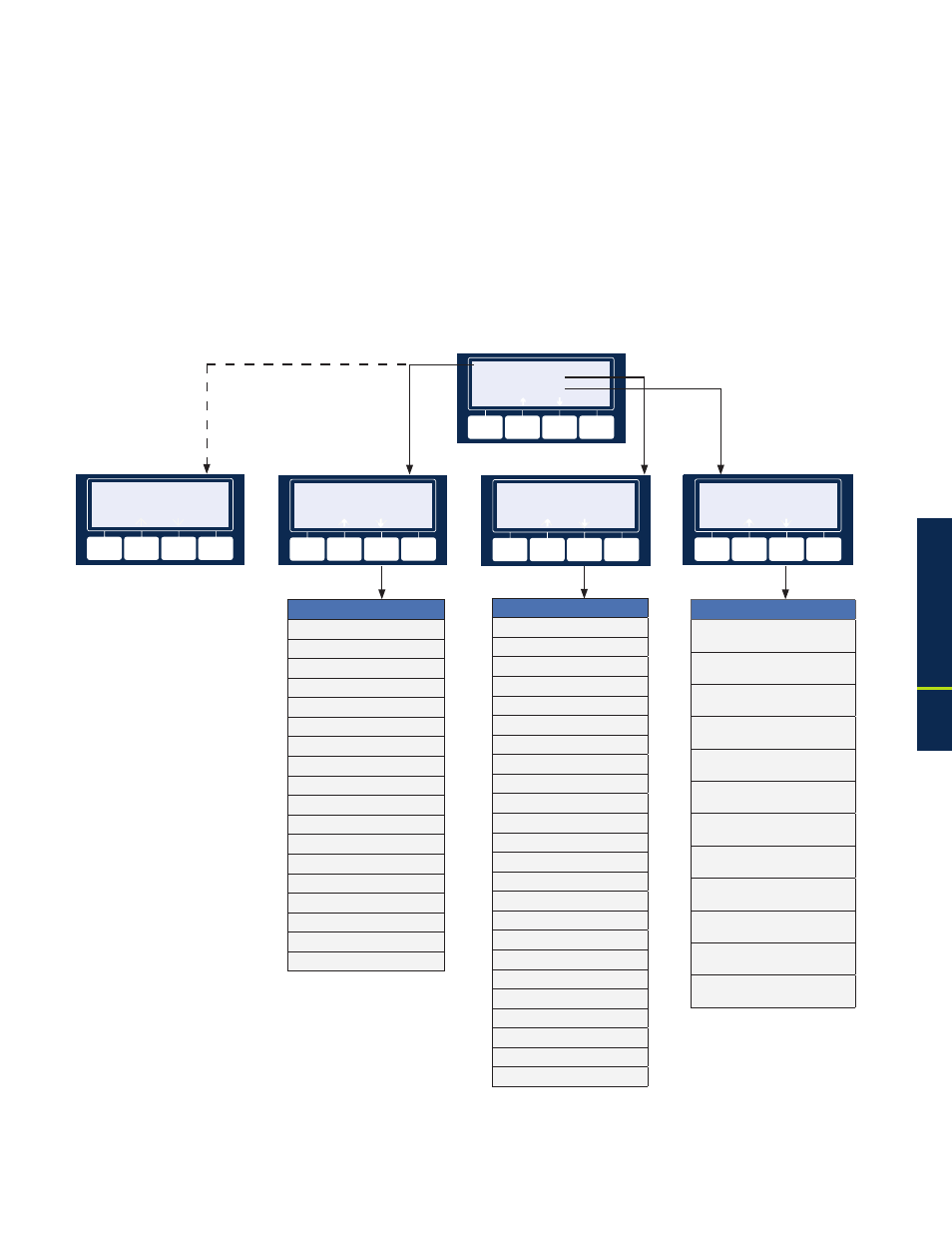

Fig. 2-28, COMM Menu Options
