1.3.3.1 Installing the AlphaDOC, continued

Programmable parameters (with AlphaDOC installed) are:
Channel 1 Overcurrent Limit: The RMS current level that causes the Output 1 protection relay

to trip after a specified delay (overcurrent tolerance period).
Channel 2 Overcurrent Limit: The RMS current level that causes the Output 2 protection relay

to trip after a specified delay (overcurrent tolerance period).
Retry Delay: The time between each attempt to restart an output in the event of an overcurrent

event.
Retry Limit: The number of times the Power Supply attempts to restart an output connection.

Once the RETRY LIMIT is exceeded, standard models attempt to restart the output connection

every 30 minutes. Set this parameter to “zero” to disable the “automatic retry” function.
Overcurrent Tolerance Period (20-9900ms): In the event of an overcurrent episode, the amount

of time an output overcurrent condition is permitted on either output connection. Once this time

expires, the output protection relay disables its output feeder.
Output 1 Reset/Output 2 Reset: This manually resets corresponding tripped output. These are

not displayed if the corresponding output is not tripped.

Read Only AlphaDOC Menu Items:
AlphaDOC Option: Automatically senses and indicates whether the AlphaDOC is installed.
AlphaDOC FW: Firmware version installed in the AlphaDOC.
DOC ##########: Serial number of the AlphaDOC.

Programming any of the above parameters will reset the “trip/retry” counters.

NOTE:

If the optional AlphaDOC is not installed, the values shown under the “AlphaDOC OPTION” line of the

Smart Display are hidden.

NOTE:

1.3.3.2 Programming the AlphaDOC

1.3

Alpha XM3-HP CableUPS Layout, continued
1.3.3 AlphaDOC (PIM), continued

1.0

Introduction, continued

For XM3-910HP and XM3-615CE-HP models, a 5-position terminal

block is included, see Fig. 1-10.

NOTE:

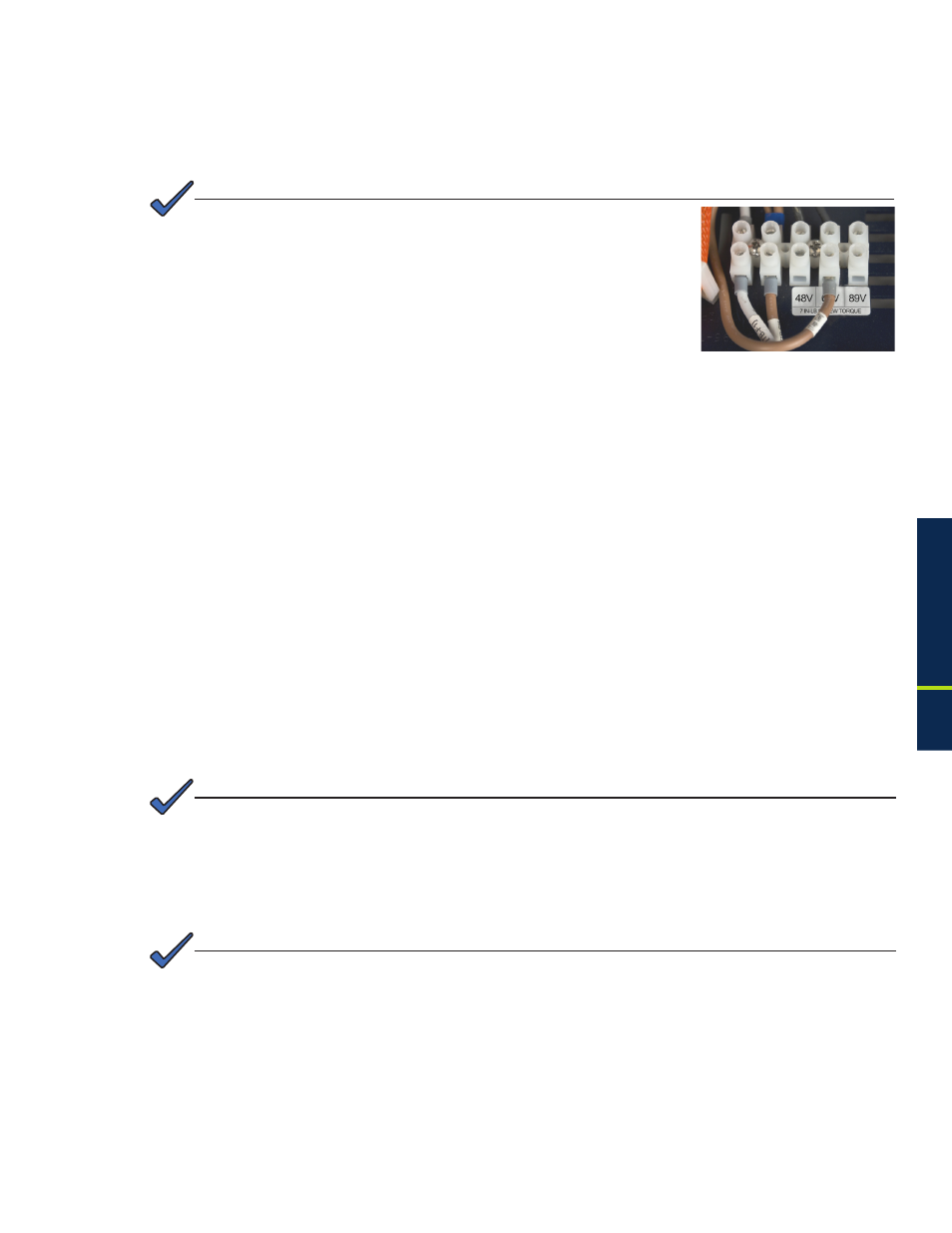

Fig. 1-10, 5-Position Output

Voltage Terminal Block
