3.3.4 Alpha Applications Information and Configuration
XM3-915HP
90V/0.4A
OPERATION NORMAL
OK
PWR
OK
BATT
OK
COMM
OK*
APPS

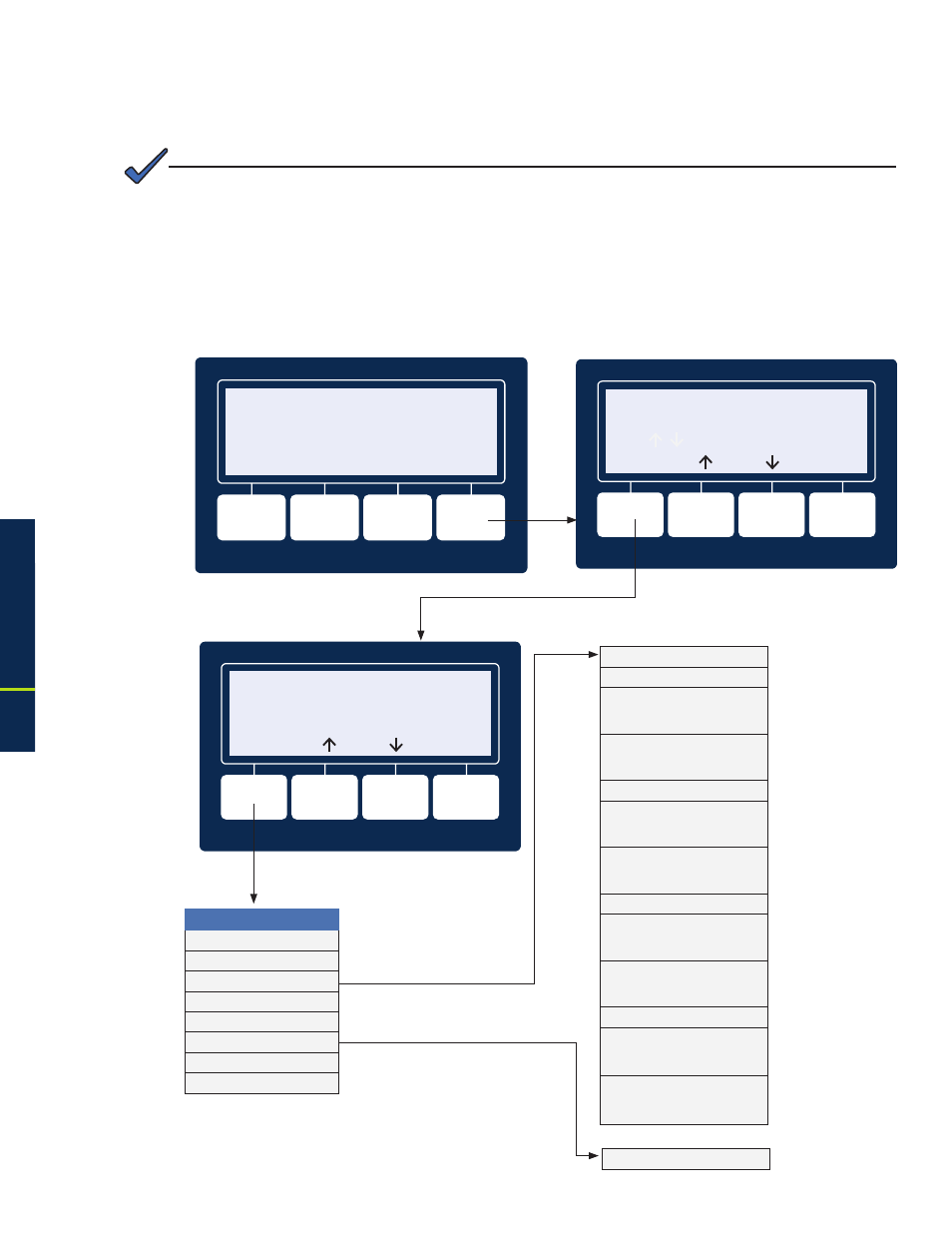

Pressing the OK APPS softkey while in OPERATION NORMAL screen opens the APPS TECH
ID screen. The technician may bypass this screen by pressing ENTR with a number 0 on the
display, or the technician may enter a number using the up and down arrow keys and then
pressing ENTR. If a technician ID is entered, a confirmation screen will appear. Press ENTR
again to commit the value and the APPS menu list will appear.
AlphaAPP*
V1.05.0*
BATTERY HISTORY*
UTILITY PERFORMANCE*
ENTR
ESC
Press ENTR softkey to bypass TECH ID
entry and open the APPS main menu.
Press ENTR to configure APPS functions
AlphaAPP*
V1.05.0
ENTER TECH ID:
606
ADJUST VALUE
ENTR
ESC
UTILITY PERFORMANCE
OUTAGES
OUTAGE 24 HOUR HISTORY
EVENTS 0, AVG 0
MIN 0, MAX 0
OUTAGE TOTAL HISTORY
EVENTS 0 = 0M
MIN 0M, MAX 0M
SAGS
SAG 24 HOUR HISTORY
EVENTS 0, AVG 0
MIN 0, MAX 0
SAG TOTAL HISTORY
EVENTS 0 = 0M
MIN 0M, MAX 0M
SURGES
SURGE 24 HOUR HISTORY
EVENTS 0, AVG 0
MIN 0, MAX 0
SURGE TOTAL HISTORY
EVENTS 0 = 0M
MIN 0M, MAX 0M
FREQ
FREQ 24 HOUR HISTORY
EVENTS 0, AVG 0
MIN 0, MAX 0
FREQ TOTAL HISTORY
EVENTS 0 = 0M
MIN 0M, MAX 0M
3.3
Smart Display Menus, continued
3.0
Operation, continued
SET DATE & TIME
APPS TECH ID SCREEN
ENTER TECH ID: 0
BATTERY HISTORY
UTILITY PERFORMANCE
EVENT HISTORY
CONFIG HISTORY
APPS CONFIG
BATTERY HEALTH
BATTERY EST RUNTIME
If the optional APPS card is not installed, NO APPS will appear on the Smart Display, and the values
shown under the “APPS OPTION” line of the Smart Display are hidden.
NOTE:
*Displayed only if Apps Card is installed
