Installation
2.2 XM3-HP Start-Up Procedure
2.2.1 Parts and Connections
Verify battery voltage, cable color, connection and polarity are correct before proceeding.
WARNING!
Battery Breaker
Battery Connector to Inverter
Negative Terminal to Center Battery
and PTS
Precision Temperature Sensor (PTS)
Smart AlphaGuard Harness
Local Remote Indicator (LRI)
Smart Display
LRI Interface to Inverter
4
3
5
11
8
6
Positive Battery Terminals to Smart
AlphaGuard (3, Red)
11
12
4
1
3
2
5
6
RF Connector to Transponder
Transponder Battery Sense Harness connection
point
13
14
9
Negative Battery Terminal (1, Black)
7
APPS Card
8
Service Power Inserter (SPI)
15
6
6
13
16
9
Alarm Intrusion Tamper Switch
16
Transponder Tamper Switch Connector
17
17
7
Grounded Surge Protector
18
10

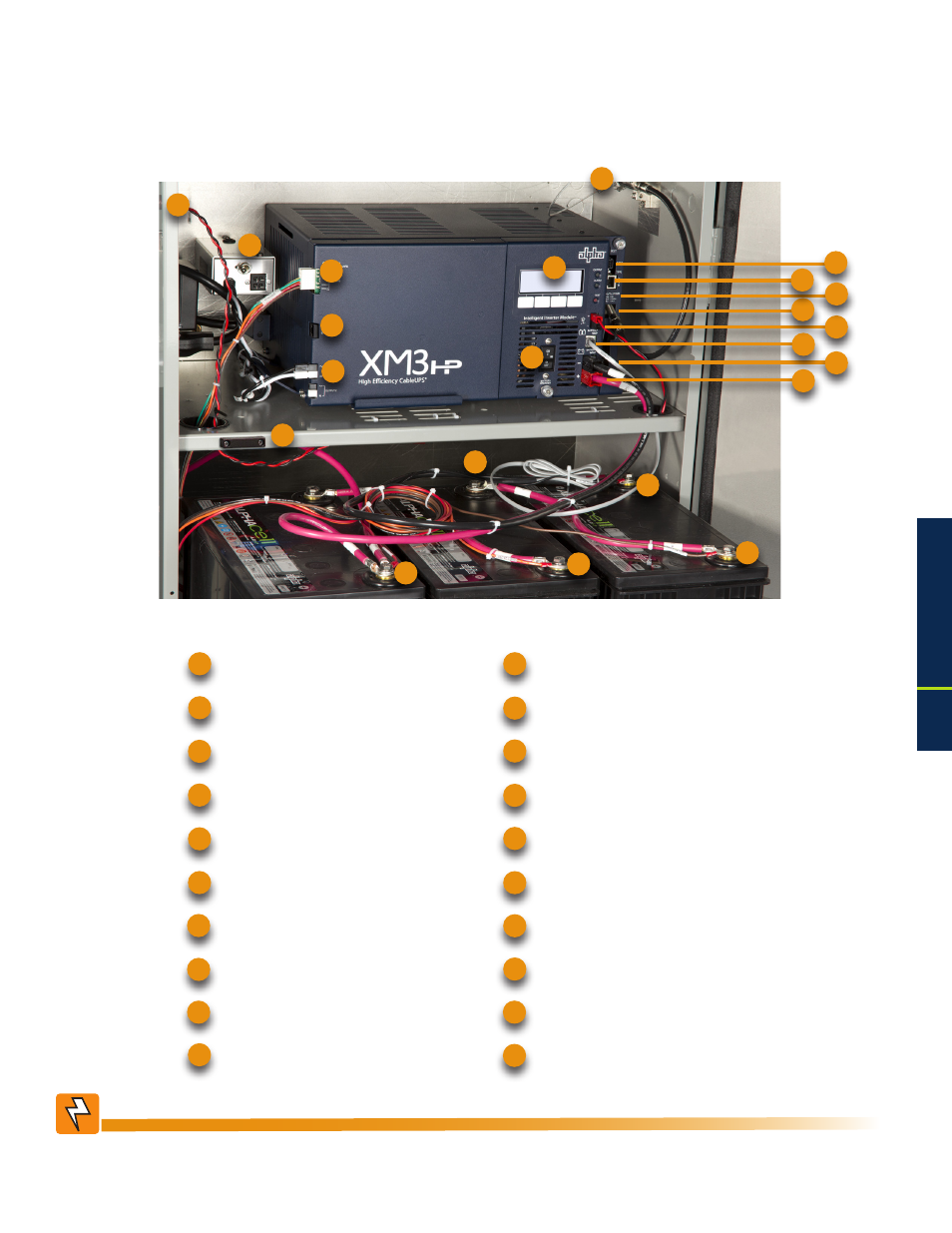

Fig. 2-4, Installation of XM3-HP
2.0
Installation, continued
10
AlphaDOC Dual Output Connectors
Ethernet (Web Page Interface)
Tri-color LED Tx/Rx Power Levels
19
20
1
2
12
15
14
18
19
20
