66 017-882-B0-001 Rev. C2 (10/2013)
3.0
Operation
C OMM - EXTENDED
COMM - DIAGNOSTICS
COMM - GENERAL
ENTR
ESC
COMM-EXTENDED

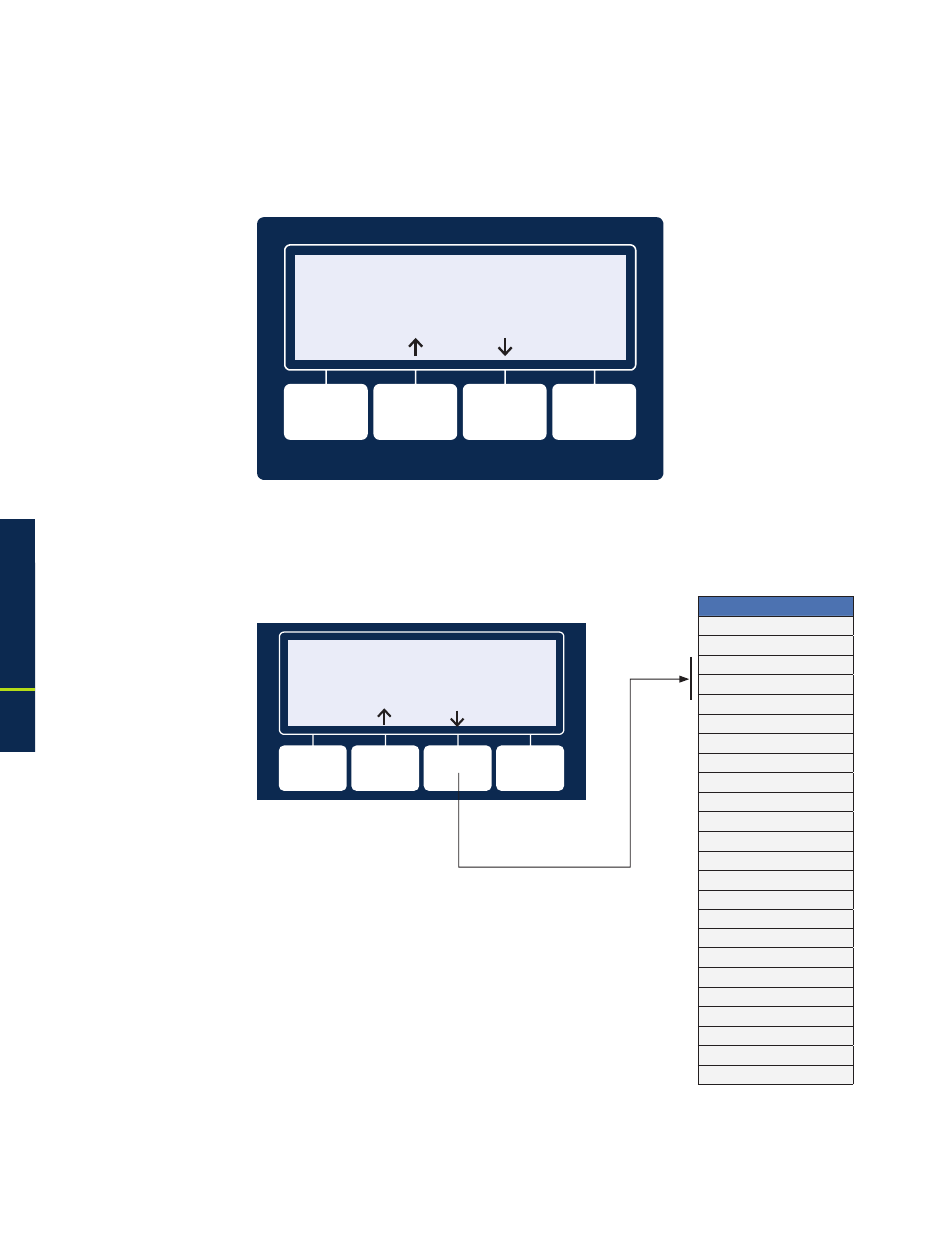

Pressing Enter opens the COMM-EXTENDED menu enabling the operator to
view values for the following parameters. Pressing the up or down arrow softkeys will show
two lines of information for each submenu item.
3.3.3 COMM Menus, continued
Pressing the down arrow softkey to move COMM-EXTENDED (the first letter of the top line
will blink indicating it is the active line) to the top line and press ENTR to open the COMM-
EXTENDED menu.
COMM-EXTENDED
DSM MODEL/CONFIG
DSM3X CW-8B
ESC
Press "Down" arrow softkey to
view next item(s) in menu.
3.3 Smart Display Menus, continued
3.0 Operation, continued
* User Input values are
examples only.
** Menu item will only
populate for Cableware
configured units
COMM - EXTENDED
DSM MODEL/CONFIG
DSM3X CW-8B
DSM FIRMWARE VERSION
4.4.9.0_03.02_NA
SYSTEM NAME *
ABC123 CABLE
SYSTEM CONTACT *
JOHN DOE
SYSTEM LOCATION *
123 BAKERVIEW
COMMON LOGICAL ID
12345-3767 ALPHAWAY
DOCSIS CONFIG FILE
ALPHA_DSM3.CM
DSM SERIAL NUMBER
A00499
SYSTEM DEVICES 3/7
IPU-1 SAG-1 DOC-1
SYSTEM DEVICES 6/7
XM3-1 APP-1 BTQ-1
SYSTEM DEVICES 7/7
UTL-1
CABLEWARE SERVER IP**
192.168.200.151
