Communications grounding – Alpha Technologies XM3-HP Series - Technical Manual User Manual
Page 15

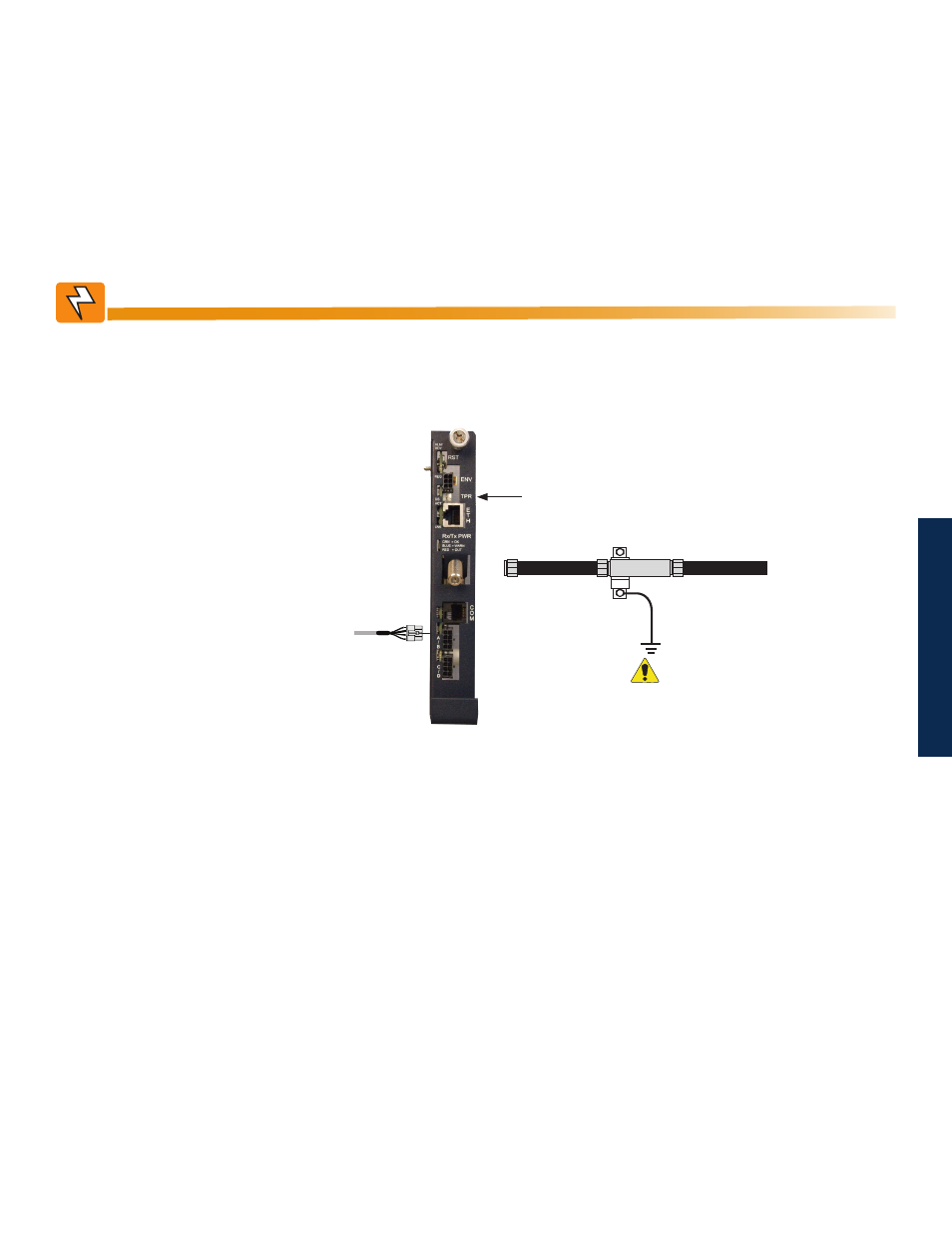

Communications Grounding
For systems using an embedded transponder, the grounding connection is typically made either through a separate chassis ground
block bonded to the enclosure or by means of the internal mounting hardware which bonds the transponder through the CableUPS.
Please refer to the appropriate communications product manual for installation procedures.
For communication cables, Alpha strongly recommends the use of a surge arresting device electrically bonded to the Alpha Enclosure.
Grounding and Earth Connection Notes, continued
Low impedance grounding is
mandatory for personnel safety and critical for the proper
operation of the cable system
.
WARNING!
To Battery Sense Wire Harnesses
Tamper Switch Connector
Required
Grounded Surge Protector
(Alpha p/n 162-028-10 or equivalent)
RF Cable to Headend
15
017-882-B0-001 Rev. C2 (10/2013)
