3.0
Operation
3.4.1 Display Structure, continued

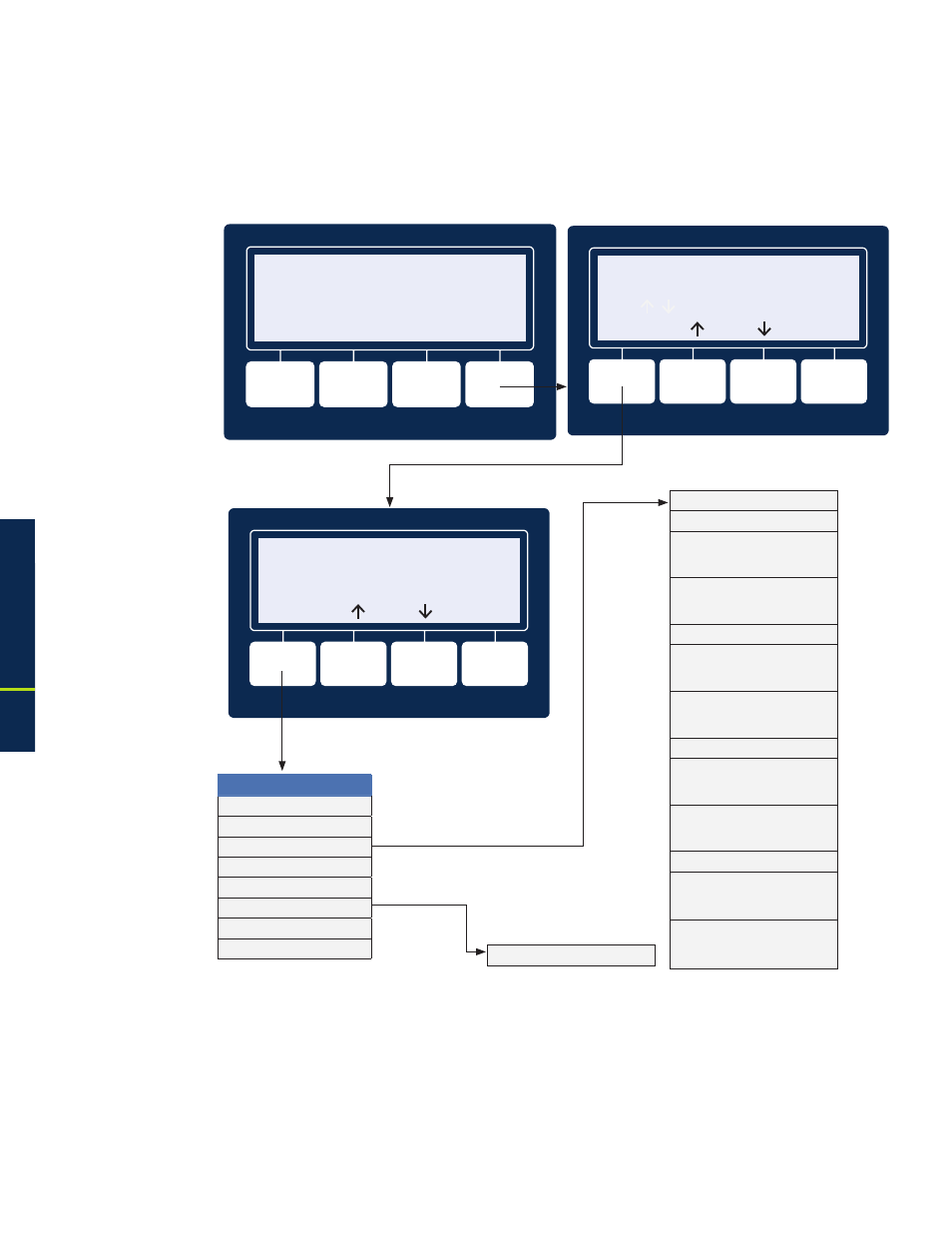

Main APP Menu Screen:
The main menu screen can scroll up or down using the arrow softkeys. The flashing character
(shown in orange) denotes which sub-menu will be selected when ENTR is pressed.
XM3-915-HP
90V/0.4A
OPERATION NORMAL
OK
PWR
OK
BATT
OK
COMM
OK
APPS
AlphaAPP
V1.05.0
B
ATTERY HISTORY
UTILITY PERFORMANCE
ENTR
ESC
Press ENTR softkey to bypass TECH ID
entry and open the APPS main menu.
Press ENTR to configure APPS functions
AlphaAPP
V1.05.0
ENTER TECH ID
:
0
ADJUST VALUE
ENTR
ESC
The date and time can be set in the APPS CONFIG menu. The date and time are normally set by
a time server at the headend. In the event no time server is present, the APPS card will find the
last event log time stamp and use that date and time as clock initial value.
If the date and time needs to be manually entered, use the arrow softkeys to select the digit and
use the ENTR to shift fields.
When the “OK” is flashing, press ENTR one more time to save the value. Press ESC if no
changes to the date or time are desired.
3.4
AlphaAPPs Overview, continued
APPS TECH ID SCREEN
ENTER TECH ID: 0
BATTERY HISTORY
UTILITY PERFORMANCE
EVENT HISTORY
CONFIG HISTORY
APPS CONFIG
BATTERY HEALTH
BATTERY EST RUNTIME
3.0
Operation, continued
SET DATE & TIME
UTILITY PERFORMANCE
OUTAGES
OUTAGE 24 HOUR HISTORY
EVENTS 0, AVG 0
MIN 0, MAX 0
OUTAGE TOTAL HISTORY
EVENTS 0 = 0M
MIN 0M, MAX 0M
SAGS
SAG 24 HOUR HISTORY
EVENTS 0, AVG 0
MIN 0, MAX 0
SAG TOTAL HISTORY
EVENTS 0 = 0M
MIN 0M, MAX 0M
SURGES
SURGE 24 HOUR HISTORY
EVENTS 0, AVG 0
MIN 0, MAX 0
SURGE TOTAL HISTORY
EVENTS 0 = 0M
MIN 0M, MAX 0M
FREQ
FREQ 24 HOUR HISTORY
EVENTS 0, AVG 0
MIN 0, MAX 0
FREQ TOTAL HISTORY
EVENTS 0 = 0M
MIN 0M, MAX 0M
