20

017-882-B0-001 Rev. C2 (10/2013)

1.0

Introduction

1.2

Theory of Operation, continued
1.2.3 Charger Modes of Operation, continued

4-Stage Battery Charger (BULK/ACCEPT/REFRESH/FLOAT):

This preset value is applied to AlphaCell GXL batteries when selected in the Smart Display Menu.

A 30-minute REFRESH charge is added, after BULK and ACCEPT states, before dropping down

to FLOAT state, when the batteries are discharged more than 30% and it has been more than 30

days since the last REFRESH charge.

A manual REFRESH charge mode is recommended to be applied to all new batteries upon

installation. This mode “boosts” the individual cell voltage of batteries that may have been in

storage before they were placed on permanent FLOAT. Refresh can be initiated manually via

menu selection or automatically when the battery date code is updated (See

Section 3.3.2,

Battery Information and Configuration for further instructions). The REFRESH charge is a one-

time, 24-hour charge to raise individual cell voltage to 2.45VDC, and may bypass the BULK and

ACCEPT states if the batteries are fully charged. The batteries are temperature-compensated at

-0.005VDC per cell per degree C to ensure safe battery cell voltage and maximize battery life.

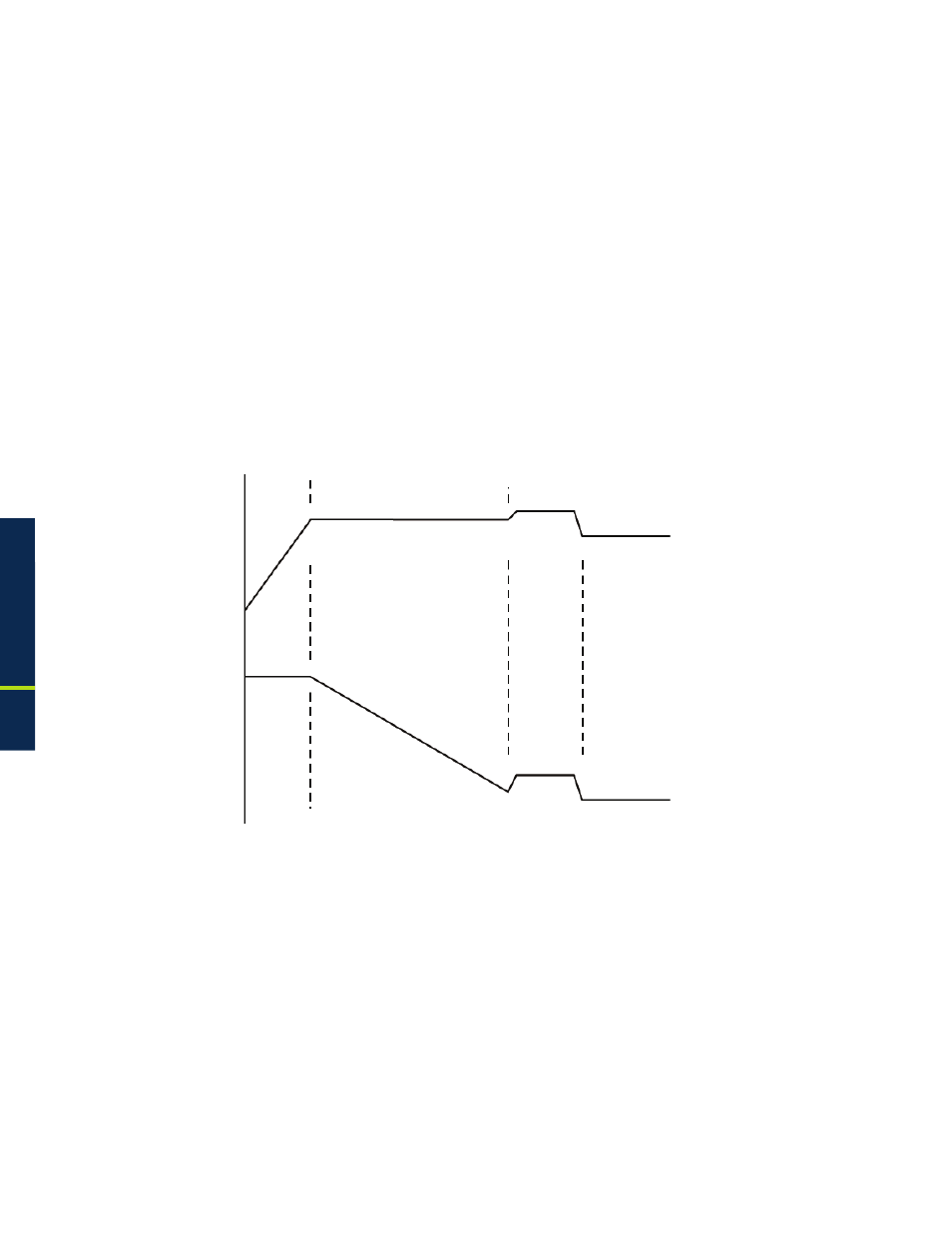

Fig. 1-3, 4-Stage Charger Modes

BULK

Constant

Current Mode

(10A max) until

battery voltage

reaches the

ACCEPT level

(2.40V/cell)

ACCEPT

Constant Voltage Mode

(2.40V/cell) until battery

current demand drops

below .5A or time out

based on 4 minutes per

Ah battery capacity

FLOAT

Constant

Voltage

Mode

(2.27V/cell)

REFRESH

Constant

Voltage Mode

(2.45V/cell)

for 30 minutes

Battery Voltage

Battery Current
