— PUMP N Menu continued —
TYPE “READ ONLY”
Here is the PUMP N menu.
Press the M2 key to display the TYPE
PUMP N “READ ONLY” field ....
In this example, type ‘VFC’ is displayed ....
There are five types of controllers-
VFC, SC, SCIII, SCI and VFCIV.
— Press the CANCEL key to return to the PUMP N menu —
— Proceed to the next menu - GROUP —
GROUP “READ ONLY”
Here is the PUMP N menu.
Press the M3 key to display the GROUP
PUMP N “READ ONLY” field ....
In this example, group “2” is displayed ....
The group value may be 1 to 4. This menu
item defines which group or TS-TPI port
number is attached to which pump. A value
of 1, 2, 3 or 4 will indicate that the controller
is on that port. Any Line Leak Detectors will
be on Group 1, therefore the first pump group
is 2.
— Press the CANCEL key to return to the PUMP N menu —
— Proceed to the next menu - ADDRESS —

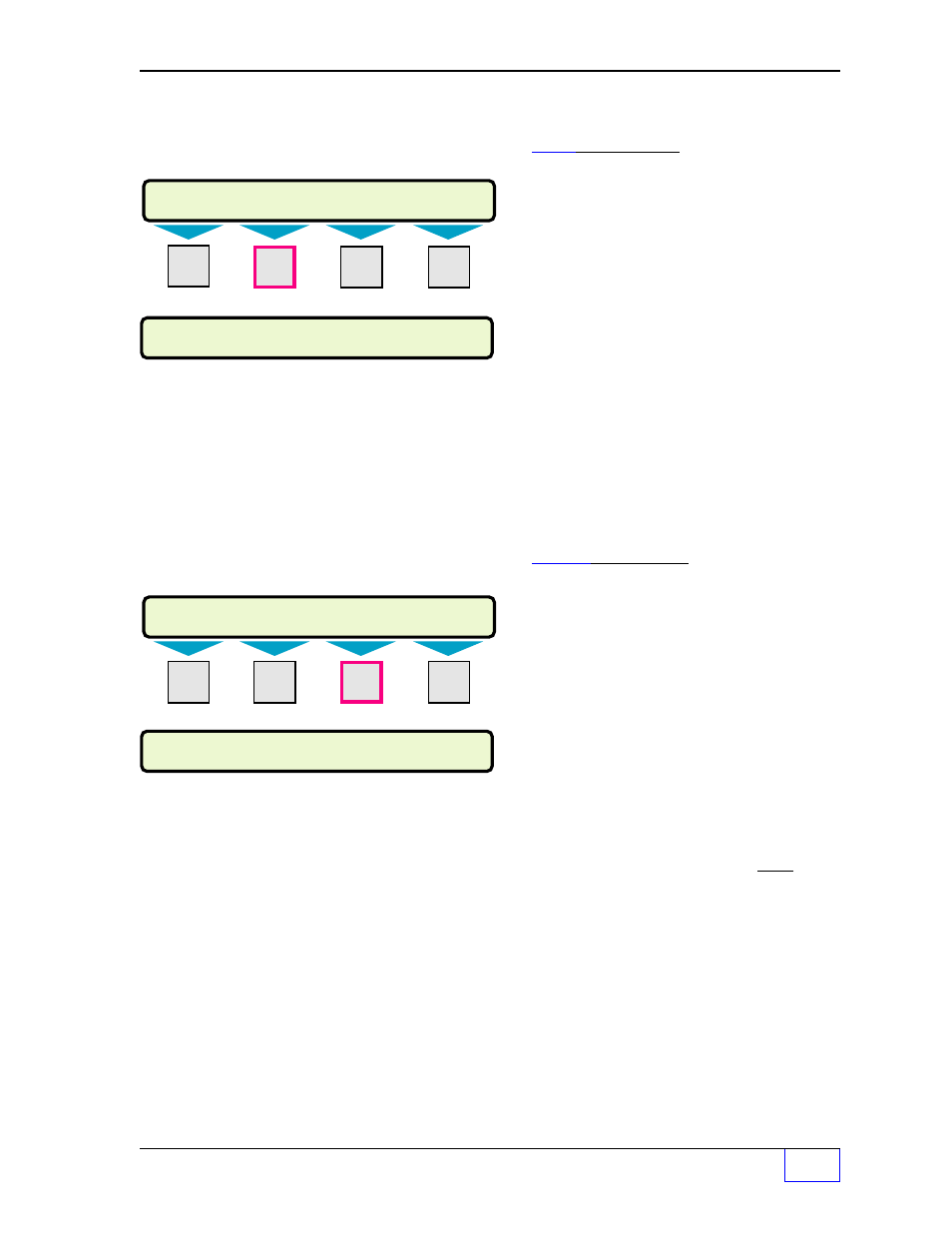

GROUP PUMP 1 READ ONLY
2
TYPE PUMP N READ ONLY
V F C
PUMP N (MORE)
NAME T Y P E GROUP ADDRESS
M1 M2 M3 M4
PUMP N (MORE)
NAME TYPE G R O U P ADDRESS
M1 M2 M3 M4
