Constructing a custom user source format overview
There are four basic steps to create a custom user source format:
1.
Configure a source to display the unrecognized source format and connect it to the
VN‑Matrix encoder.
2.
Create a custom input mode to match the resolution and timing of the source.
3.
Verify that the encoder can automatically detect (auto‑detect) the source format created
in step 2.
4.
Fine‑tune the custom input mode.
NOTE: After the custom input mode is created for the VNE 250, you may need to
create a custom output mode to match.
TIPS: It is recommended that:
•
When creating a custom input mode, monitors are connected to both the
video loop‑out of the VNE 250 and the video output of the VND 250.
•
The same monitors be used in the final system configuration.
Constructing a custom user source format
1.
From the
Device List
, select the required encoder.
2.
When the
Device
tab opens, click on the
videoPort0
link.
3.
When the
Configure
tab opens, click the
Video Setup
tab.
1
1
2
2
3
3
4
4

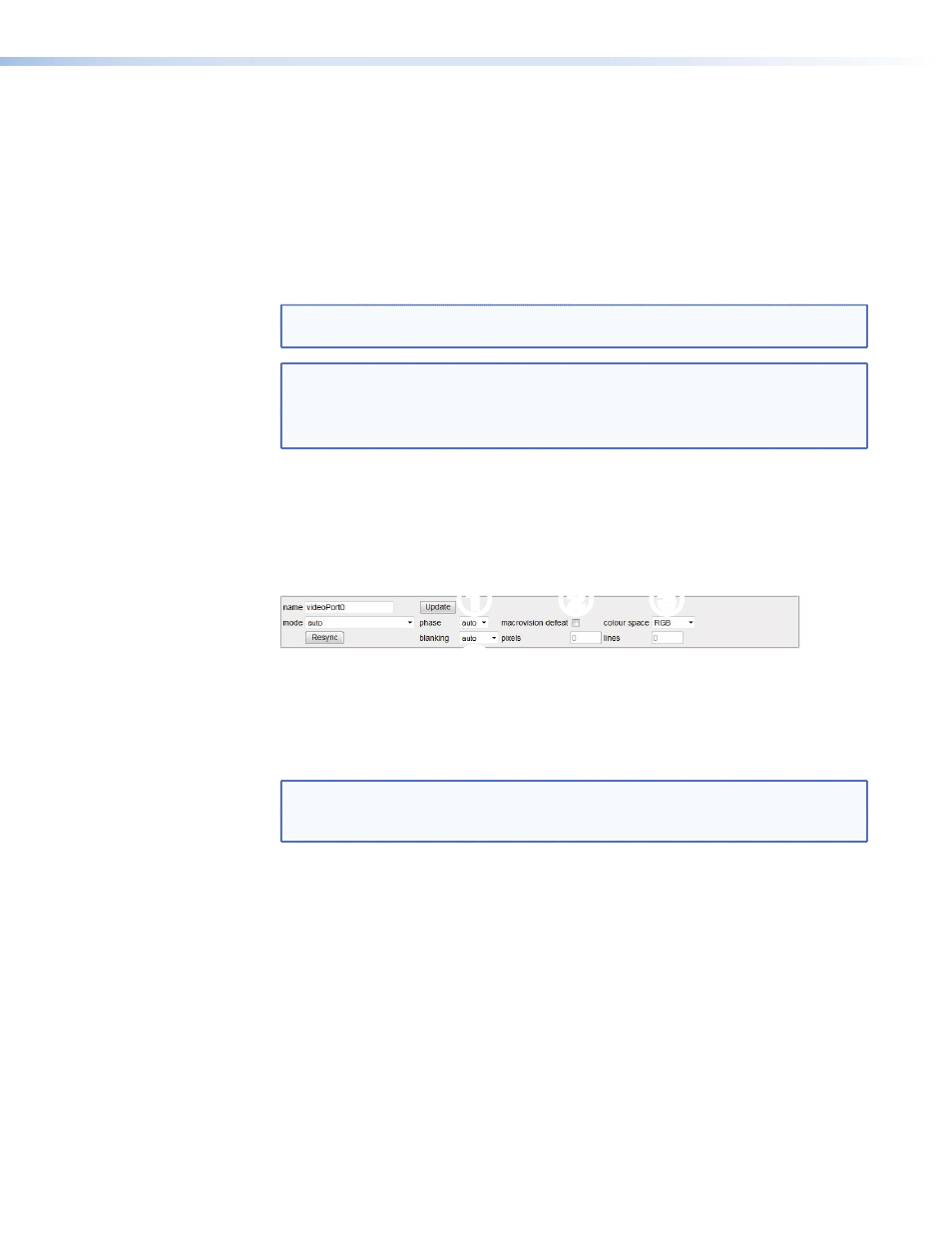

Figure 67.
Constructing a Custom User Source Format
4.
Set the
phase
(see figure 67,
1
),
macrovision
defeat
(see figure 67,
2
), and
color
space
(see figure 67,
3
) settings as desired (see
NOTE: The above values are not saved as part of the source format; they are
global settings saved for the mode selected in the mode drop‑down list. If auto is
selected from the mode drop‑down list, the settings apply to any detected mode.
5.
Set
blanking
(see figure 67,
4
) to
auto
.
VNM 250 • Configuration with the VNM 250 GUI
80
