Configuring Encoder Audio
1.
Click on the
Device
tab.
2.
In the
Configuration
panel, click on
audioPort0
(see figure 52,
1
):
1
1

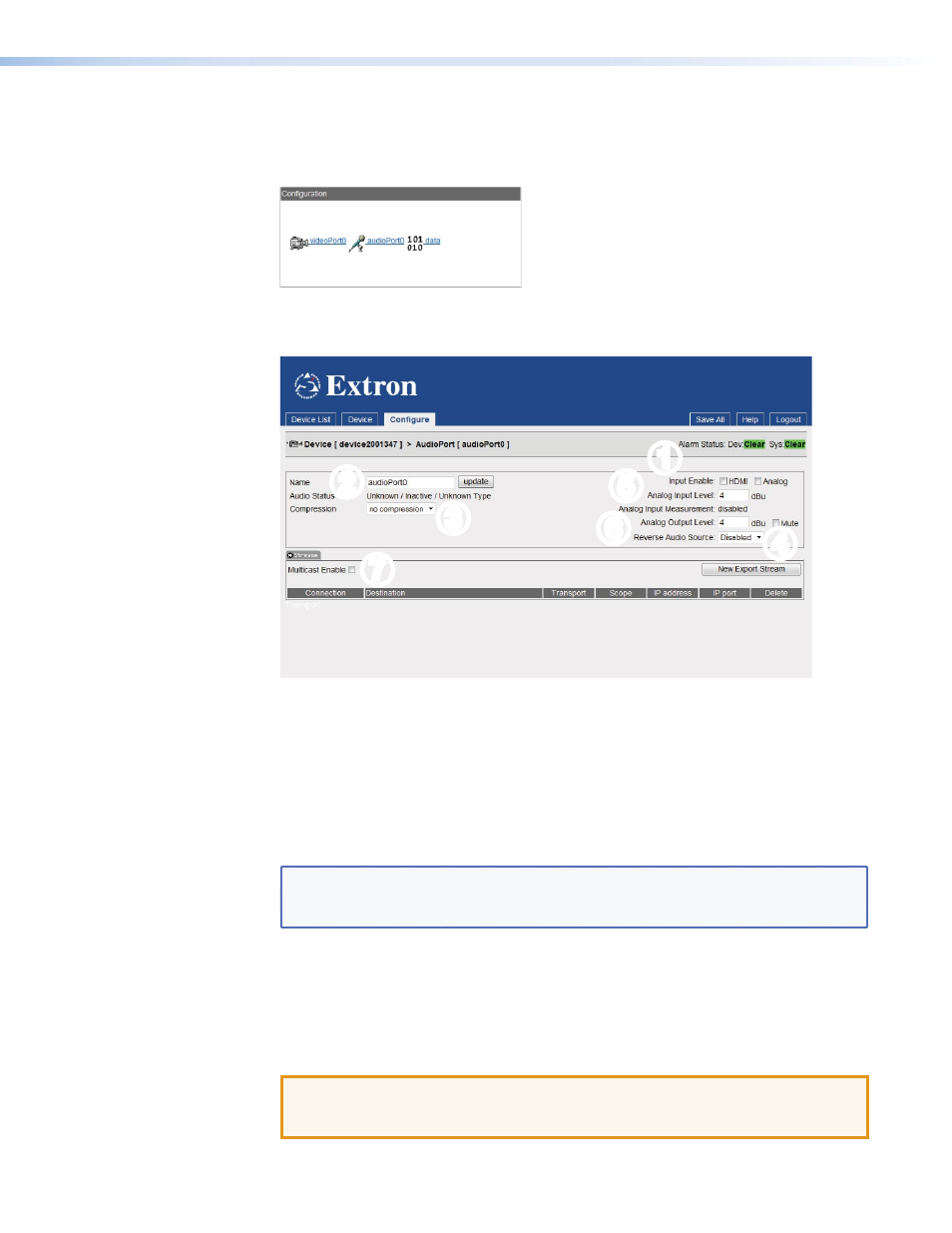

Figure 52.
Device Configuration Panel
The
Configure
tab opens with audio options.
1
1
2
2
3
3
4
4
5
5
6
6
7
7
Figure 53.
Configure Tab (Audio Options)
3.
Select the audio source by checking either the
HDMI
or
Analog
box (see figure 53,
1
).
4.
Ensure the
Audio
Status
shows a valid audio source type (see figure 53,
2
). If it does
not, see
5.
Ensure that
Compression
is set to
no
compression
(see figure 53,
3
).
6.
If a reverse audio signal is required, select a source from the
Reverse
Audio
Source
drop‑down list (see figure 53,
4
).
NOTE: This menu is only populated when a program audio stream is enabled and
connected on the corresponding decoder, which must also have return audio
enabled.
7.
Set the Analog program audio input level (see figure 53,
5
) and the return audio output
level (see figure 53,
6
) to obtain an undistorted signal with optimum signal to noise
Analog input level — program audio
on page 55).
8.
If RTP multicast source streaming is required, select
Multicast
Enable
(see
figure 53,
7
). If RTP unicast is required, ensure the box is deselected.
ATTENTION: Use the same transport type for all streams. Check that the
Multicast
Enable
setting on the data tab is the same as that on the video (see
on page 67).
