Configuring Encoder Data
1. Click on the Device tab.
2. In the Configuration panel, click on data (see figure 54, 1 ):
1 1
Figure 54. Device Configuration Panel
The Configure tab opens with data options.
1 1
2 2
3 3
4 4

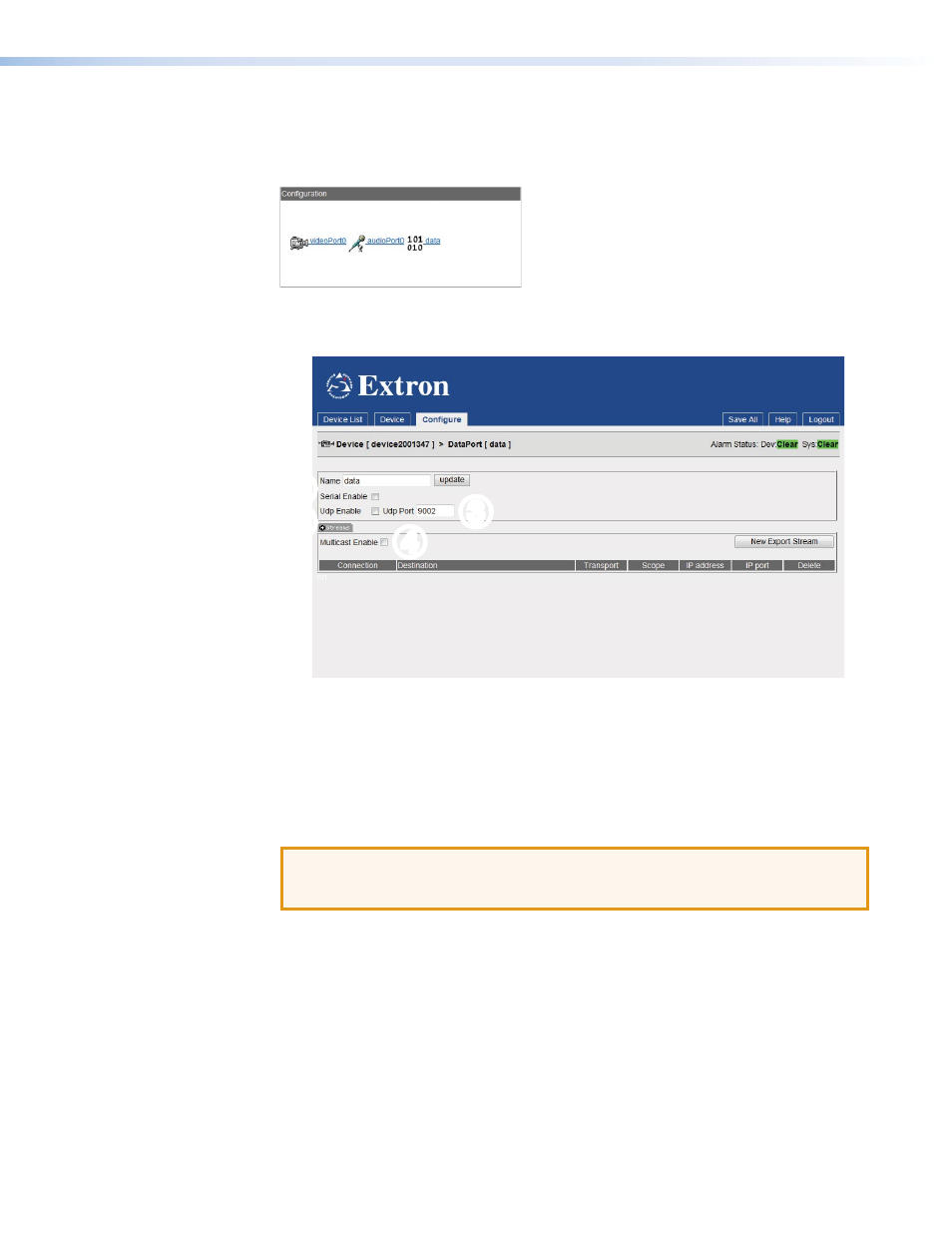

Figure 55. Configure Tab (Data Options)
3. If required, check the Serial Enable box (see figure 55, 1 ).
4. If required, check the UDP Enable box (see figure 55, 2 ).
5. If required, enter a value for the UDP port number (see figure 55, 3 ).
6. If RTP multicast source streaming is required, select the Multicast Enable box (see
figure 5, 4 ). If RTP unicast is required, ensure the box is deselected.
ATTENTION: Use the same transport type for all streams. Check that the
Multicast Enable setting on the data tab is the same as that on the video (see
step 14 on page 67).
7. Click the Save All tab.
8. Encoder setup is now complete. Repeat this procedure for each encoder in the system.
