Configuring the Decoder Data
1 1
2 2

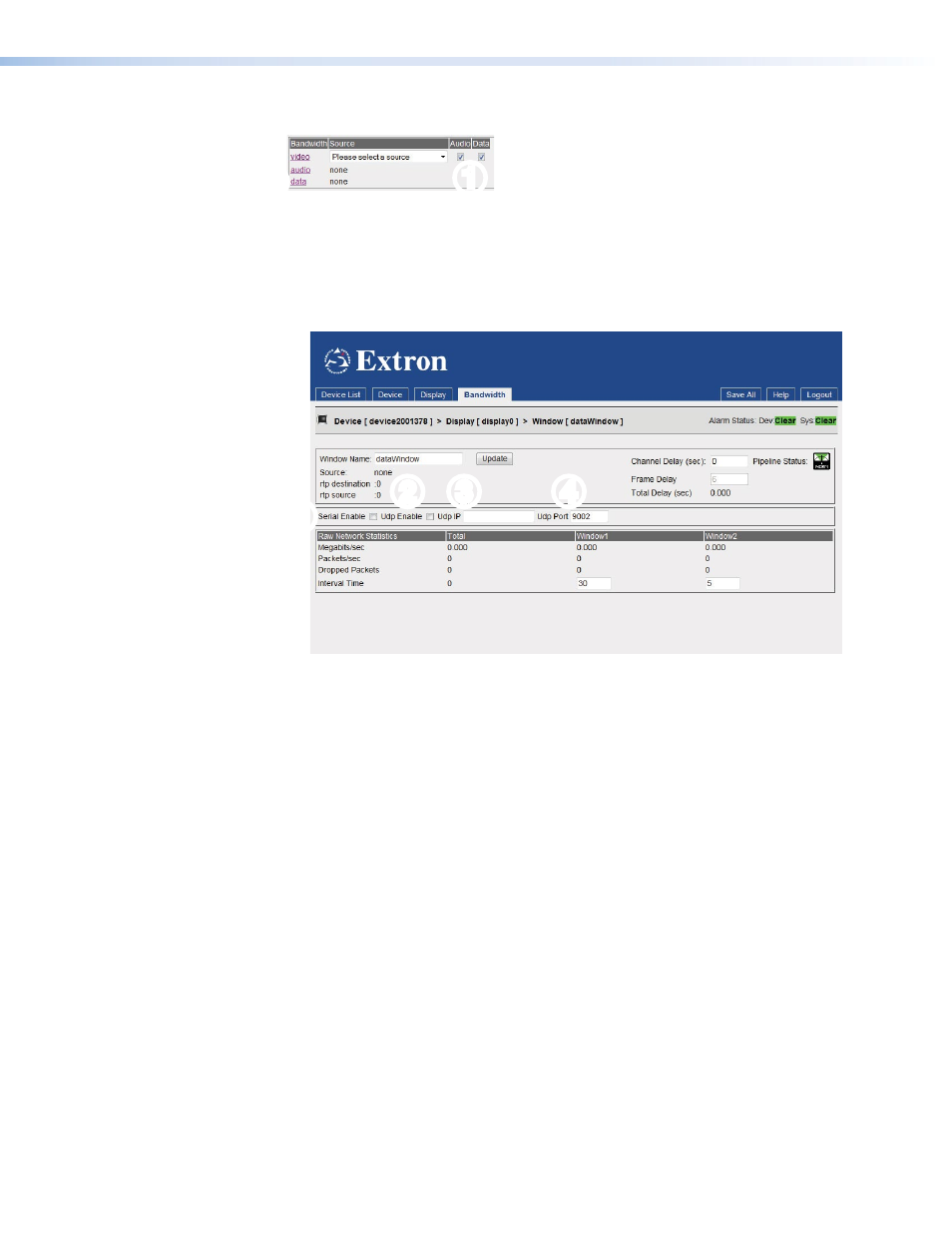

Figure 63. Decoder Data Bandwidth Link
1. In the Display tab, ensure that the Data check box (see figure 63, 1 ) is selected.
2. Click the bandwidth data link (see figure 63, 2 ). The Bandwidth (data) tab opens.
This is the same as the Bandwidth (audio) tab but has an Data Control panel (see
figure 64):
1 1
2 2 3 3 4 4
Figure 64. Bandwidth (data) Tab
3. If required, check the Serial Enable (see figure 64, 1 ) and UDP Enable (see
figure 64, 2 ) check boxes, and enter the UDP IP address (see figure 64, 3 ) and
UDP Port number (see figure 64, 4 ). (For more information about these choices, see
Decoder data bandwidth tab on page 64.)
4. Save the changes by clicking Save All .
VNM 250 • Configuration with the VNM 250 GUI 76
