Extron Electronics VN-Matrix 250 User Guide - Manual (Page 39)

VNM 250 GUI
Overview
VNM 250 GUI Login
The system can be configured and controlled using a graphical user interface (GUI), which is
served by the VNM 250 device that is acting as the system controller. To use this GUI, follow
these instructions:
1. Use one of the following web browsers with the version shown or later:
z
Windows ® Internet Explorer ® version 8
z
Mozilla ® Firefox ® version 20
z
Google ® Chrome ™ version 30
The PC must be on the same network as the VNM 250 controller.
2. Enter the controller IP address in the search bar. Press .
3. The VN‑Matrix Controller login page opens:

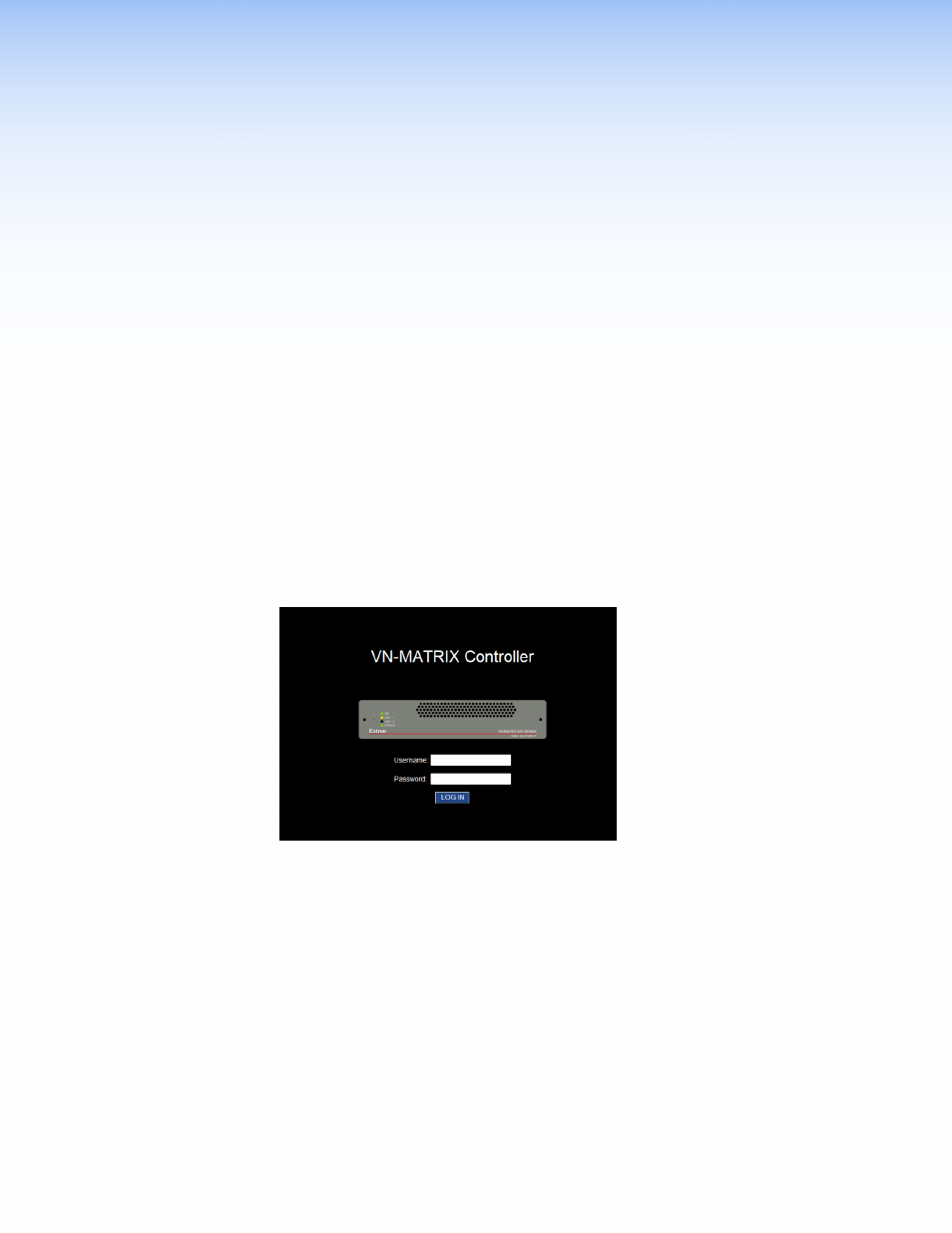

Figure 19. VN-Matrix Controller Login Page
4. Enter the Username and Password . By default, these are both admin (all lower case).
5. Press Log In . The VNM 250 GUI opens at the Device List tab (see page 35).
VNM 250 • VNM 250 GUI Overview 33 33
