Peripherals Tab

To access the

Peripherals

tab, you must first select a device from the

Device List

and, when the

Device

tab opens, click the

Peripherals

Tab. Whether you navigate to the

Peripherals

tab from an encoder or a decoder, the functionality is the same.

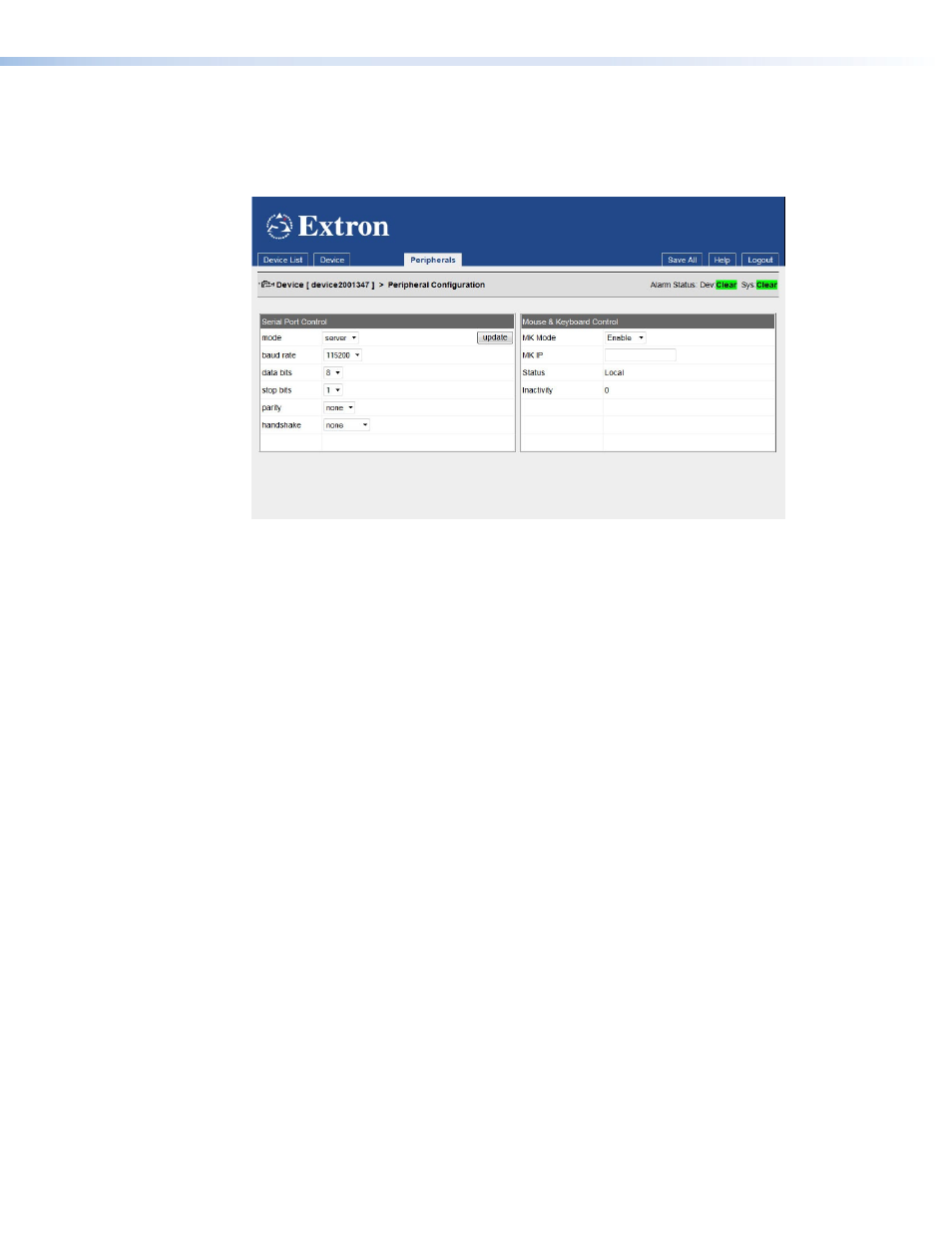

Figure 26.

Peripherals Tab

The Peripherals screen is used to manage the Coms pass‑through serial port and the
mouse+keyboard forwarding operation.

RS-232 pass-through serial port

The RS‑232 pass‑through serial port supports two modes of operation:

Serial RS‑232 pass‑through mode

Serial RS‑232 data channel mode

In either mode, the serial ports on each VNM 250 do not need to share a common baud
rate. However, where large amounts of data are sent from a high‑speed to a low‑speed data
link, some form of handshaking or flow control may be required to prevent buffer overflow
on the output device. Standard flow control methods are fully supported.
