Decoder data buffer
The decoder data buffer operates in the same ways as the video buffer (see Decoder video
buffer on page 61).
NOTE: The frame delay setting reflects the value that is set in the video buffer and
cannot be adjusted.
Decoder data connection fields
The decoder data connection fields operate in the same ways as the video connection fields
(see
Decoder video connection fields on page 62).
Decoder video format tab
From the Display tab, click the Format tab:

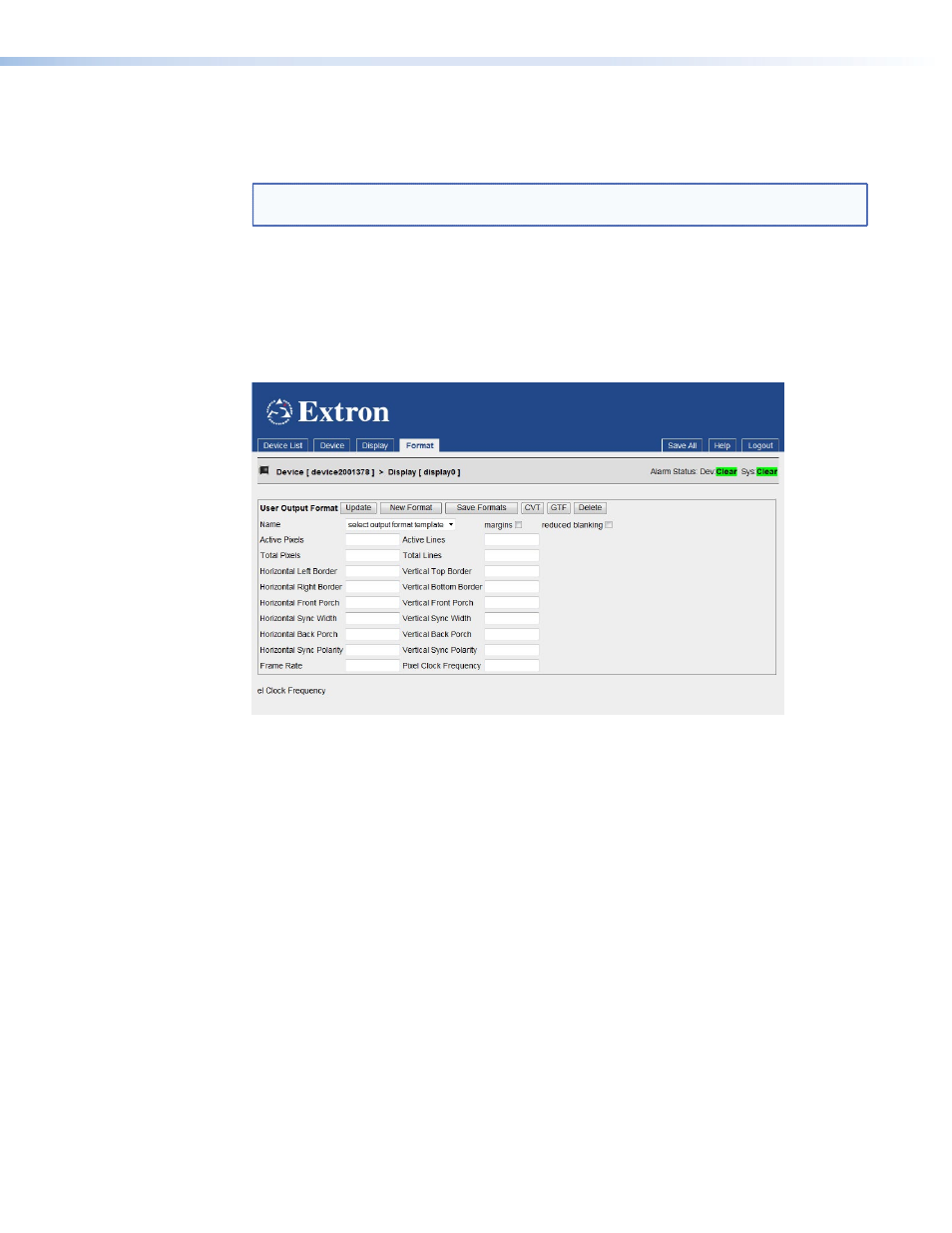

Figure 45. Decoder Format Tab
This tab provides two methods to create new formats for displaying decoded video streams:
z
Clone an existing mode and modify some parameters.
z
Create a new CVT mode by entering a complete set of new values (see page 83).
VNM 250 • VNM 250 GUI Overview 65
