Network Connections
The VNM 250 series units have two separate network
connectors: one for the control network (LAN 1) and the
other for the streaming network (LAN 2). Each port has
its own IP address.
The control port (LAN 1) is not required for normal
operation. When necessary, this port may be used to
enable control by a third‑party control system.
The streaming port is the primary network connection.
All media and device communication is delivered over
this network link. To connect to the streaming network,
use either the rear panel LAN 2 RJ‑45 connector or SFP
(fiber optic) connector.
NOTE: By default, only the LAN 2 RJ‑45 connector is populated and available for use.
If an SFP connector is required, it must be purchased and installed by the user. When
installed, the SFP connector becomes the active port and the RJ‑45 connection is
inactive. Both of the LAN 2 ports share the same IP address.
LAN 1
LAN 2
RESET
HDMI
ACT/
LINK
-A MAX
POWER
12V
AUDIO
L
Tx Rx
PASS THRU
ALARM
GENLOCK
CONTROL
G Tx Rx
NO G IN G OUT
R
RETURN AUDIO
L
R
STREAMING
CONTRO
L
COM
S
INPU
T
I/
O
OUTPUT
OUTPUT
1
2
US
B
LAN 1
LAN 2
PC
RESET
HDMI
LOOP THRU
LOOP THRU
LOOP
THRU
RGB
ACT/
LINK
-A MAX
POWER
12V
AUDIO
L
Tx Rx
PASS THRU
ALARM
TTL
CONTROL
G Tx Rx
NO G IN G OUT
R
RETURN AUDIO
L
R
STREAMING
CONTRO
L
USB
INPUT 1
INPUT 2
COM
S
I/
O
OUTPUT
MODEL 80
FLAT PANEL
Extron
VN-Matrix Enterprise Controller
Control PC
Ethernet
Ethernet
Ethernet
HDMI
HDMI
Flat Panel Display
Extron
VNE 250 Matrix
Extron
VND 250 Matrix
Video
Source
(PC)
Local Control
(HLI or Web UI)
Ethernet
Streaming
Ethernet
Extron
Extron
TLP 710TV
Extron
IPL 250
1
3
1
4
2
3
1
4
2
3
1
4
2
2
3
100
LINK
ACT
COM
IR
INPUT
RELAY
Tx
Rx
R
IPL 250
®
IP
Network
Virtual
Switching

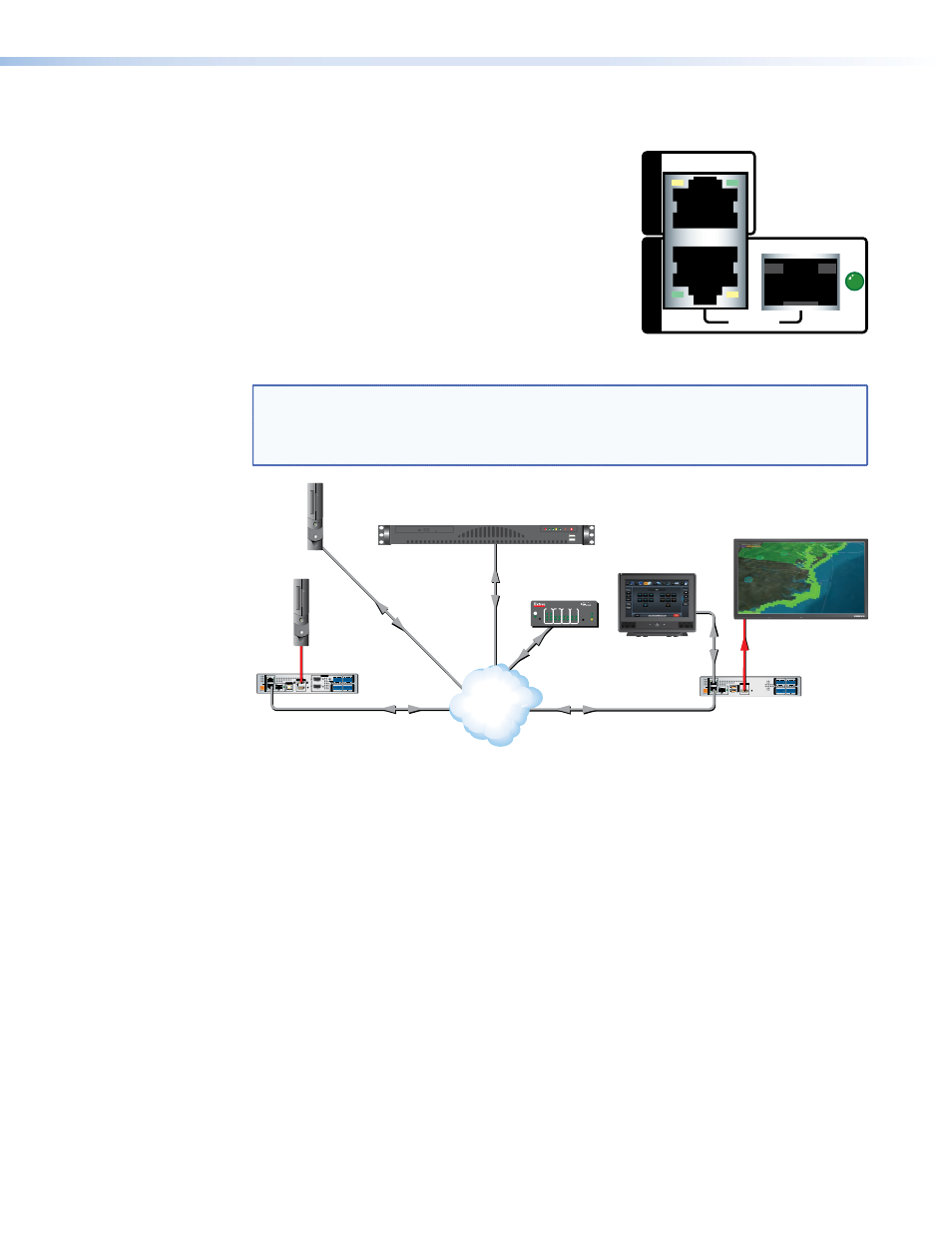

Figure 8.
VNM 250 Control and Streaming Network Connections
