Page 52
z
Data interface is a read‑only field that reports which of the
CAT 5
(by default) or
SFP
connectors is currently active on LAN 2.
z
Multicast TTL (Time to Live) defines the number of hops multicast traffic makes between
routed domains when it exits a Source.
Configuration — allows you to configure the video attributes of the source (
VideoPort
link
), the audio attributes of the source (
AudioPort
link
), the data attributes (
Data
link
),
or the display attributes and source selection.
Video Stream Input Configuration
Click on the
videoPort0
link to configure the video input. The
Configure
tab for
videoPort0 opens:

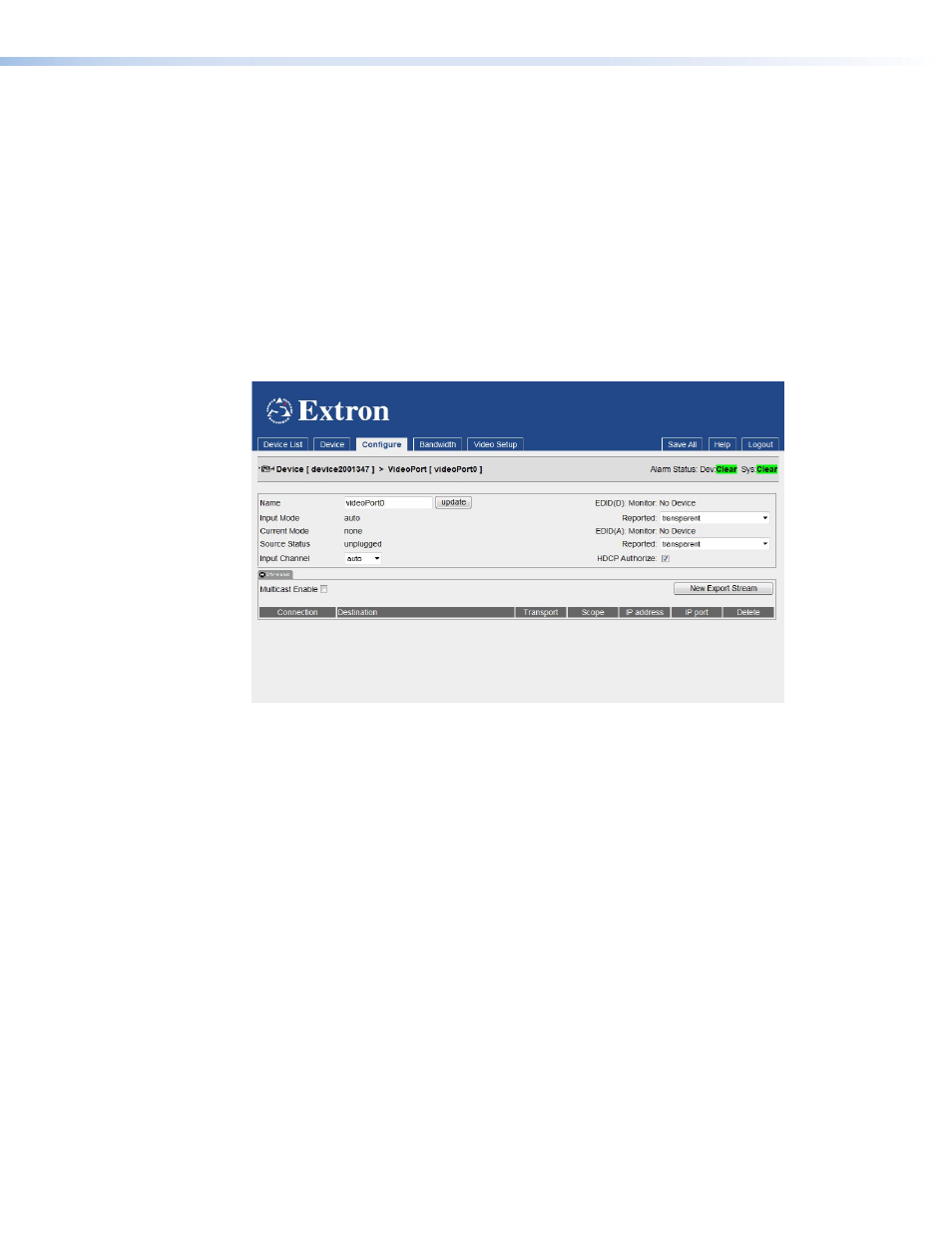

Configure (VideoPort0) Tab
Figure 30.
VideoPort0 Tab
The
Upgrade
and
Peripherals
tabs disappear and
Bandwidth
and
Video Setup
tabs
appear, with the
Configure
tab highlighted.
By default the video port is named
videoPort0
. If required, change the name by editing the
Name
field and clicking
update
.
The top panel provides information about:
z
Input Mode — shows the operating mode of the input. Normally this should show
auto
. It is controlled in the
(see page 52).
z
Current Mode — shows the currently detected source type.
z
Source Status — describes the video input connection.
Active
means the video
source has been recognized at the input.
Unplugged
means either no source is
connected or there is no active video signal from the connected source.
Video input — EDID settings
Set the EDID (D) for the digital video input and the EDID (A) for the analog input. In most
cases, transparent is the correct option. This allows the EDID data of the loop‑through
display to pass through the VNE 250 to the source PC.
The Monitor EDID shows the name of the display currently connected to the loop‑through
video connector.
VNM 250 • VNM 250 GUI Overview
46
