MS9500GL HD FrEND Plus Chapter 3: Player Configuration – HD Application
Output Format
Use this feature of the Channel Properties to ensure that your Video format matches the requirements of your
display device (LCD: System/Resolution; System/Frame Rate).
The video Output Format field tells the MS9500GL how to format the video output. Normally this will match the
contents of the file. A file encoded as 1080i is normally decoded as 1080i, but the Player has an integrated video
scaler that can output a different format to that contained in the file.
To select the required format: Click over the down arrow and select the required setting from the drop down list.
The following table illustrates the formats supported. Some of these are not standard ATSC video modes, and are
custom to the Electrosonic HD Player.
Format Frequency Notes
1920x1080 50Hz
59.94 Hz
60 Hz Commonly referred to as 1080i
1280x720 50Hz
59.94 Hz
60 Hz Commonly referred to as 720p
720x480 59.94 Hz
60 Hz Commonly referred to as 480p
720x576 50 Hz
1024x768 59.94 Hz This mode was designed to match the resolution of many digital display
devices (such as DLP or LCD). This gives very good quality images because
it removes the need for the projector to resize the input signal.
Reserved1 This mode is for internal test only; do not select.

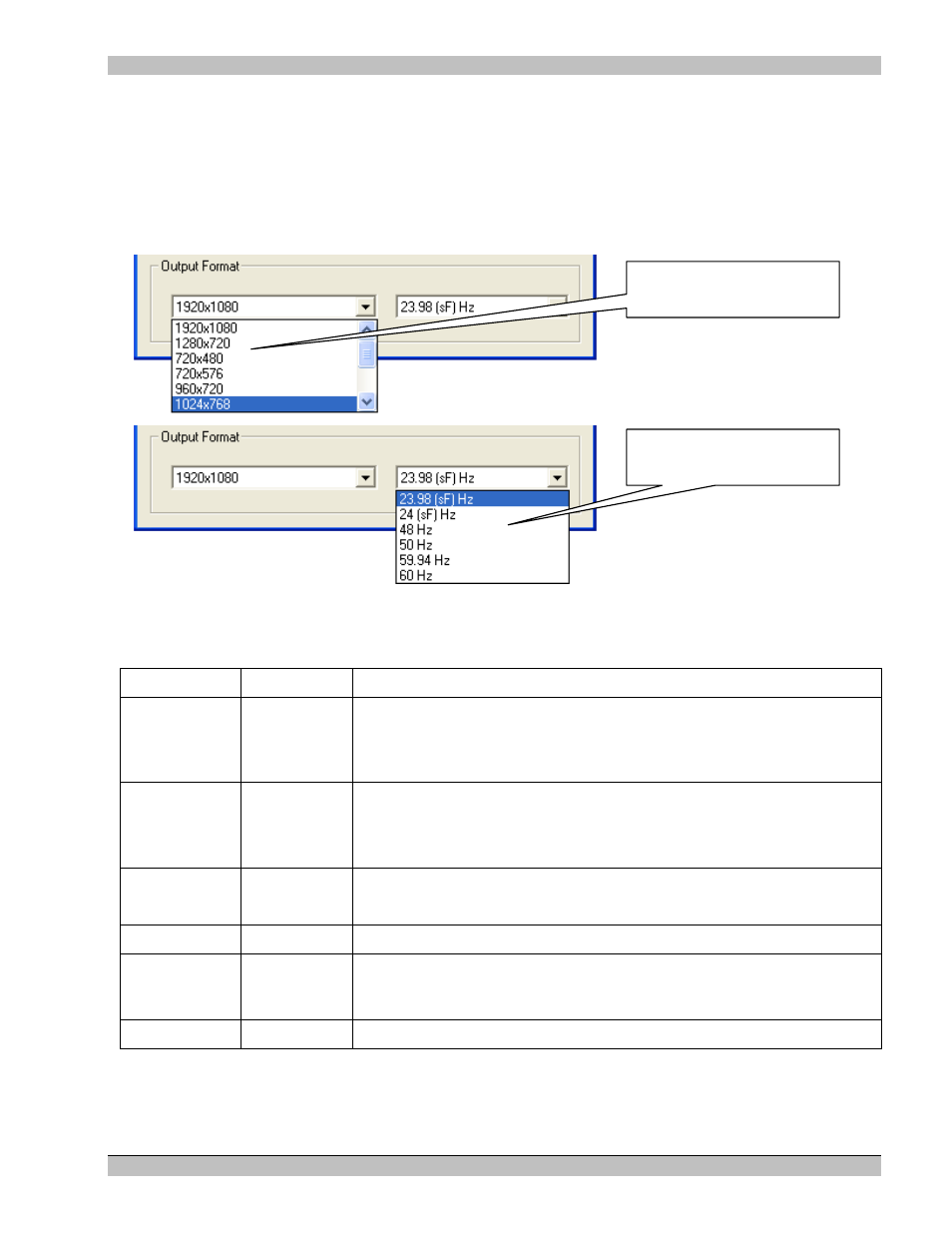

Click to select the required
Video output frequency.
Click to select the required
Video output format.
