MS9500GL HD FrEND Plus Chapter 1: Introduction/Quick Reference Guide
• LTC IN/OUT – 2 Phono sockets. Connect Linear Time Code (LTC) for system control (MS9500GL
only; Refer to Chapter 4)

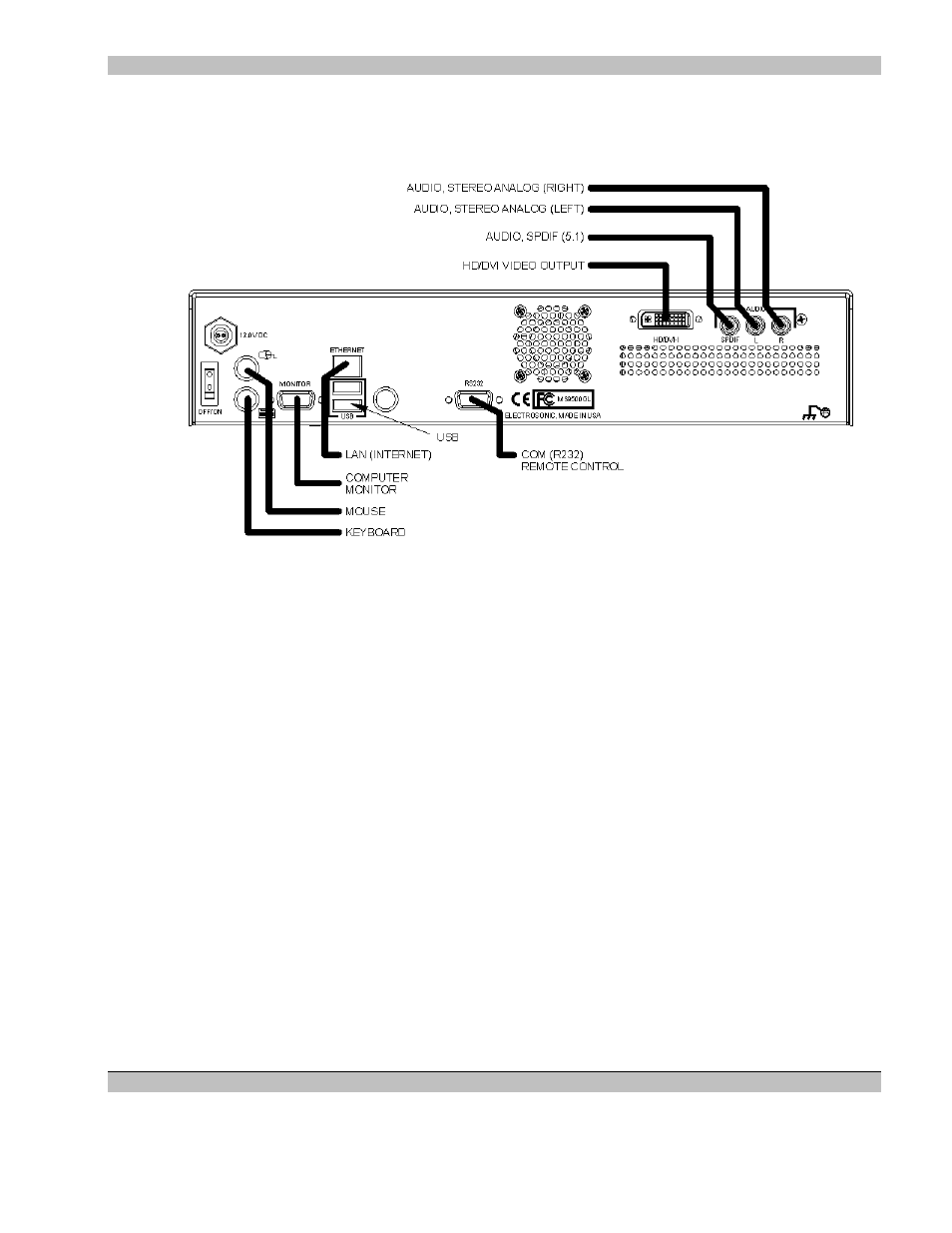

MS9500 Connector Interface:
System Configuration
Use the MS9500GL in simple stand-alone configurations consisting of the player, an HD display and an audio
system, or in more complex network integrated systems.
The following diagram illustrates a generic system utilizing an MS9500GL. Your actual system configuration may
be different but will be some variant of that shown. The Show Control Computer is only necessary when using the
HD FrEND Plus in a network (LAN) controlled system, or locally controlled through the RS232 port.
13 Rev. 1.26
