GE Industrial Solutions GE Zenith Series DPB User Manual
Page 78
70
Installation & Operation Manual, GE Series DPB Busway
March 25, 2013, Rev 0
GE Confidential
Series DPB Busway Installation & Operation Manual
The Black wire goes to X1 on CT. The White wire to other CT terminal (X2).
H1 marking on CT faces customer power source (See Figure 59 Below).
J10
J12
J13
J11

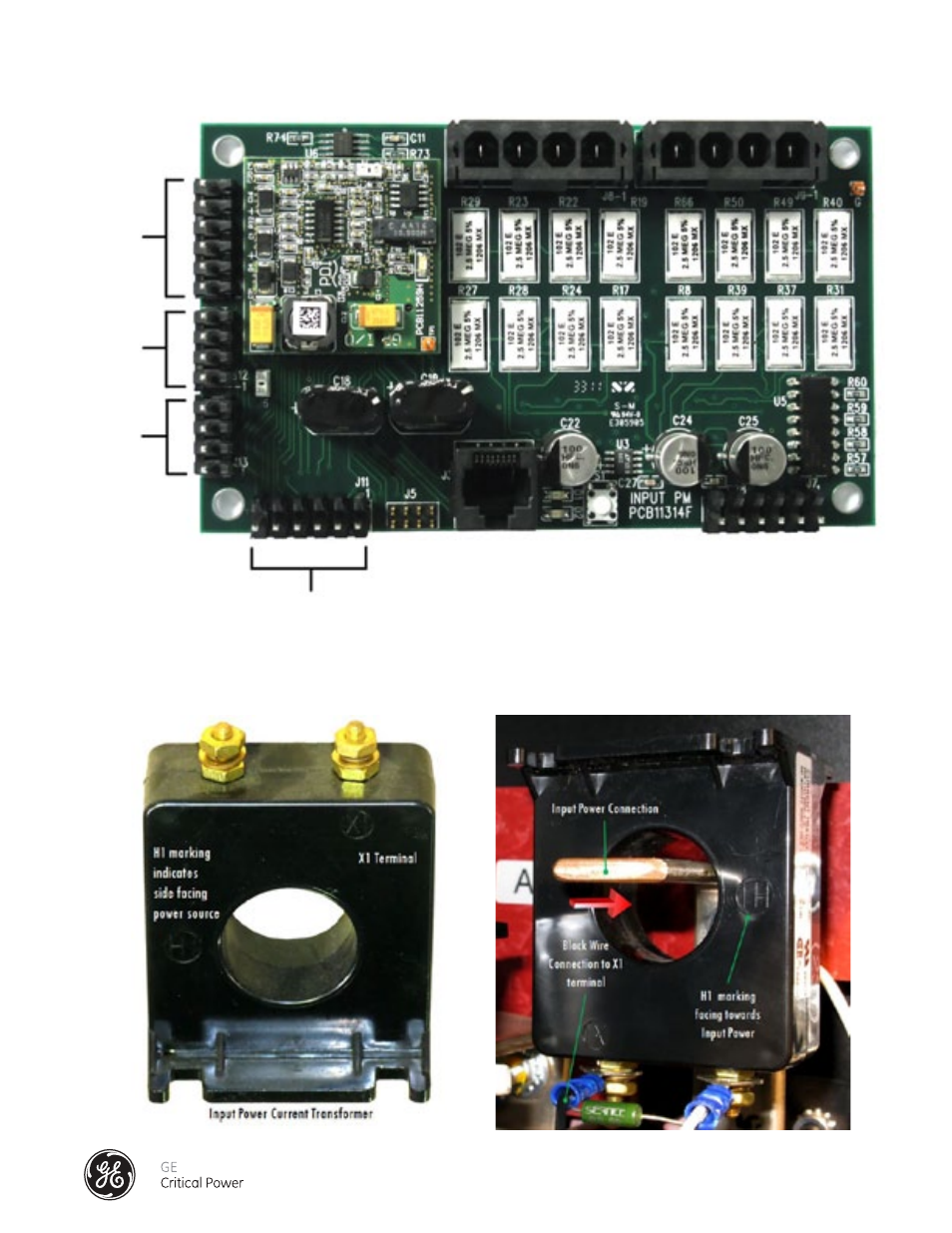

Figure 59 - End Feed Current Transformer (CT) Orientation
Figure 58 - End Feed Input Power Monitor Board
