6 Installation & Operation Manual, GE Series DPB Busway
March 25, 2013, Rev 0 GE Confidential
Series DPB Busway Installation & Operation Manual
INSTALLATION HAZARD
Depending on the installation orientation of the busways, the following WARNING should always be considered.
VERTICAL BUSWAY INSTALLATION
See Figure 1. For busways installed vertically with channel opening down,
always maintain:
A minimum clearance distance of 6 inches (153 mm) from the top of the
busways to the ceiling and 1 inch (26mm) from the wall.
Parallel runs for two systems mounted in the same area shall have the following
clearances between the systems.
A minimum clearance distance of 6 inches (153 mm) from the center-point of
busway run A to the next run B.
CAUTION
HAZARD OF EQUIPMENT DAMAGE
Always maintain the minimum required clearance distance as shown below.
Failure to follow these instructions may result in equipment damage or personal
injury.

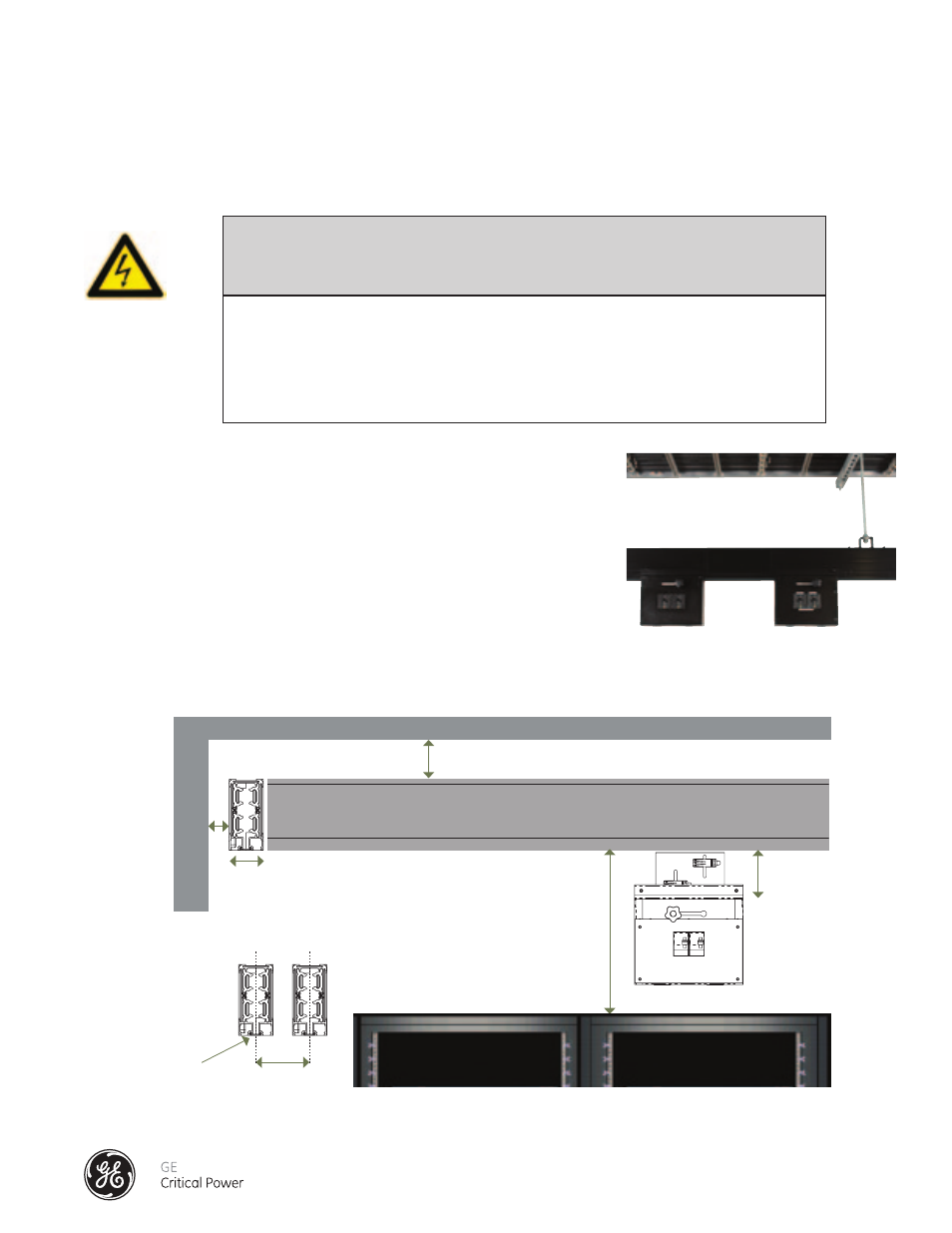

Figure 1 - Vertical Busway Installation
underside of busway
1"
2.5"
5"
18" minimum
6"
ceiling
Top of Server Cabinet
or Equipment
w
all
6"
bus rail A
underside of busway
bus rail B
