COMMUNICATIONS CABLE CONNECTION
The intelliBUS PCB is located inside the Tap Off
Box. Once the Tap Off Box has been secured to the
bus rail, (refer to section Tap Off Box Installation)
insert the communications cable from the Branch
Monitor Connector on the Tap Off Box into the
nearest open connector on the busrail (Figure 23).
Ensure that the barbed connector lock is in place
to maintain connection integrity.
In the event all communication connectors are
utilized where a Tap Off Box is located, longer
cables or connector splitters are available from
the factory. Once energized, the Status LED will
NOT be lighted as it is used for Alarm purposes
only. Note that the source power for the branch
monitor is via the communications cable link.
Fuses
Communications Cable
Busrail Connector
Tap Off Box
Connector Status LED

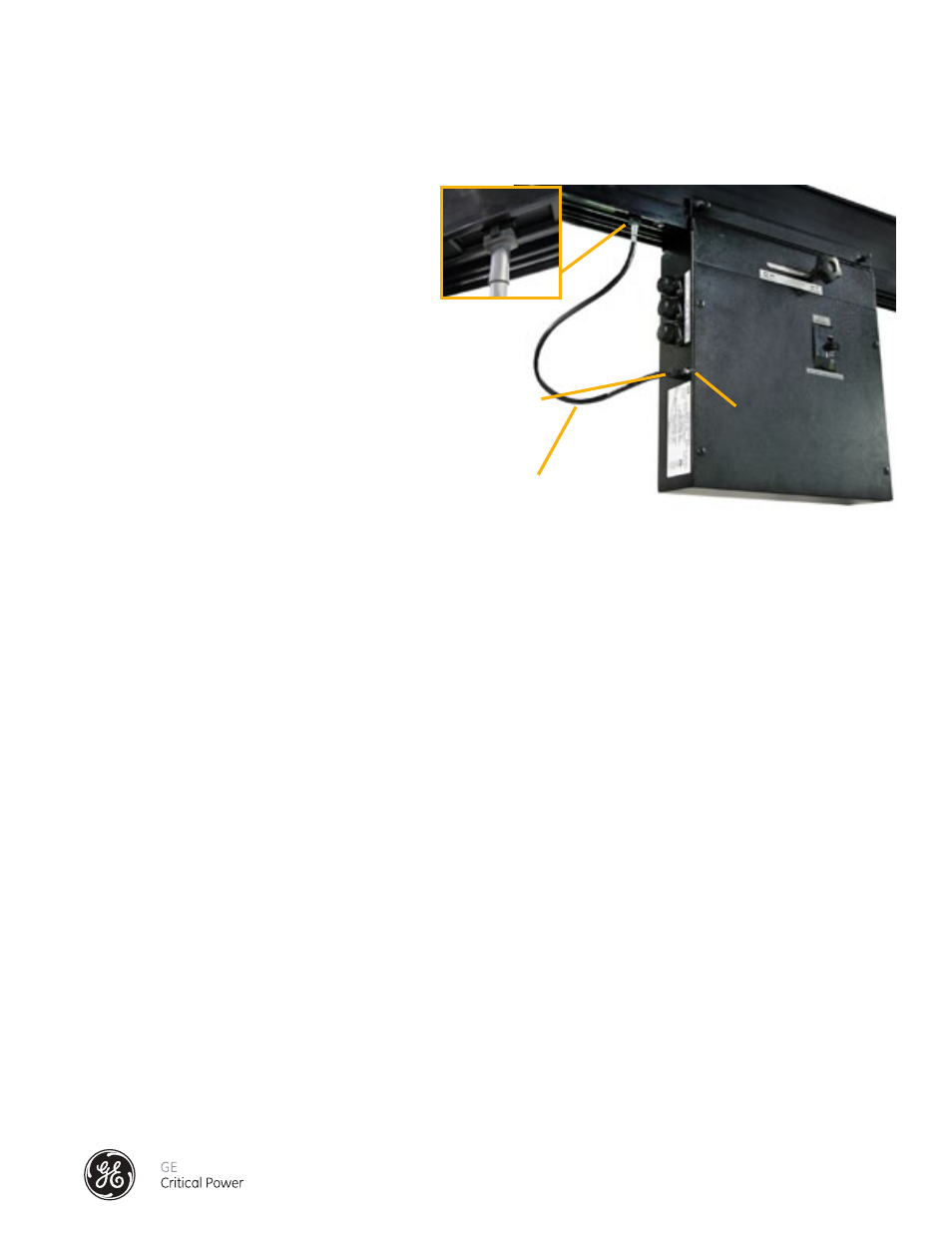

Figure 40 - Tap Off Box Communication Interface Into Series DPB Busrail
Option 3 - TAP OFF BOX AND END FEED MONITORING CONCURRENTLY
