Xedio Suite Version 3.1 – User’s Manual – CleanEdit
EVS Broadcast Equipment – January 2011
Issue 3.1.B
139
8.2.4 P
OSSIBLE
V
IDEO
T
RANSITION
E
FFECTS
This section presents the various transition effects that can be selected from the
contextual menu. For all effects, a specific Video Transition Effect window will
be displayed to specify the various parameters, such as duration, position, and
possibly other configuration parameters.
N
ONE
This option resets the transition into a cut.
M
IX
The Mix transition provides a dissolve effect from the clip to the left of the joint to
the clip to the right of the joint.

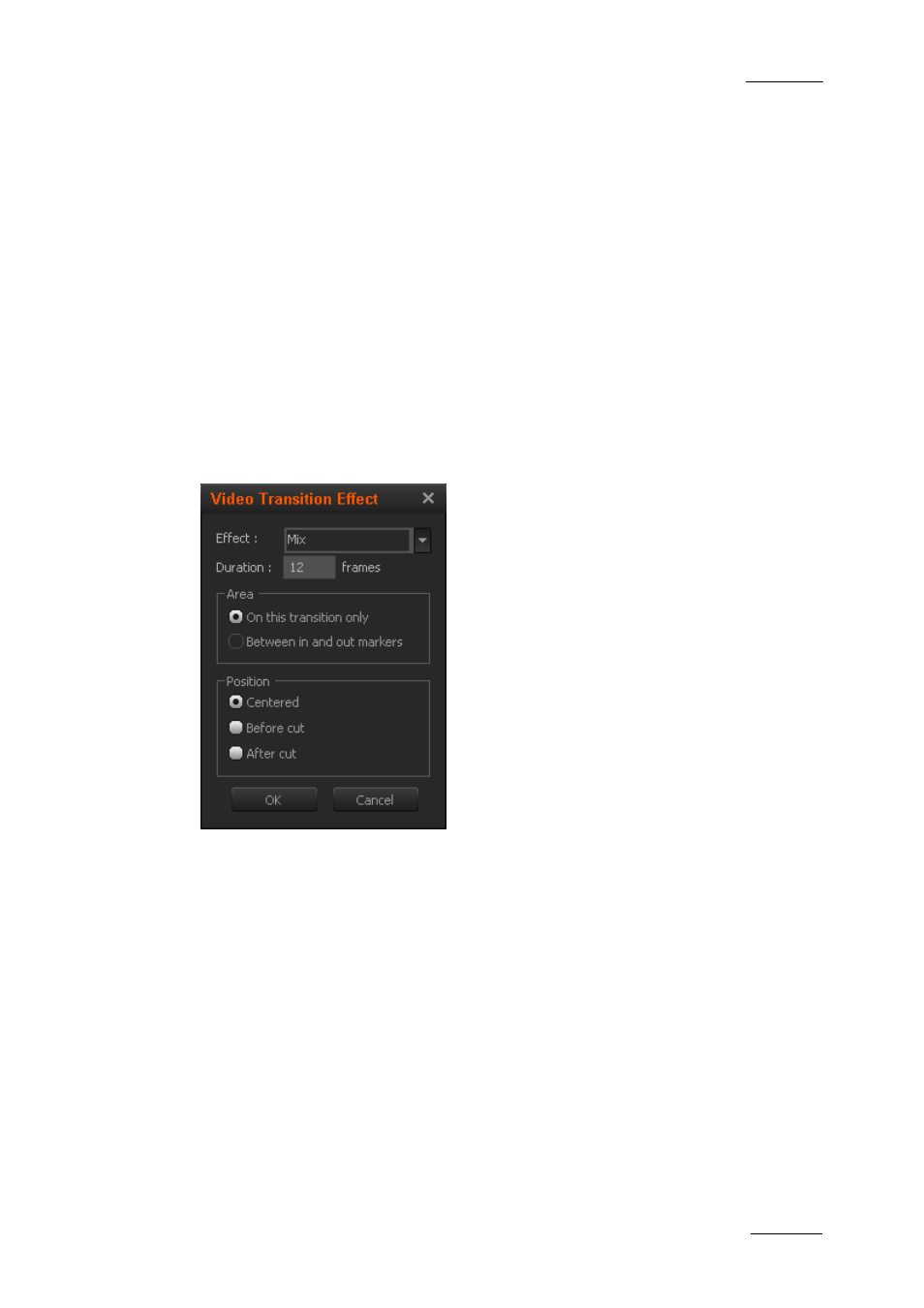

This option will open a dialog box to determine the parameters for the Mix effect.
You need to define:
• the duration in frames
• the position of the mix:
o
before cut: on the clip before the joint
o
centered: centered on the joint
o
after cut: on the clip after the joint
W
IPE
The Wipe transition is a gradual spatial transition from one video source to
another, in which a vertical or horizontal border moves across the screen, to
gradually replace the last images of the first clip with the first images of the next
clip.
This option will open a dialog box to determine the parameters for the Wipe effect:
