EVS Multicam Version 10.04 – Operating Manual
EVS Broadcast Equipment SA – January 2011
70
9.4.4 VDR P
ANEL
– R
ECORDER
WINDOW

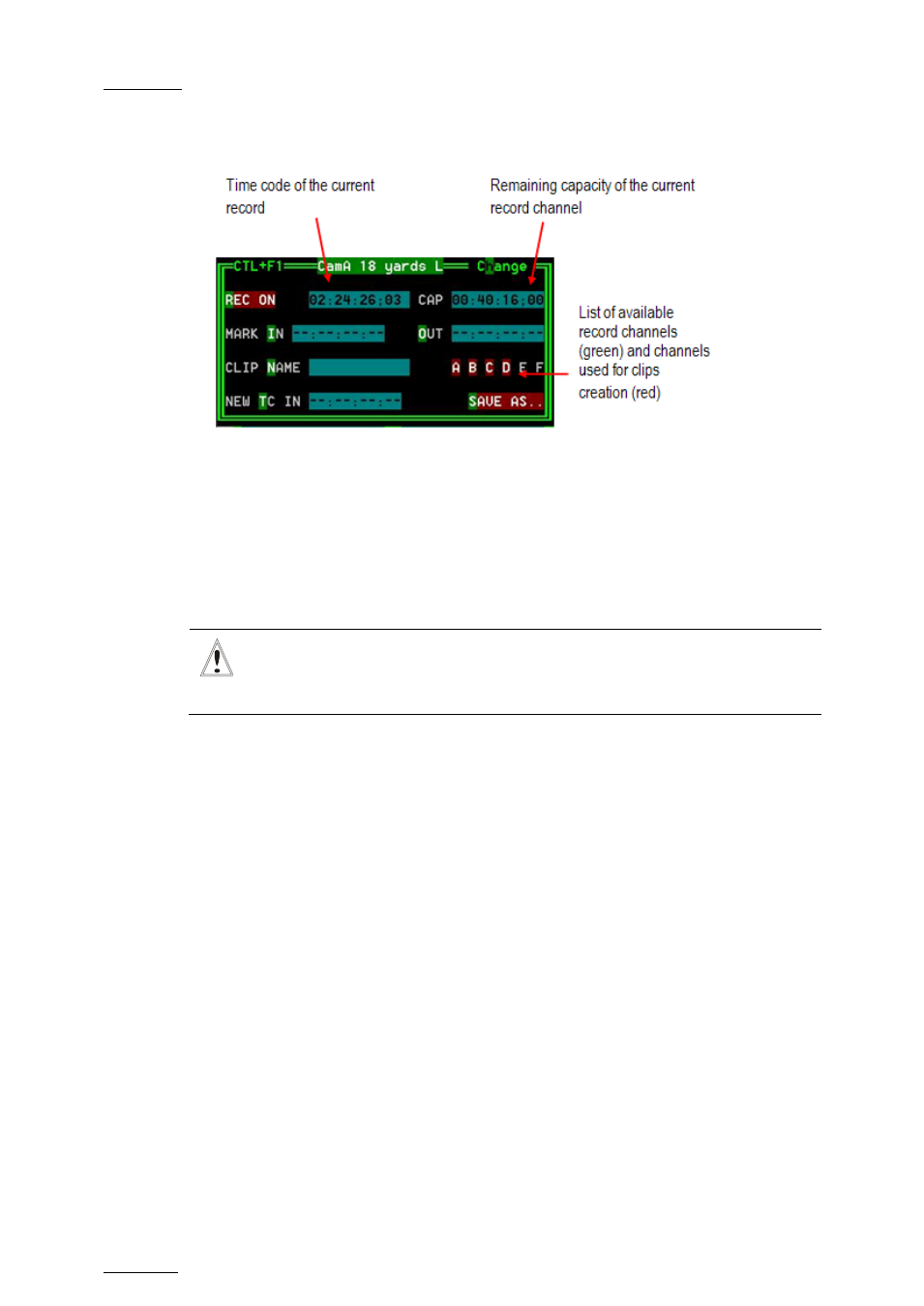

The VDR Panel Recorder can be used to start/stop the record, and to create clips
from the local record trains. For example, it allows the creation of clips on a
server that has no Play channel.
H
OW TO
S
TART
/S
TOP THE
R
ECORD
Press ALT+R to start or stop the record on the record channel assigned to the
window. No confirmation is required.
Important
In LSM mode, all recorders will be stopped at once to keep the
synchronization between all record channels.
C
REATING
C
LIPS WITH THE
VDR P
ANEL
R
ECORDER
1. Press ALT+I / ALT+O to mark a Short IN / Short OUT point on the last
recorded picture. The timecode appears in the adjacent field, and the cursor is
automatically placed on that field to allow the operator to edit the timecode of
the Short IN / Short OUT point if desired. Press ENTER to confirm or ESC to
cancel.
2. Repeat this operation for the complementary Short IN / OUT point. This is not
mandatory. If only a Short IN or a Short OUT point is marked, the Default Clip
Duration defined in the Setup (p.2.2 F2) will be used to define the missing
point.
3. Select from which record train(s) the clip(s) must be created: press ALT + the
letter (A/B/C/D/E/F) of a record train to select / de-select it. Letters
highlighted in RED means that a clip will be created from the corresponding
record train ; letters highlighted in green means that the corresponding record
train is available but will not be used to create a clip.
4. To define the name of the clip before saving it, press ALT+N, type the desired
name and validate with ENTER.
