Issue

10.04.A

EVS Multicam Version 10.04 – Operating Manual

EVS Broadcast Equipment SA – January 2011

66

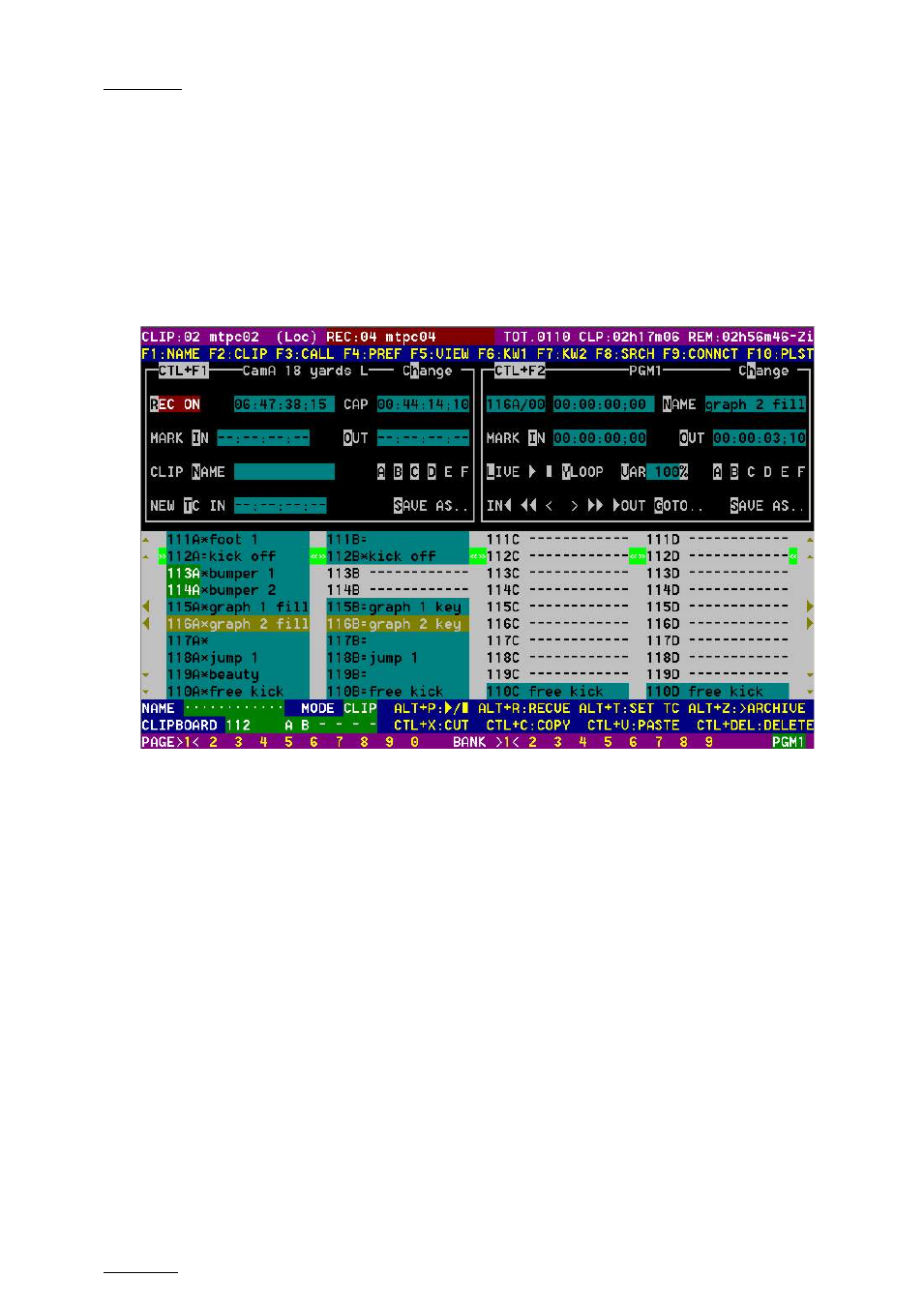

9.4 USING THE VDR PANEL

The VGA VDR Panel is accessed from any VGA screen by pressing SHIFT+F9 on

the keyboard. The lower section of the VDR Panel is similar to the clip screen,

with the same functions. The upper section of the VDR Panel features 2 windows

that can each take control of one channel of the server.
Pressing SHIFT+F9 in the VDR Panel returns the VGA to the Clip screen mode.

9.4.1 VDR

P

ANEL

L

OWER

S

ECTION

The browsing of clips, the viewing modes (normal or extended), the way clips are

recalled, moved and copied, etc. in the VDR Panel is strictly the same as in the

Clip screen. The CONNECT window is called with F9, and allows to connect to

other servers on the network.

9.4.2 VDR

P

ANEL

U

PPER

S

ECTION

The two windows of the upper section can be assigned to a different channel of

the server. When entering the VDR Panel for the first time after starting the

application, the control of both windows is disabled.
Press CTRL+F1 to gain control of the left window, or CTRL+F2 to gain control on

the right window. The frame around the corresponding window becomes green.

Note that only one window can be active at a time. Inside the active window,

letters/numbers highlighted in green indicate the keyboard shortcut to the

corresponding function: press ALT + the highlighted letter/number. All functions

are also available by c licking with the stylus.
