EVS Multicam Version 10.04 – Operating Manual
EVS Broadcast Equipment SA – January 2011
22
4.3 CLIP NUMBERING HIERARCHY
Multicam can store up to 900 (multiplied by the number of cameras) clips and 100
playlists in its libraries. 900 clips with up to 6 camera angles per clip results in
5400 clips on a server. This number is displayed in the upper right window of the
VGA Setup screen (SHIFT+F2 from the PC keyboard).
If you are working with XNet SDTI network, keep in mind that the total num ber of
clips on the entire network is limited to 6,000 or 16,000, depending on the network
settings. This number is displayed in the same area on the VGA Setup window.

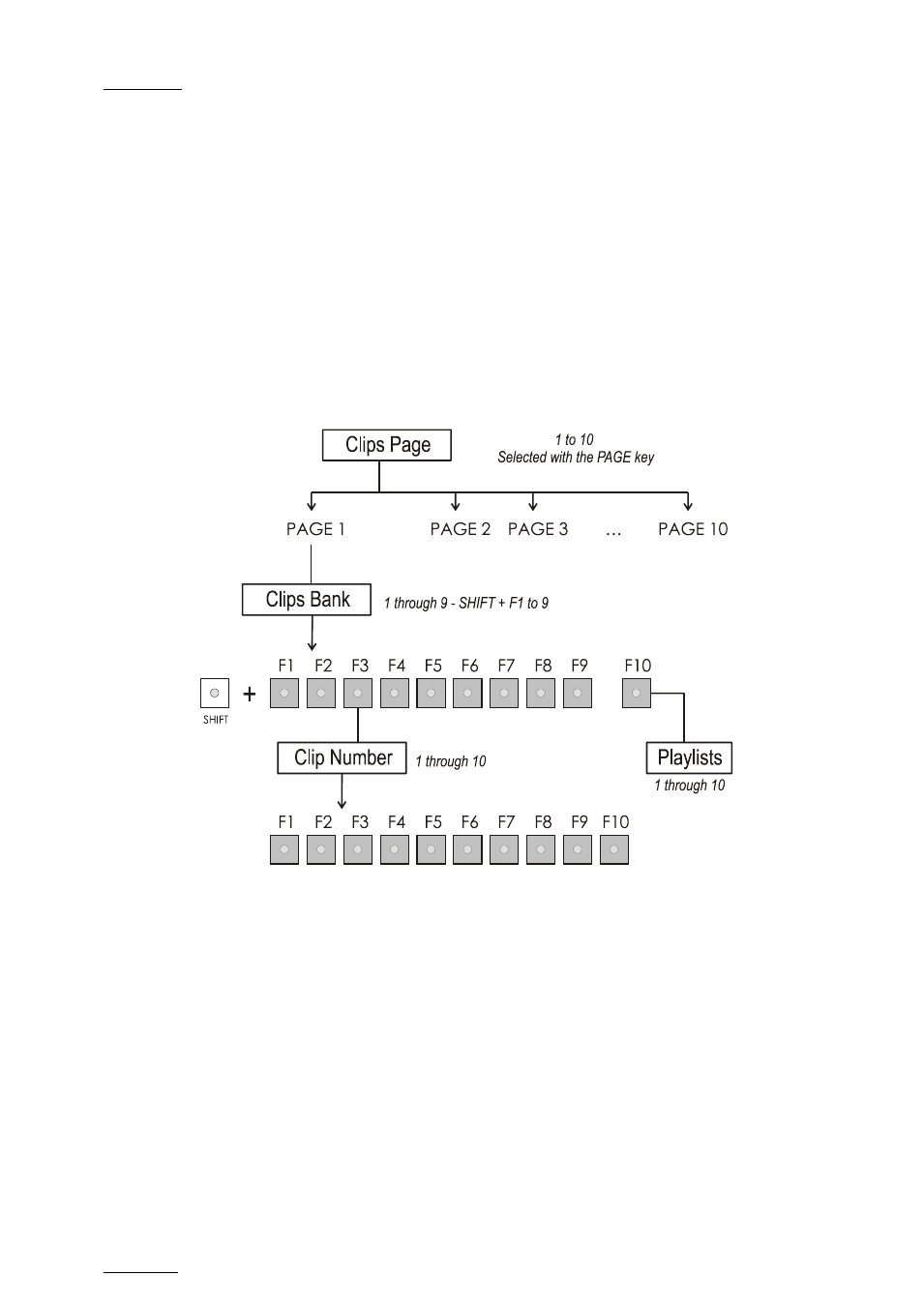

The following diagram represents the hierarchy of the Multicam clip numbering
system. As an example, clip number “112” is used:
