The camera memory has been split into the requested number of blocks having the
same size. The CAM keys from A to D correspond respectively to the memory
blocks from 1 to 4. only.
18.3.2 C
OLOR
C
ODE FOR
M
EMORY
B
LOCK
S
TATUS
CAM K
EYS ON
LSM R
EMOTE
P
ANEL
The CAM keys that correspond to active memory blocks have a different color on
the LSM Remote panel depending on the status of the corresponding memory
block.

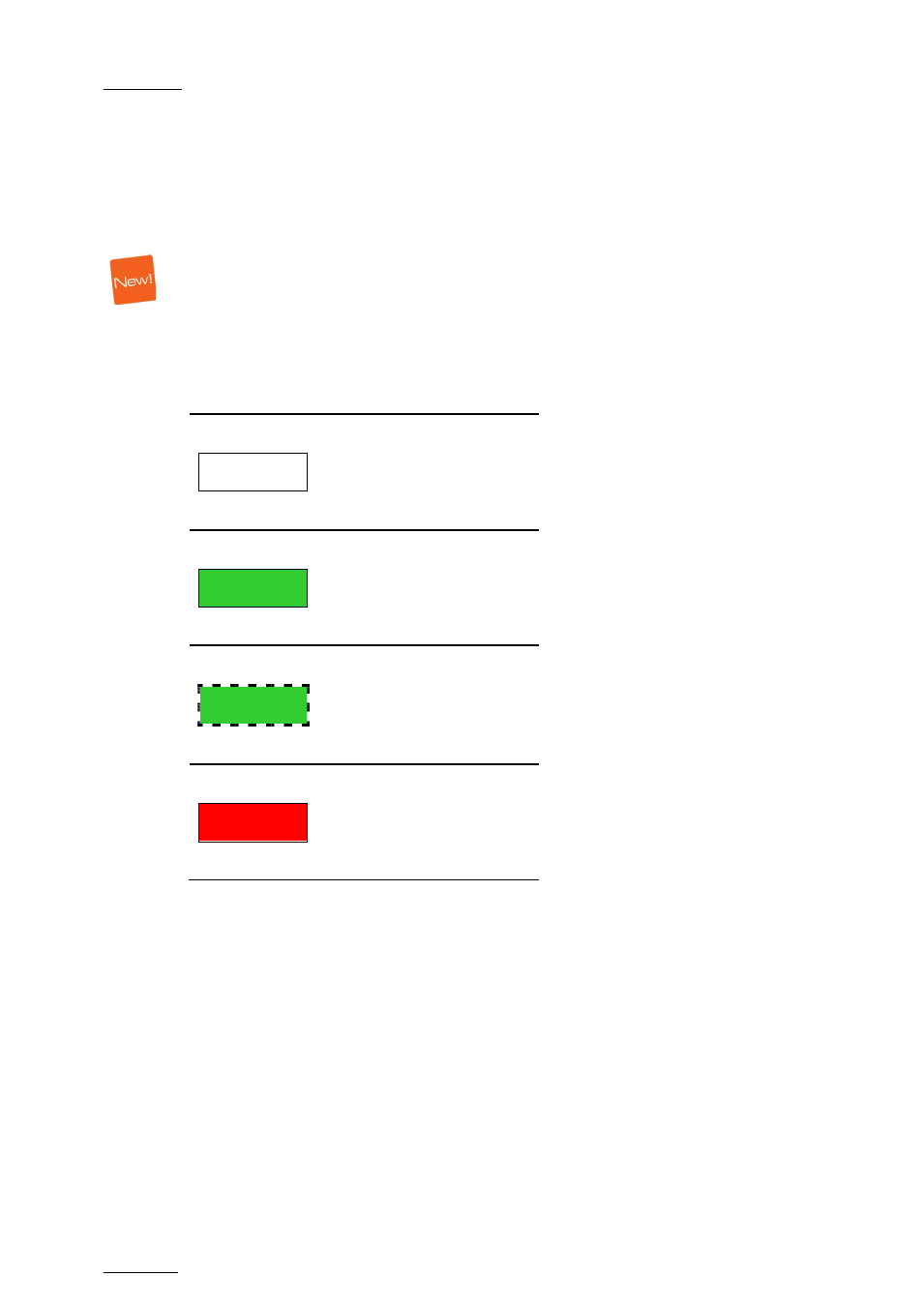

CAM Key Color Memory Block Status
Block 1
(white)
Empty block
Block 1
(steady green)
Recorded block
Block 1
(blinking green)
Block in PLAY
Block 1
(steady red)
Block in REC
CAM K
EYS ON
LSM R
EMOTE
P
ANEL
The block s ystem is displayed on the OSD monitoring of the recorder
corresponding to the hypermotion camera.
Each square corresponds to a memory block on the camera: 
The same color code as the one applied to the CAM keys on the LSM Remote is
applied to the block symbols on the OSD:
