12.4.2 C
ONTROLLING THE
R
ECORDER
In the Timeline Edit mode, operators work by default on the recorder: the jog dial
and the lever control the recorder. Operators listen to all the timeline audio tracks.
12.4.3 OSD D
ISPLAY
The following information is displayed on the OSD when the timeline is loaded in
Timeline Edit mode:
For each track:
• track description (V, A1, A2)
• asterisk next to the track description showing the selected tracks, on which the
editing action will be applied
• current clip ID,
• remaining time,
• relative position in the track
12.4.4 LCD I
NFORMATION
The same information as on the OSD is displayed on the Remote Panel with the
current timecode of the clip in addition:

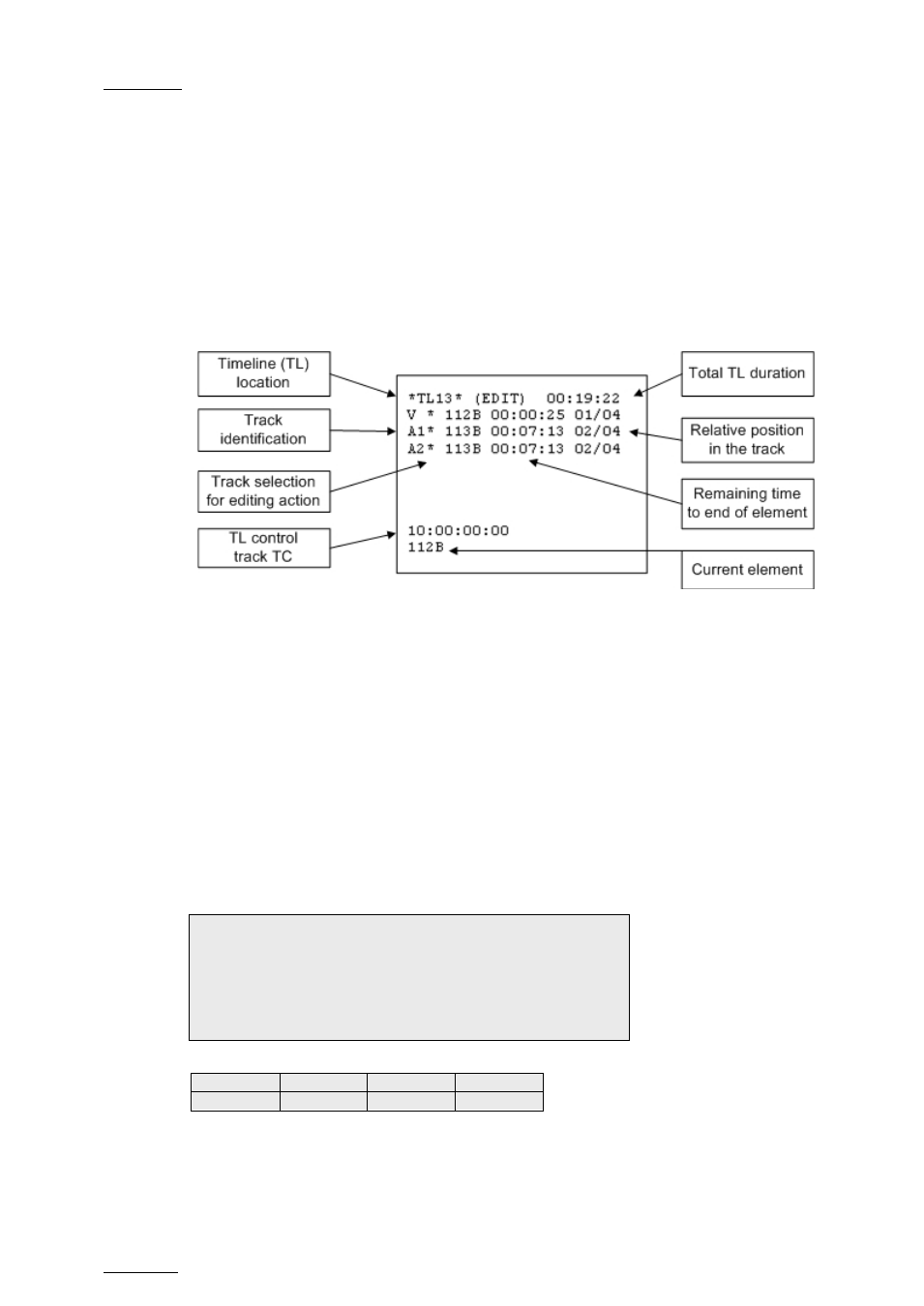

TL13 LEFT=00:00:00:00
V * 112B 01/04 00:00:25 11:15:15:11
A1* 113B 02/04 00:07:13 11:15:10:08
A2* 113B 02/04 00:07:13 11:15:10:08
The ABCD Soft keys on the Remote Panel are as follows:
Video Audio 1 Audio 2
The red blinking keys of the Remote Panel and the black background on the LCD
display show on which track(s) the Insert and Extend actions will be carried out. In
other words, if video only is selected when users do an insert, only the video will
be inserted.
