Command

Description

WP 

To move the separation line

V SPLIT /

H SPLIT

Toggles between horizontal and vertical Split screen menus

SWAP

To swap sources from both sides

SYNC

To synchronize the selected PGM with the other one. Press this

button and select the PGM to use as a reference.


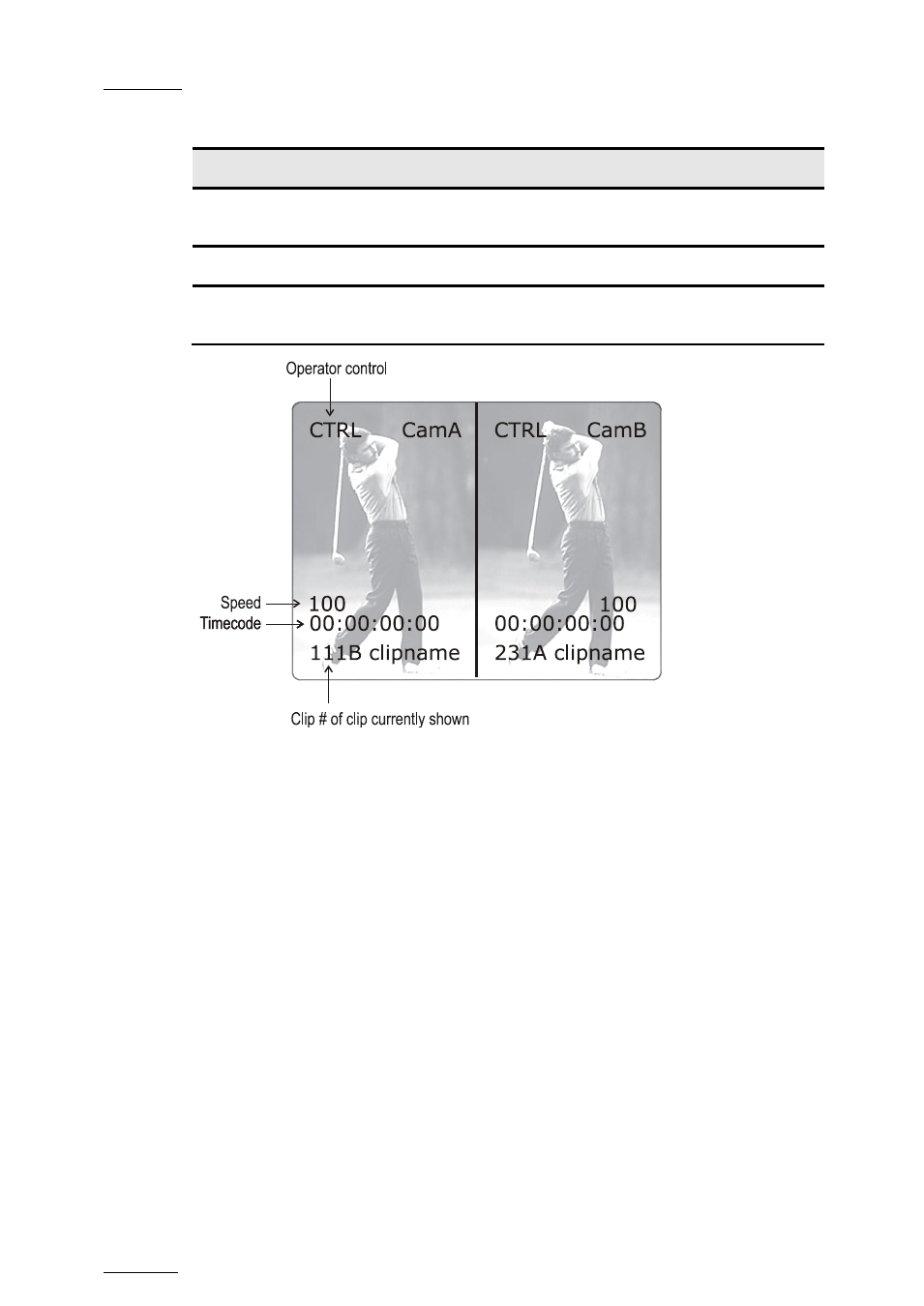

Press the LEFT key to take control of the left side of the screen, and recall the

desired clip for this side. Use the command knob to search inside the clip until the

desired picture is reached.
Press the RIGHT key to take control of the right side of the screen, and repeat the

same operation with the clip you want to display on the right side.
You can also shift horizontally the clips on both sides, so that the action is in the

centre of the picture.
Press the SHIFT key (D) to enter this mode. The menu will change, as shown

above.
Press the  LF  key, and move the command knob to centre the left side

picture.
Press the  RG  key and do the same operation for the right side picture.
To restore the default positions, press CLEAR +  LF , RG .
Press the  WP  key allows moving the border. To restore the default position

of the border, press CLEAR +  WP .
To exit the SHIFT mode, press the SHIFT key (D) again.
If working in network mode, split screen can be performed on remote clips as well

as on local clips.
