TOSHIBA

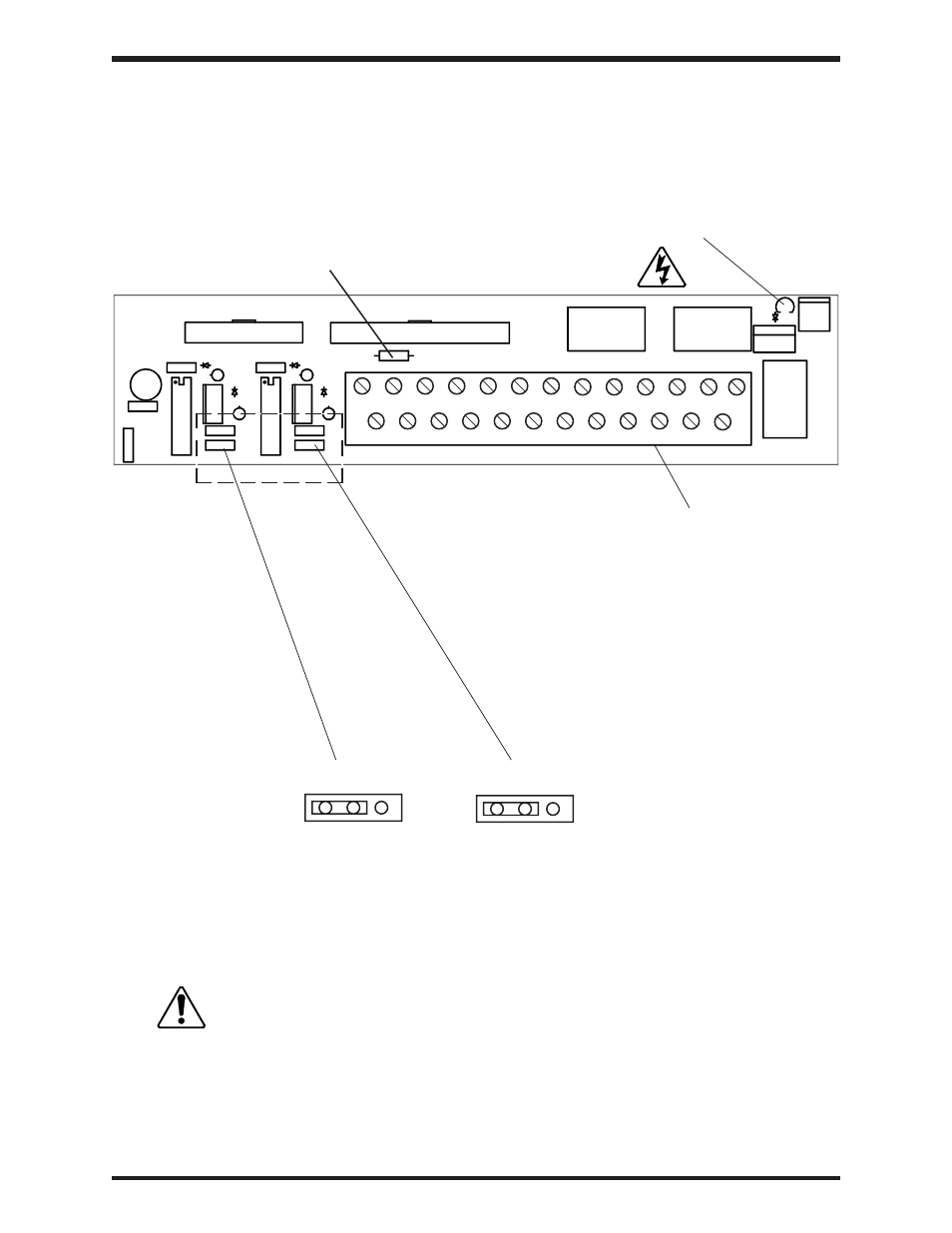

Terminal Board
The terminal printed wiring board is shown in the detail below. See Terminal Connections and
Functions starting on page 5-3. This board is used in all drive sizes.
5 - 1
Charge LED
Terminal Block
ST
FM
AM
CC
CC
RX
PP
IV
FP
FLC
FLB FLA
P24
RES RR
F
R
S1
S2
S3
S4
RCH
A
RCH
C
LOW
A
LOW
C
JP3
0-1mA
4-20 mA
0-1mA
Jumper JP3 is used to set AM terminal and
Jumper JP4 is used to set FM terminal.
4-20 mA
JP4
CAUTION
Turn off power to the drive before connecting or
disconnecting any wiring to the terminal block.
SECTION 5: Jumper and Terminal Connections
Fused Resistor for P24
