Toshiba Adjustable Speed Drive H3 - Manual (Page 108)

MODEL FIG A B C D E F G H
VT130H3U2035 1 12.13(308) 8.66(220) 7.44(189) 11.38(289) 11.63(295) 7.69(195) .28(7) .28(7)
VT130H3U2055 1 12.13(308) 8.66(220) 7.44(189) 11.38(289) 11.63(295) 7.69(195) .28(7) .28(7)
VT130H3U2080 1 17.88(454) 8.66(220) 7.44(189) 17.13(435) 17.38(441) 7.69(195) .28(7) .28(7)
VT130H3U2110 2 18.75(476) 14.25(362) 9.81(249) 17.09(434) 18.09(459) 11.25(286) .38(10) .38(10)
VT130H3U2160 2 18.75(476) 14.25(362) 9.81(249) 17.09(434) 18.09(459) 11.25(286) .38(10) .38(10)
VT130H3U2220 2 18.75(476) 14.25(362) 9.81(249) 17.09(434) 18.09(459) 11.25(286) .38(10) .38(10)
VT130H3U2270 2 18.75(476) 14.25(362) 9.81(249) 17.09(434) 18.09(459) 11.25(286) .38(10) .38(10)
VT130H3U2330 2 23.63(600) 17.25(438) 11.50(292) 21.63(549) 22.75(578) 14.25(362) .38(10) .38(10)
VT130H3U4055 1 12.13(308) 8.66(220) 7.44(189) 11.38(289) 11.63(295) 7.69(195) .28(7) .28(7)
VT130H3U4080 1 12.13(308) 8.66(220) 7.44(189) 11.38(289) 11.63(295) 7.69(195) .28(7) .28(7)
VT130H3U4110 1 17.88(454) 8.66(220) 7.44(189) 17.13(435) 17.38(441) 7.69(195) .28(7) .28(7)
VT130H3U4160 2 18.75(476) 14.25(362) 9.81(249) 17.09(434) 18.09(459) 11.25(286) .38(10) .38(10)
VT130H3U4220 2 18.75(476) 14.25(362) 9.81(249) 17.09(434) 18.09(459) 11.25(286) .38(10) .38(10)
VT130H3U4270 2 18.75(476) 14.25(362) 9.81(249) 17.09(434) 18.09(459) 11.25(286) .38(10) .38(10)
VT130H3U4330 2 18.75(476) 14.25(362) 9.81(249) 17.09(434) 18.09(459) 11.25(286) .38(10) .38(10)
VT130H3U4400 2 23.63(600) 17.25(438) 11.50(292) 21.63(549) 22.75(578) 14.25(362) .38(10) .38(10)
VT130H3U4500 2 23.63(600) 17.25(438) 11.50(292) 21.63(549) 22.75(578) 14.25(362) .38(10) .38(10)
VT130H3U4600 2 23.63(600) 17.25(438) 11.50(292) 21.63(549) 22.75(578) 14.25(362) .38(10) .38(10)
11 - 1

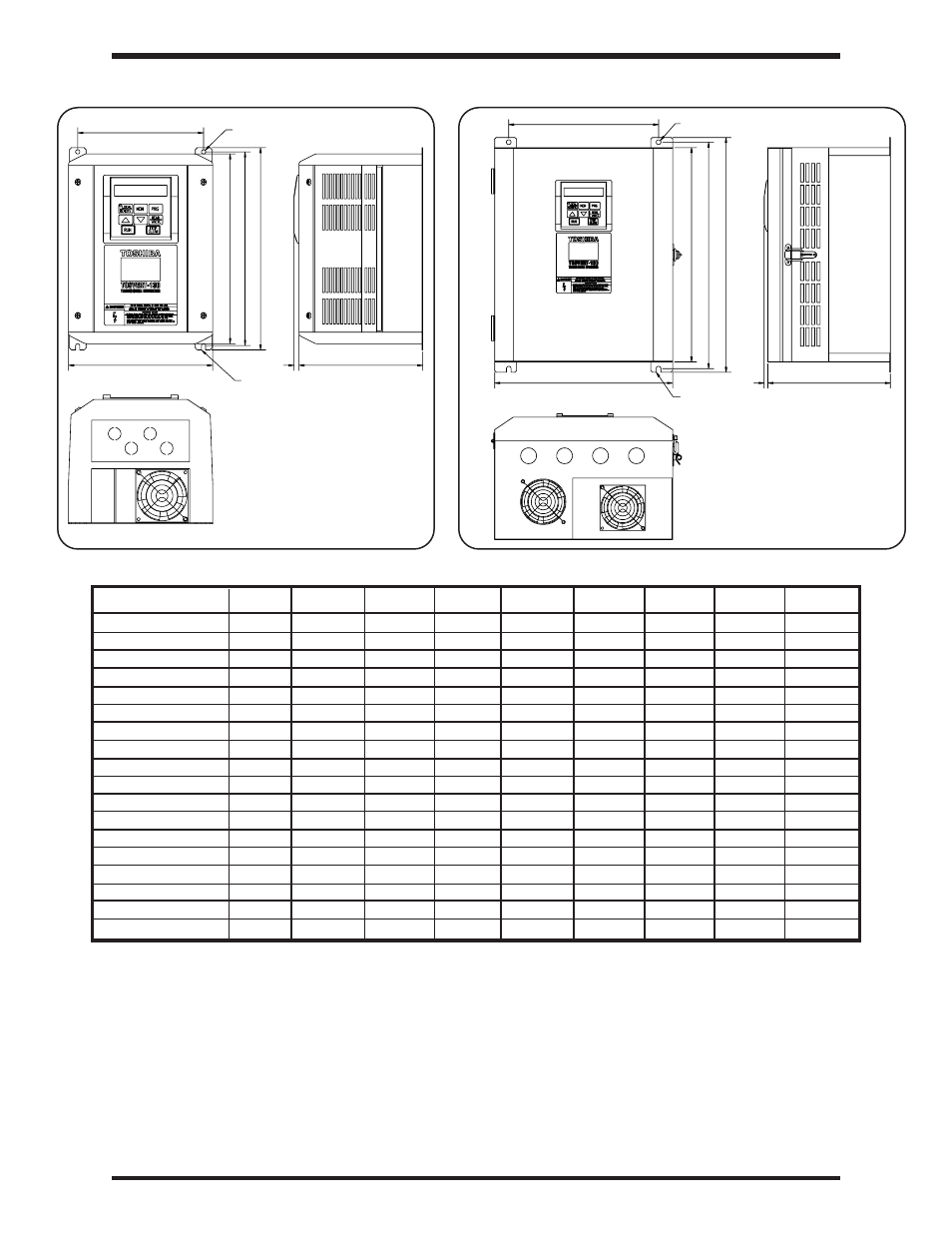

SECTION 11: Dimensions/Weights
TOSHIBA
FIGURE 1
F
2-"H" DIA.
C B
.27
A E D
FIGURE 2
A E D
F
B C
.25
2-SLOT "G" DIA.
2-"H" DIA.
DIMENSIONS in inches(millimeters)
2-SLOT "G" DIA.
H3
H3
