Toshiba Adjustable Speed Drive H3 - Manual (Page 25)

TOSHIBA
4 - 9

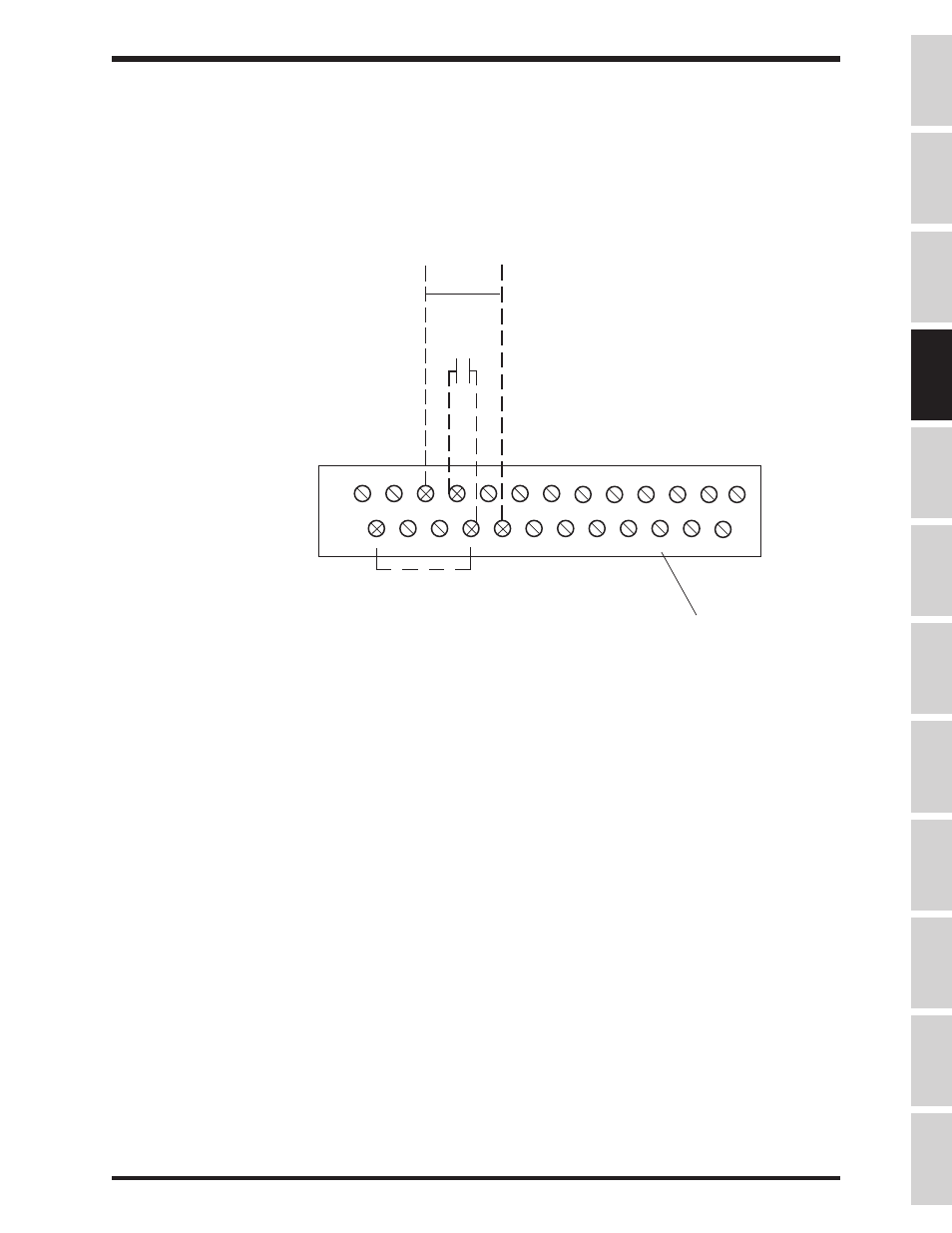

Terminal Block
ST FM AM CC CC RX PP IV FP FLC FLB FLA
P24 RES RR F R S1 S2 S3 S4 RCH
A
RCH
C
LOW
A
LOW
C
To run from a 0-10 V reference, the H3 must have:
1) Drive enable ("ST"-"CC" made)
2) Direction command ("F" or "R" to "CC" made)
3) Frequency reference ( 0-10 V signal applied to "RR" terminal )
4) LOCAL/REMOTE LED off (puts drive in remote mode).
Toggle the LOCAL/REMOTE button on keypad to turn LED off.
Notes:
1) The drive will accel to commanded frequency when "F" or "R" to "CC" is made.
2) The drive will decel to 0.0 Hz when "F" or "R" to "CC" is broken.
3) Motor will coast to a stop if "ST" to "CC" is broken.
4) The above information applies to a H3 with factory default programming.
5) Do not connect "CC" to ground.
< >
Reference
0-10 V
stop/start
(+) ( - )
Connection Examples: 0-10 volt Reference Operation
