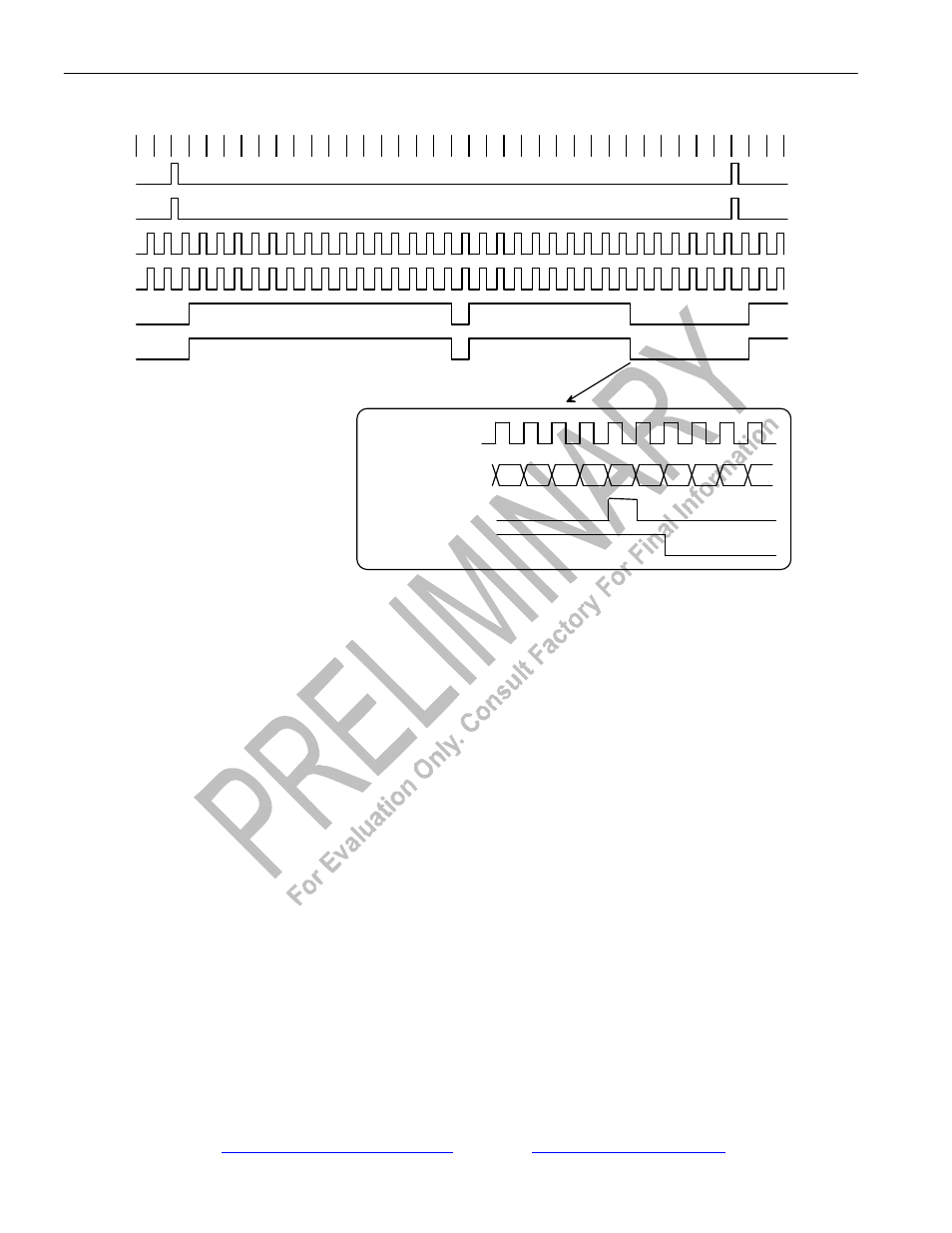

G.802 TIMING, E1 MODE ONLY Figure 35-17

NOTE:

1) RCHBLK or TCHBLK programmed to pulse high during timeslots 1 through 15, 17 through 25, and

bit 1 of timeslot 26.

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31

31 32

TS #

RSYNC

TSYNC

RCHCLK

TCHCLK

RCHBLK

TCHBLK

CHANNEL 26

CHANNEL 25

LSB MSB

RCLK / RSYSCLK
TCLK / TSYSCLK

RSER / TSER

RCHCLK / TCHCLK

RCHBLK / TCHBLK

1 2
