2 wiring diagram of door locked when powering off – Hikvision DS-K1T341BMWI-T Touchless Identity Authentication Terminal User Manual
Page 27
DS-K11T341BM(W)I-T Touchless Identity Authentication Terminal User Manual
UM DS-K1T341BM(W)I-T Touchless Identity Authentication Terminal 031221NA
27

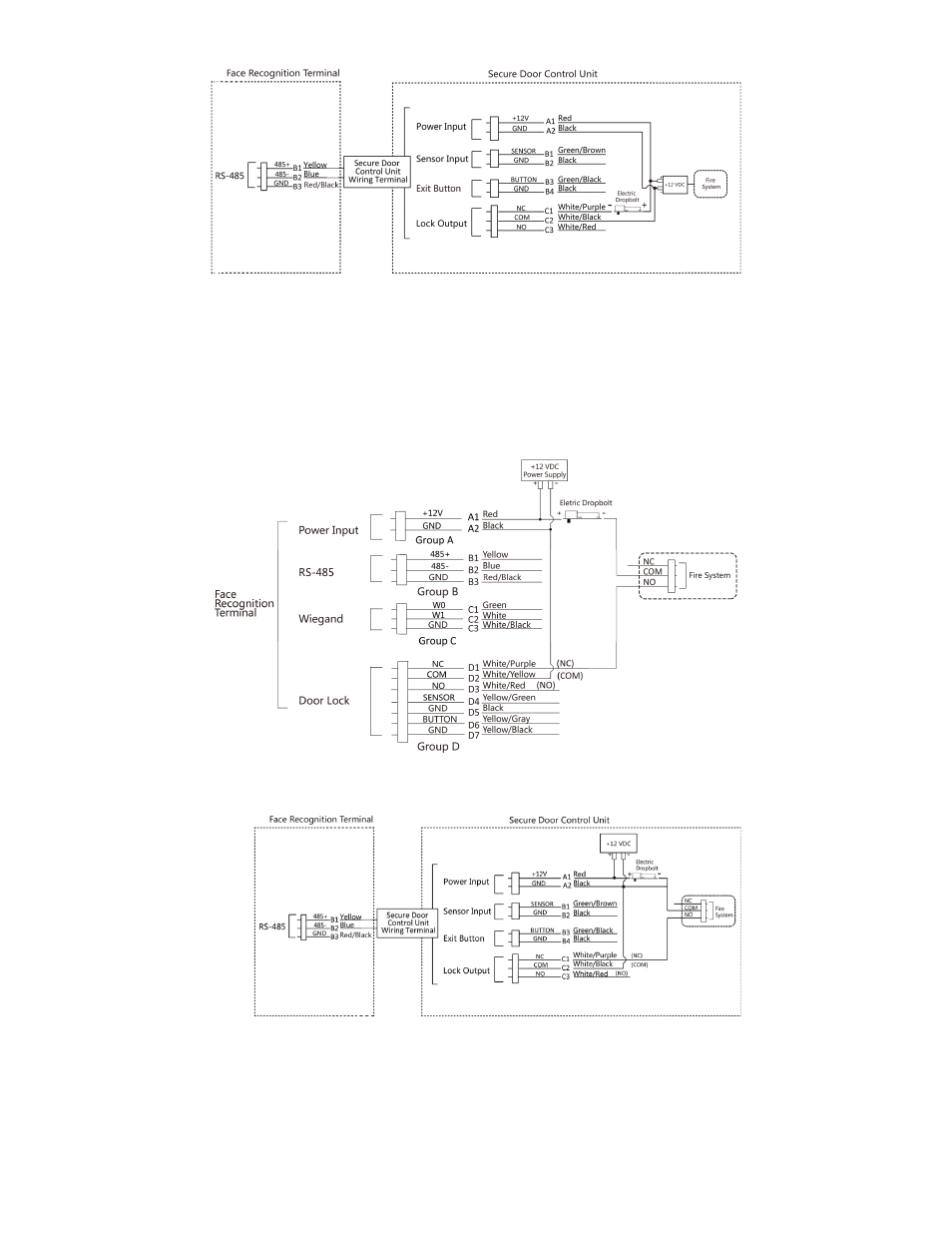

Figure 19, Wire Secure Door Control Unit
Type 2
NOTE:
The fire system (NO and COM, normally open when powering off) is connected with the lock
and the power supply in series. When an fire alarm is triggered, the door remains open. In
normal times, NO and COM are closed.
Figure 20, Wiring Device
Figure 21, Wiring Secure Door Control Unit
4.4.2 Wiring Diagram of Door Locked When Powering Off
•
Lock Type:
Cathode Lock, Electric Lock, and Electric Bolt (NC)
