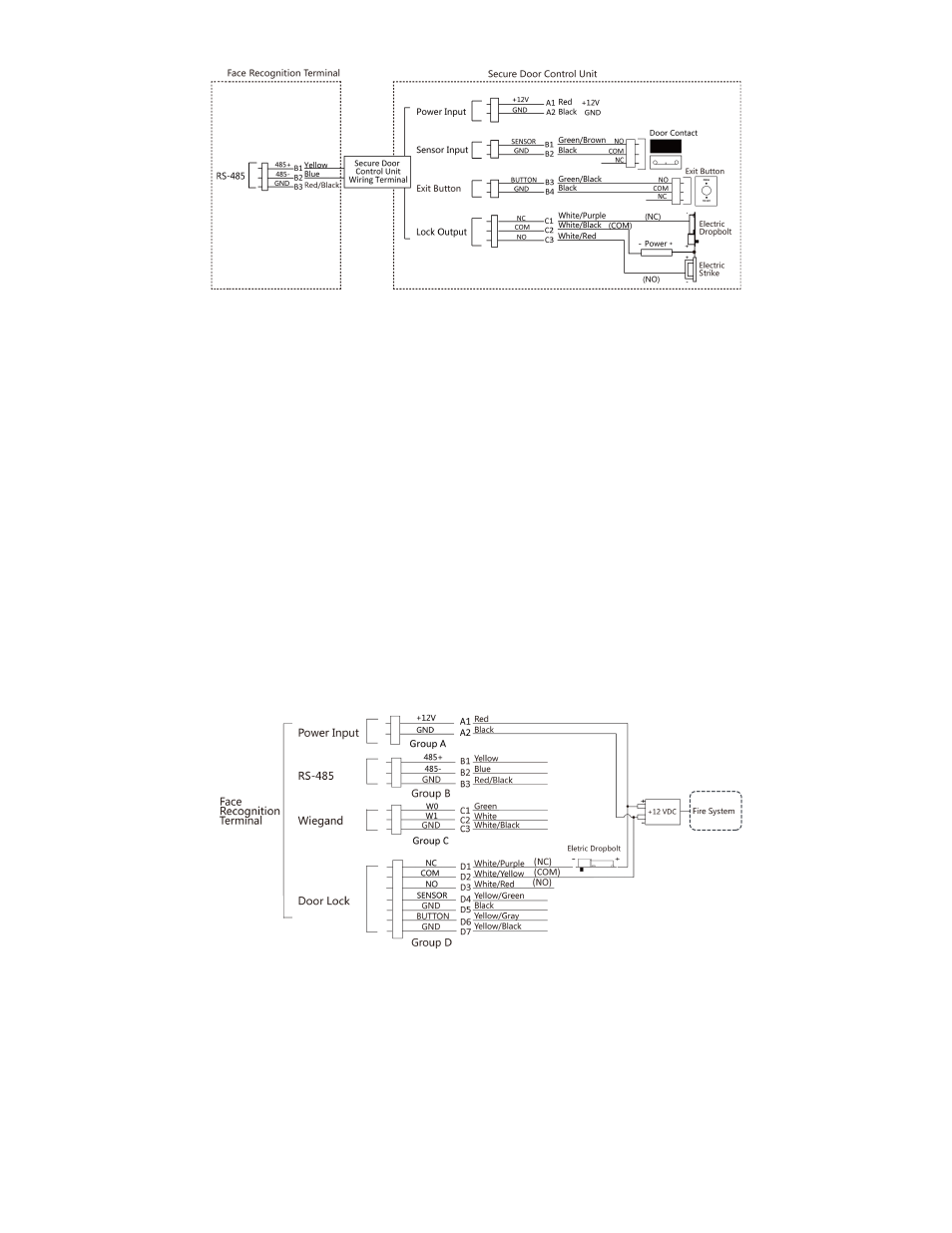

Figure 17, Secure Door Control Unit Wiring
NOTE:
The secure door control unit should connect to an external power supply separately. The
suggested external power supply is 12V, 0.5A.
4.4 Wire Fire Module
4.4.1 Wiring Diagram of Door Open When Powering Off
•
Lock Type:
Anode Lock, Magnetic Lock, and Electric Bolt (NO)
•
Security Type:
Door Open When Powering Off
•
Scenario:
Installed in Fire Engine Access
Type 1
NOTE:
The fire system controls the power supply of the access control system.
Figure 18, Wire Device
