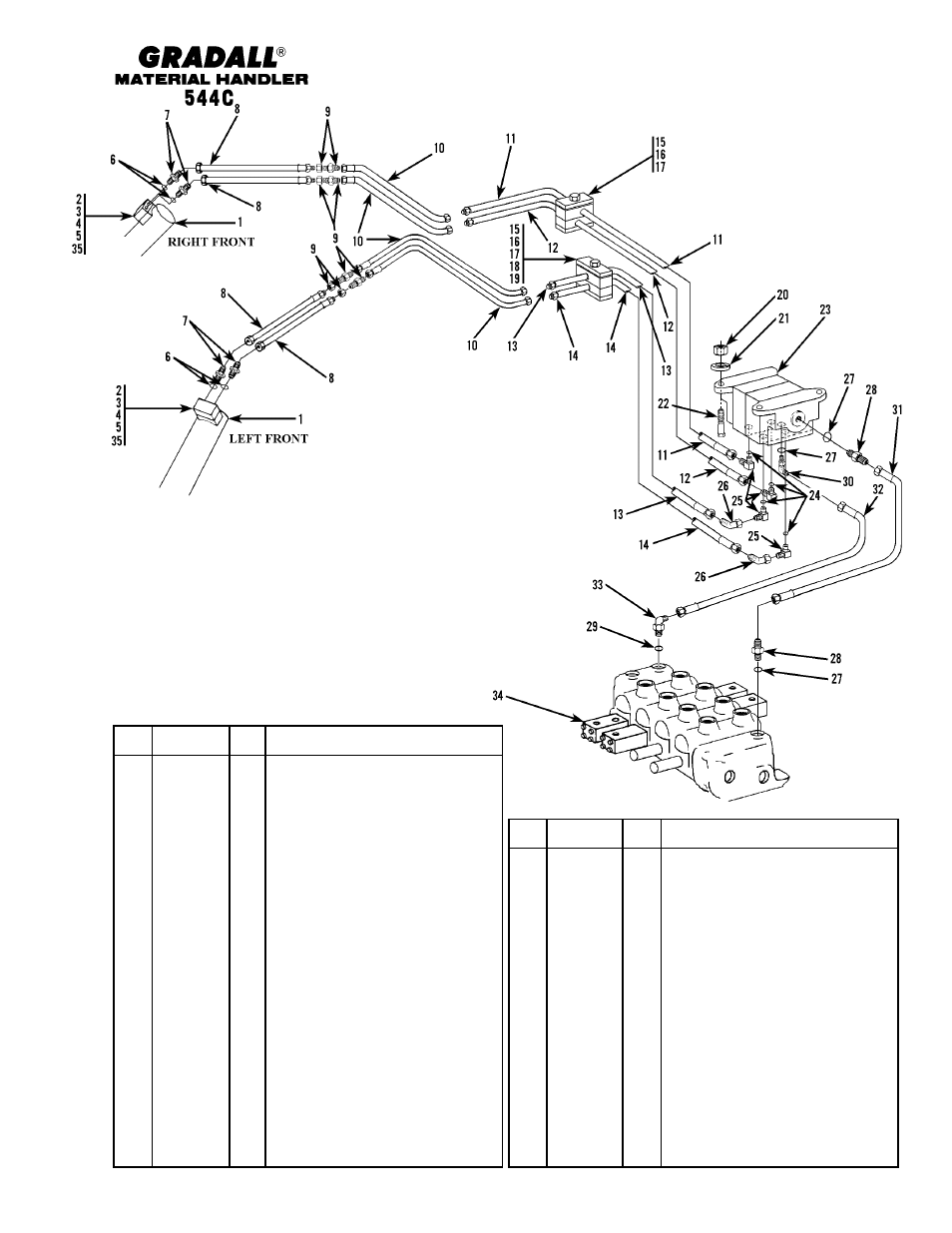

Item Part No. Qty. Description Of Part
22 8820-1070 3 HEX HD CAPSCREW, 1/2-13X2-1/4,
GR5
23 Ref OUTRIGGER CONTROL VALVE,
(see page 10-24 for details)
24 8859-2020 4 O-RING
25 9105-3450 4 ELBOW, 90 DEGREES (includes
item 24)
26 8866-2105 2 ELBOW, 90 DEGREES (swivel nut)
27 8859-1209 3 O-RING
28 8866-2025 2 CONNECTOR (includes item 27)
29 8859-1207 1 O-RING
30 8866-2061 1 ELBOW, 90 DEGREES (includes
item 27)
31 8471-8668 1 HOSE ASSY
32 8471-8680 1 HOSE ASSY
33 8866-2067 1 ELBOW, 90 DEGREES (includes
item 29)
34 Ref MAIN CONTROL VALVE (see
page 10-14 for details)
35 9116-3246 2 ORIFICE FITTING (port "c")
Item Part No. Qty. Description Of Part
1 Ref OUTRIGGER CYLINDER ASSY
(see page 10-8 for details)
2 Ref OUTRIGGER CYLINDER VALVE
(see page 10-19 for details)
3 8820-1040 6 HEX HD CAPSCREW, 3/8-16X2-1/4,
GR5
4 8855-1011 6 LOCKWASHER, 3/8
5 8859-1012 4 O-RING
6 8859-1204 4 O-RING
7 8866-2005 4 CONNECTOR (includes item 6)
8 8471-8737 4 HOSE ASSY
9 8866-1084 4 BULKHEAD UNION, 9/16-18X3/8,
TUBE
10 8471-8738 4 HOSE ASSY
11 9116-3128 1 TUBE ASSY
12 9116-3127 1 TUBE ASSY
13 9116-3126 1 TUBE ASSY
14 9116-3125 1 TUBE ASSY
15 7713-3168 7 CLAMP SET (4 not illustrated)
16 7713-3140 4 COVER PLATE (2 not illustrated)
17 7713-3177 4 HEX HD CAPSCREW, 5/16-18X1-3/8,
(2 not illustrated)
18 7713-3390 3 SAFETY CLIP (2 not illustrated)
19 7713-3389 3 STACK BOLT (2 not illustrated)
20 8850-1008 3 HEX NUT, 1/2-13
21 8855-1013 3 LOCKWASHER, 1/2
HYDRAULIC CIRCUITS
Outrigger Cylinder
Starting Serial No. 0255001
Original Issue 10-96
Revised 3-7-97
9-13 MPC 2354-KG
* Added location for item 35 to art. Changed part numbers on items 3, 6 & 7.
*
*
*
