Gradall 544C-10 - Manual (Page 80)

CONTROLS

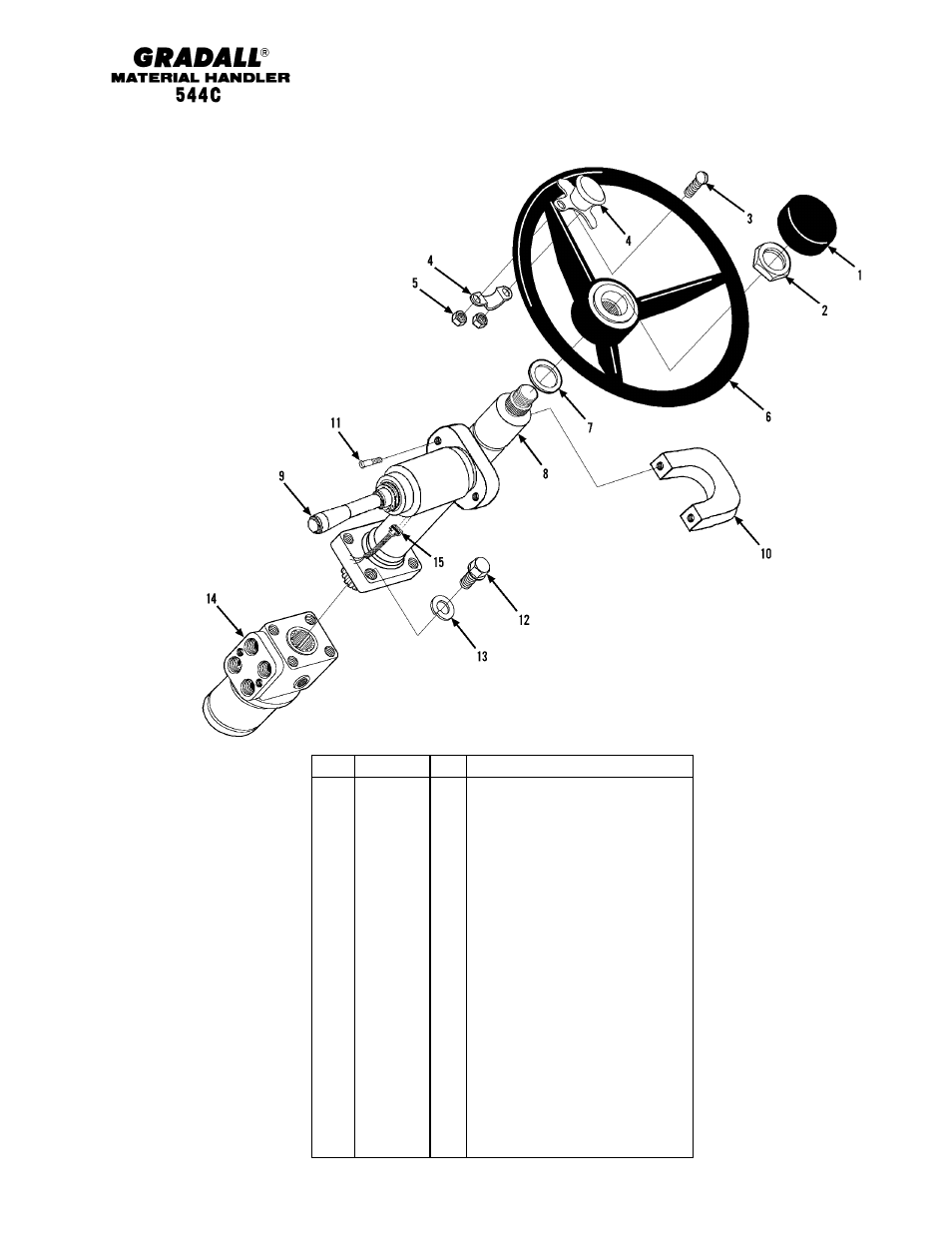

Steering Column & Attaching Parts
Starting Serial No. 0255001
Original Issue 7-96
Revised 8-2-00
7-5 JP
Item Part No. Qty. Description Of Part
9114-4190 Ref STEERING CONTROL UNIT SEAL
KIT
1 9060-0274 1 STEERING CAP
2 9114-4191 1 STEERING WHEEL NUT
3 8830-1311 2 FLAT HD MACHINE SCREW,
1/4-20 x 1
4 9020-2230 1 SPINNER KNOB
5 8850-1616 2 HEX NUT, 1/4-20
6 9060-0273 1 STEERING WHEEL
7 9114-4192 1 WASHER
8 9116-3012 1 STEERING COLUMN (includes
items 2 & 7)
9 9116-3013 1 F/N/R SHIFTER (includes item 10)
10 9114-4458 1 CLAMP SET
11 8319-1059 2 HEX HD CAPSCREW, M5X0.8,
(torque to 30-35 in.lbs.)
12 8820-1035 2 HEX HD CAPSCREW, 3/8-16 x 1
13 8855-1011 2 LOCKWASHER, 3/8
14 9114-3020 1 STEERING CONTROL UNIT
15 9116-3020 1 DASH WIRING HARNESS
NOTE: ONLY ITEMS WITH PART
NUMBERS ARE AVAILABLE
FOR SERVICE.
NOTE: WHEN ITEM 9 IS ORDERED,
REPLACE SCREWS PROVIDED
FROM VENDOR WITH ITEM 11.
*
* Added part number to item 10.
