HYDRAULIC COMPONENTS

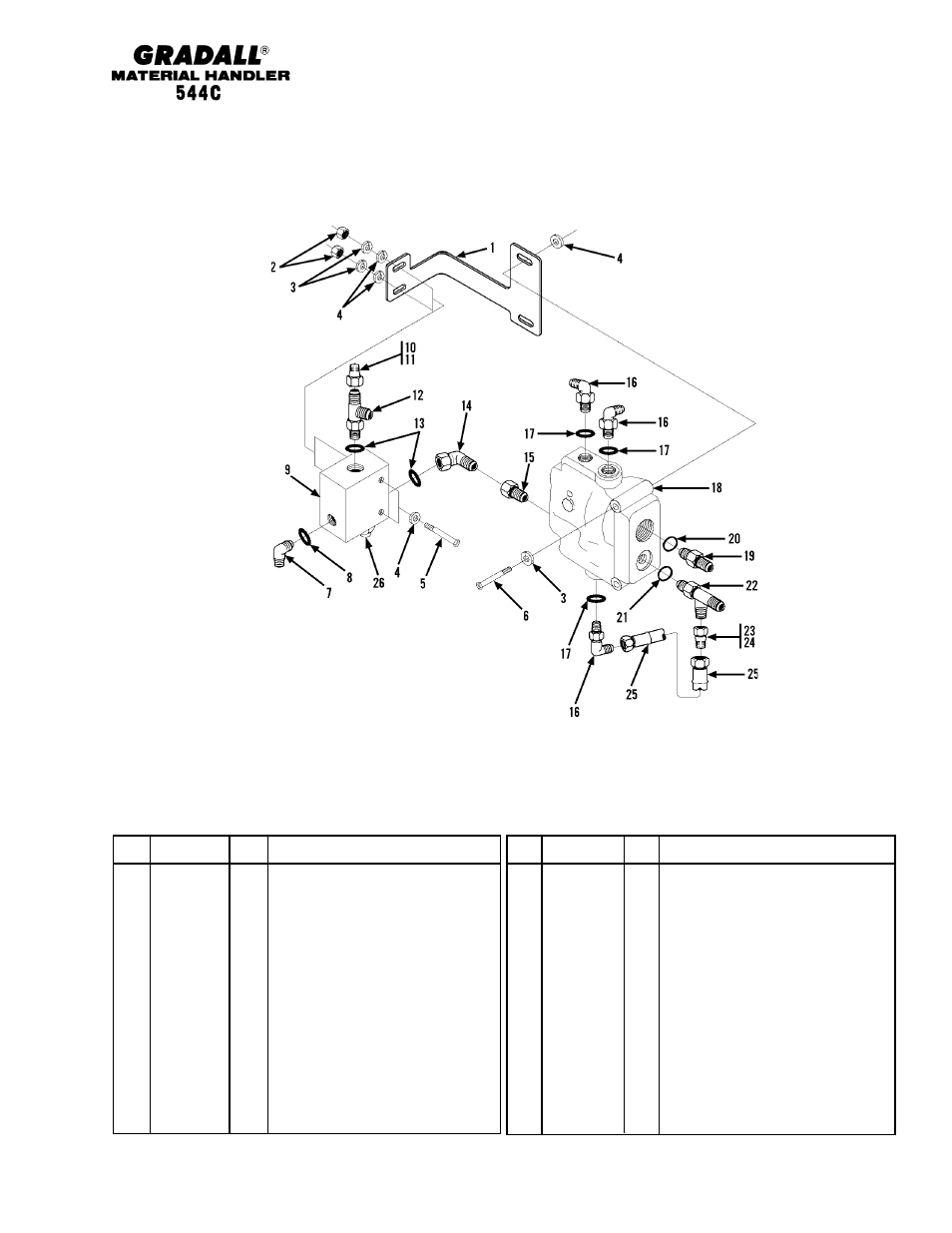

(9116-5023) Flow Divider Assy
Starting Serial No. 0255001
Original Issue 8-96
Revised 5-17-00
10-9
SVC
Item Part No. Qty. Description Of Part
9116-5023 1 FLOW DIVIDER ASSY (includes
all items except item 6 & two of items
3 & 4)
1 9116-1272 1 FLOW DIVIDER BRACKET
2 8850-1005 2 HEX NUT, 5/16-18
3 8855-1010 4 LOCKWASHER, 5/16
4 8856-1003 6 WASHER, 5/16
5 8820-1027 2 HEX HD CAPSCREW, 5/16-18X2-3/4,
GR5
6 8820-1029 2 HEX HD CAPSCREW, 5/16-18X3-1/4,
GR5
7 8866-2064 1 ELBOW, 90 DEGREES (includes
item 8)
8 8859-1204 1 O-RING
9 9116-3211 1 FLOW DIVIDER
10 9132-3007 1 REDUCER
11 8866-1408 1 NUT
12 8866-2144 1 RUN TEE(includes item 13)
Item Part No. Qty. Description Of Part
13 8859-1209 2 O-RING
14 8866-2061 1 ELBOW, 90 DEGREES (includes
item 13)
15 9116-3121 1 SWIVEL NUT ADAPTER
16 8866-2062 3 ELBOW, 90 DEGREES (includes
item 17)
17 8859-1202 3 O-RING
18 9116-3071 1 FLOW DIVIDER
9114-4062 AR FLOW DIVIDER SEAL KIT
19 8866-2027 1 CONNECTOR (includes item 20)
20 8859-1207 1 O-RING
21 8859-1205 1 O-RING
22 8866-2140 1 RUN TEE (includes item 21)
23 8866-1341 1 REDUCER
24 8866-1406 1 NUT
25 8471-8692 1 HOSE ASSY
26 9116-4103 1 CARTRIDGE
9116-4106 AR CARTRIDGE SERVICE KIT
* Added item 26; added cartridge service kit; revised illustration.
*
*
