Page 90

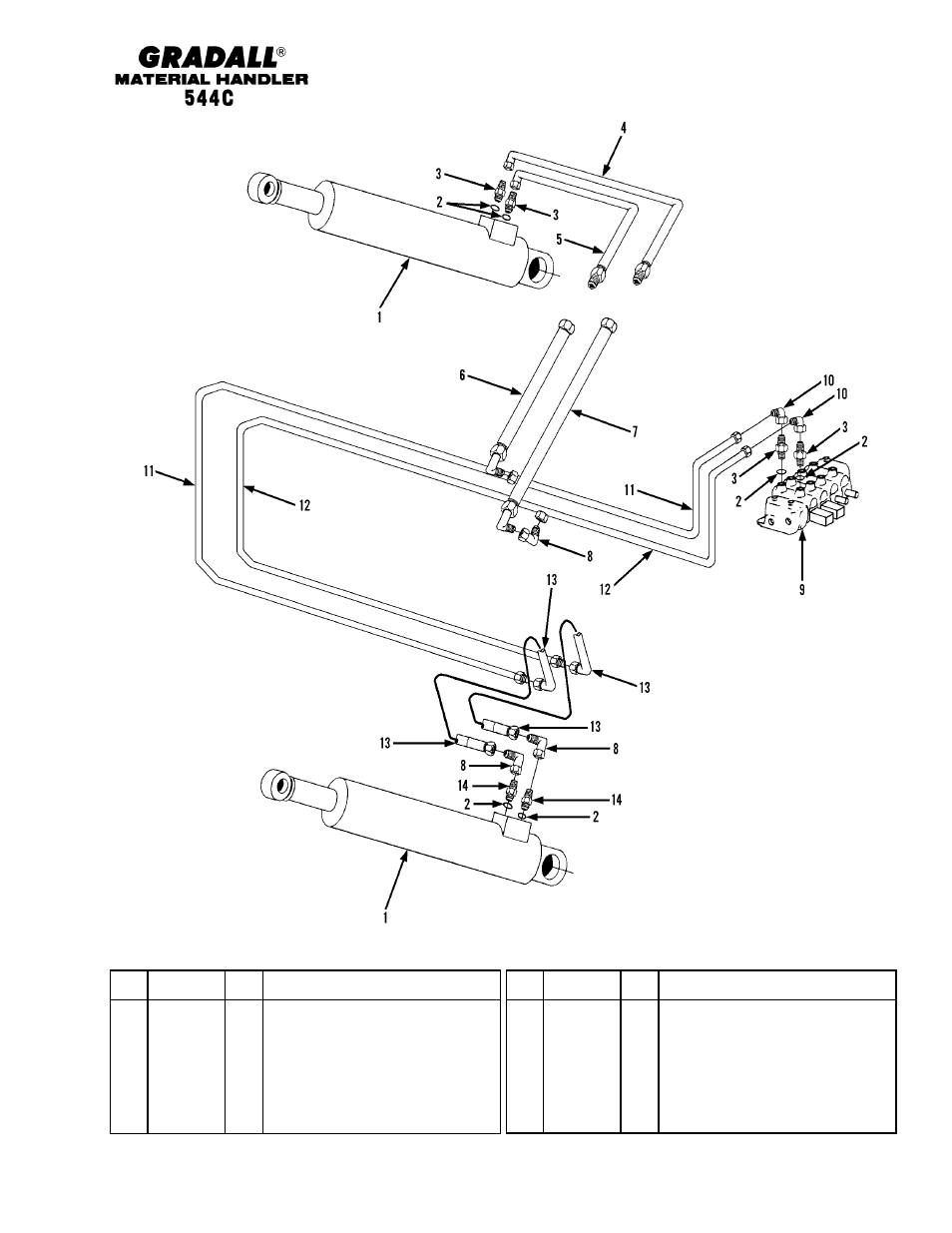

HYDRAULIC CIRCUITS
Lift Cylinder
Starting Serial No. 0255001
Original Issue 10-96
9-6
KG
Item
Part No.
Qty.
Description Of Part
8
8866-2107
3
ELBOW, 90 DEGREES (swivel nut)
9
Ref
MAIN CONTROL VALVE (see page
10-14 for details)
10
8866-2108
2
ELBOW, 90 DEGREES (swivel nut)
11
9116-3218
1
TUBE ASSY
12
9116-3217
1
TUBE ASSY
13
8471-8948
2
HOSE ASSY
14
8866-2022
2
CONNECTOR (includes item 2)
Item
Part No.
Qty.
Description Of Part
1
Ref
LIFT CYLINDER ASSY (see page 10-3
for details)
2
8859-1207
6
O-RING
3
8866-2008
4
CONNECTOR (includes item 2)
4
9116-3220
1
TUBE ASSY
5
9116-3219
1
TUBE ASSY
6
8471-8893
1
HOSE ASSY
7
8471-8894
1
HOSE ASSY
