HYDRAULIC CIRCUITS

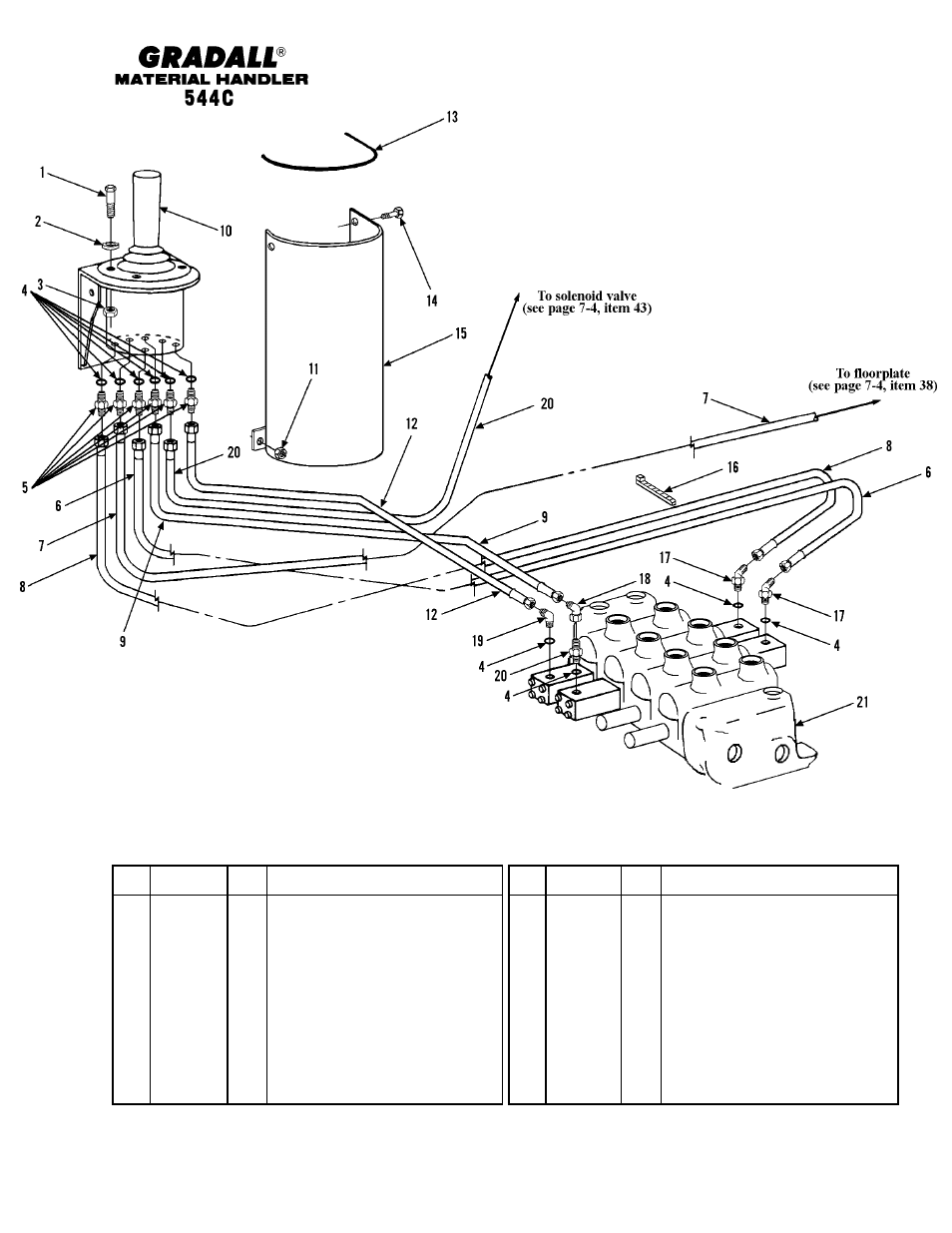

Joystick Circuit
Starting Serial No. 0255001
Original Issue 10-96
9-11 KG
Item Part No. Qty. Description Of Part
12 7736-3126 1 HOSE ASSY (lift up)
13 9020-6199 AR TRIM LOK
14 7714-3003 2 WHIZ SCREW, 5/16-18X5/8
15 9114-6047 1 COVER
16 9002-7187 AR TIE WRAP
17 8866-2084 2 ELBOW, 45 DEGREES (includes
item 4)
18 8866-2105 1 ELBOW, 90 DEGREES (swivel nut)
19 8866-2064 1 ELBOW, 90 DEGREES (includes
item 4)
20 8471-8736 1 HOSE ASSY (pressure)
21 Ref MAIN CONTROL VALVE (see
page 10-14 for details)
Item Part No. Qty. Description Of Part
1 8826-1017 4 SOCKET BUTTON HD CAPSCREW,
1/4-20X7/8, GR5
2 8855-1009 4 LOCKWASHER, 1/4
3 8850-1004 4 HEX NUT, 1/4-20
4 8859-1204 10 O-RING
5 8866-2005 7 CONNECTOR (includes item 4)
6 8471-7519 1 HOSE ASSY (crowd in)
7 8471-8735 1 HOSE ASSY (return)
8 7713-3197 1 HOSE ASSY (lift down)
9 8471-8377 1 HOSE ASSY (crowd out)
10 Ref JOYSTICK (see page 10-20
for details)
11 7714-3006 2 WHIZ LOCKNUT, 5/16-18
