Gradall 544C-10 - Manual (Page 94)

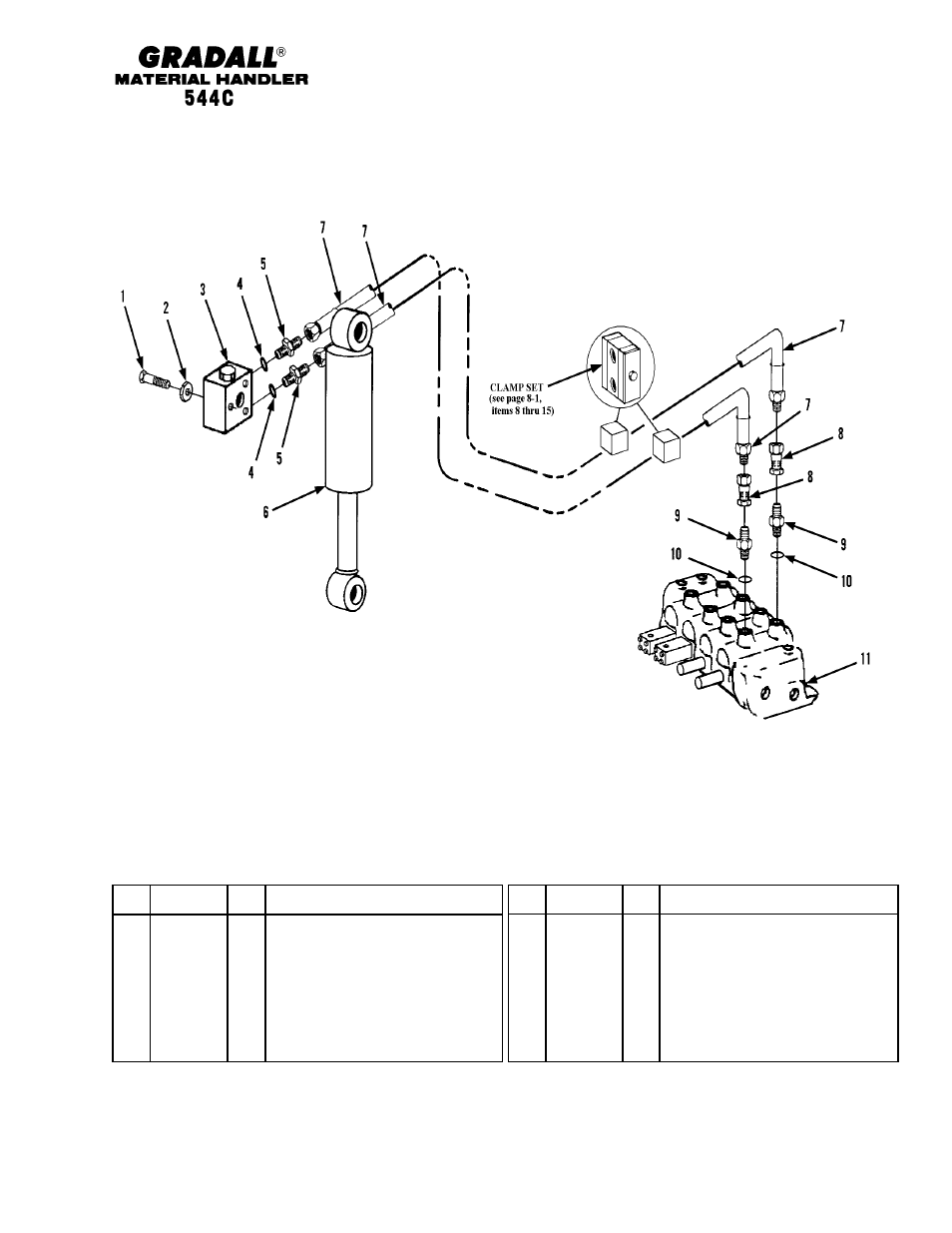

HYDRAULIC CIRCUITS
Sway Cylinder
Starting Serial No. 0255001
Original Issue 10-96
9-9 KG
Item Part No. Qty. Description Of Part
6 Ref SWAY CYLINDER (see page
10-5 for details)
7 8471-8675 2 HOSE ASSY
8 8866-1341 2 TUBE END REDUCER (1/2x1/4)
8866-1406 2 NUT
9 8866-2020 2 CONNECTOR (includes item 10)
10 8859-1207 2 O-RING
11 Ref MAIN CONTROL VALVE ASSY
(see page 10-14 for details)
Item Part No. Qty. Description Of Part
1 8820-1040 3 HEX HD CAPSCREW, 3/8-16X2-1/4,
GR5
2 8855-1011 3 LOCKWASHER, 3/8
3 Ref SWAY CYLINDER VALVE (see
page 10-19 for details)
4 8859-1012 2 O-RING
5 8866-2082 2 CONNECTOR (includes item 4)
