Gradall 544C-10 - Manual (Page 81)

BRAKES

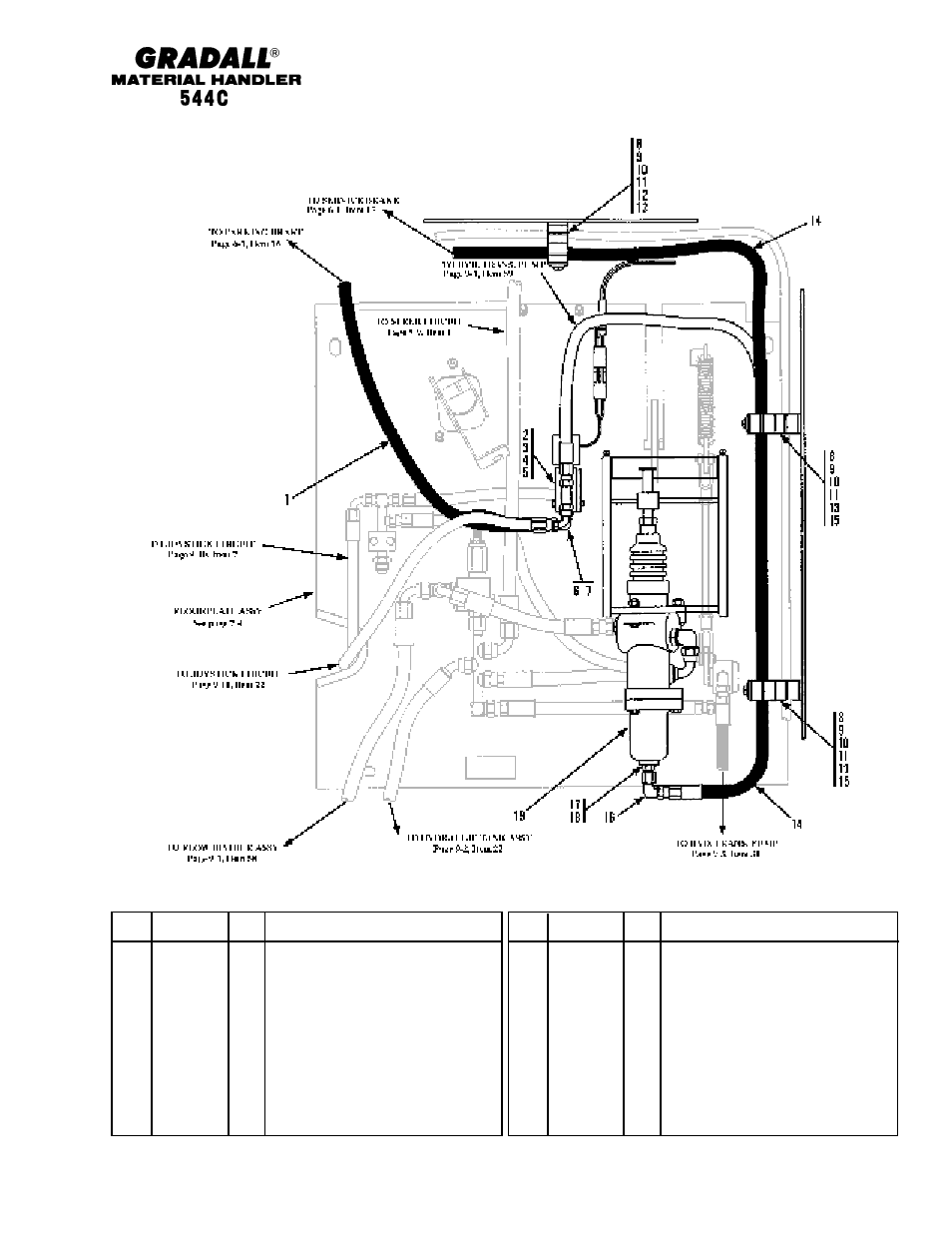

Service/Parking Brake Lines
Starting Serial No. 0255001
Original Issue 9-96
8-1 KG
Item Part No. Qty. Description Of Part
1 8471-8759 1 HOSE ASSY
2 Ref SOLENOID VALVE (see page 10-11
for details)
3 8820-1008 2 HEX HD CAPSCREW, 1/4-20X1 3/4,
GR5
4 8855-1009 2 LOCKWASHER, 1/4
5 8856-1107 2 FLAT WASHER, 1/4
6 8866-2064 1 ELBOW, 90 DEGREES (includes
item 7)
7 8859-1204 1 O-RING
8 7713-3136 3 CLAMP SET, 3/4-3/4
9 7713-3137 3 COVER PLATE
Item Part No. Qty. Description Of Part
10 8820-1023 1 HEX HD CAPSCREW, 5/16-18X1 3/4,
GR5
11 7713-3168 3 CLAMP SET, 1/2-1/2
12 7713-3389 1 STACK BOLT
13 7713-3390 1 SAFETY CLIP
14 8471-8753 1 HOSE ASSY
15 7713-3306 2 STACK BOLT
16 8866-2105 1 ELBOW, 90 DEGREES (swivel nut)
17 8363-3002 1 STRAIGHT THREAD CONNECTOR
18 9020-7856 1 COPPER GASKET
19 Ref BRAKE VALVE (see page 10-10
for details)
