Gradall 544C-10 - Manual (Page 100)

HYDRAULIC CIRCUITS

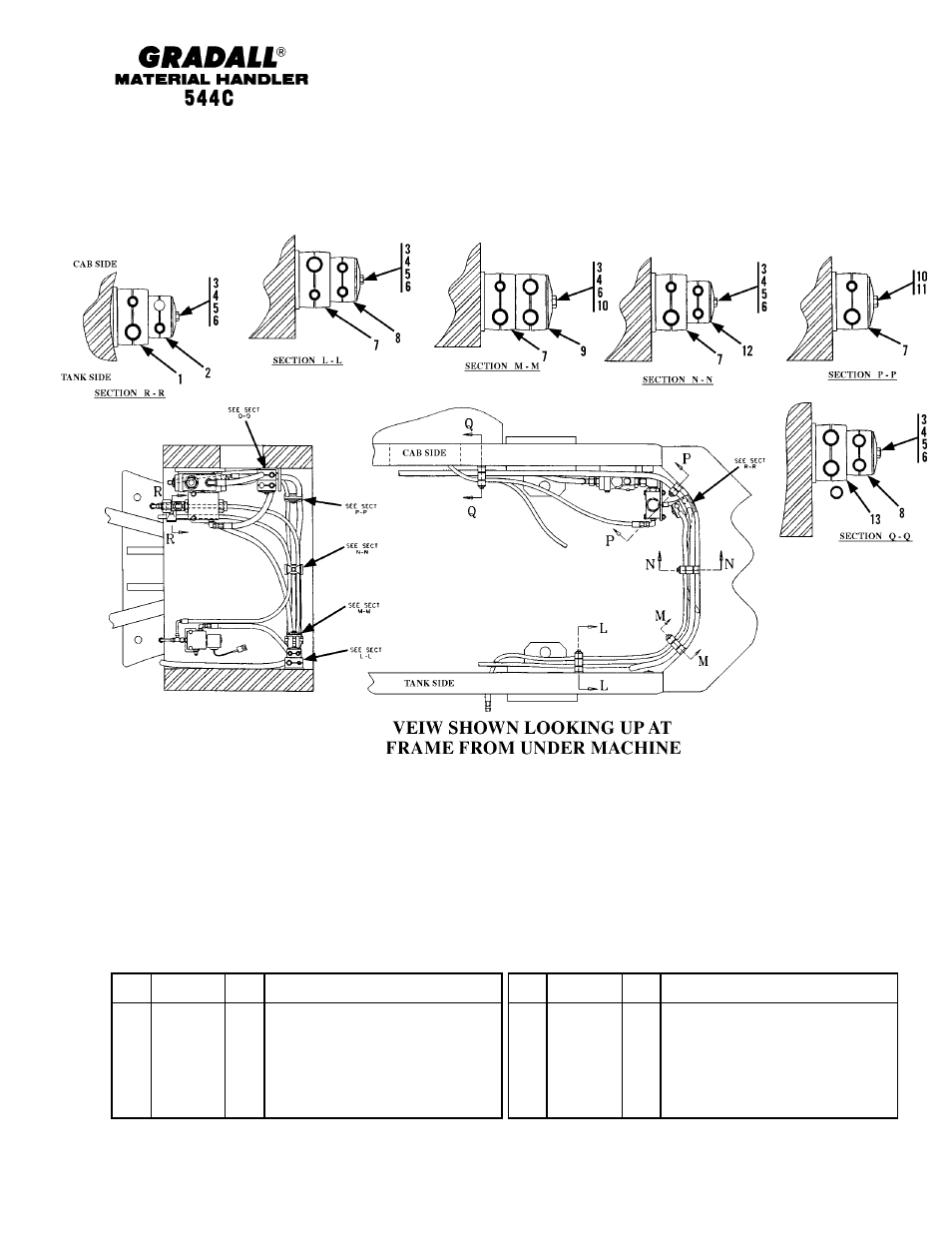

Hose Clamp Locations (rear)
Starting Serial No. 0255001
Original Issue 3-97
9-14 KG
Item Part No. Qty. Description Of Part
8 7713-3139 2 CLAMP SET, 5/8-5/8
9 7713-3136 1 CLAMP SET, 3/4-3/4
10 7713-3137 2 COVER PLATE
11 8820-1023 2 BOLT
12 9108-3240 1 CLAMP SET, 5/8 - 1/2
13 7713-3279 1 CLAMP SET, 1-1
Item Part No. Qty. Description Of Part
1 8093-3140 1 CLAMP SET, 13/16 - 1-1/4
2 7713-3168 1 CLAMP SET, 1/2-1/2
3 7713-3306 5 STACK BOLT
4 7713-3140 4 COVER PLATE
5 7713-3177 4 BOLT
6 7713-3390 5 SAFETY CLIP
7 9121-3002 4 CLAMP SET, 3/4-1/2
