Gradall 544C-10 User Manual
Page 153
13-11
KG
OPTIONAL EQUIPMENT

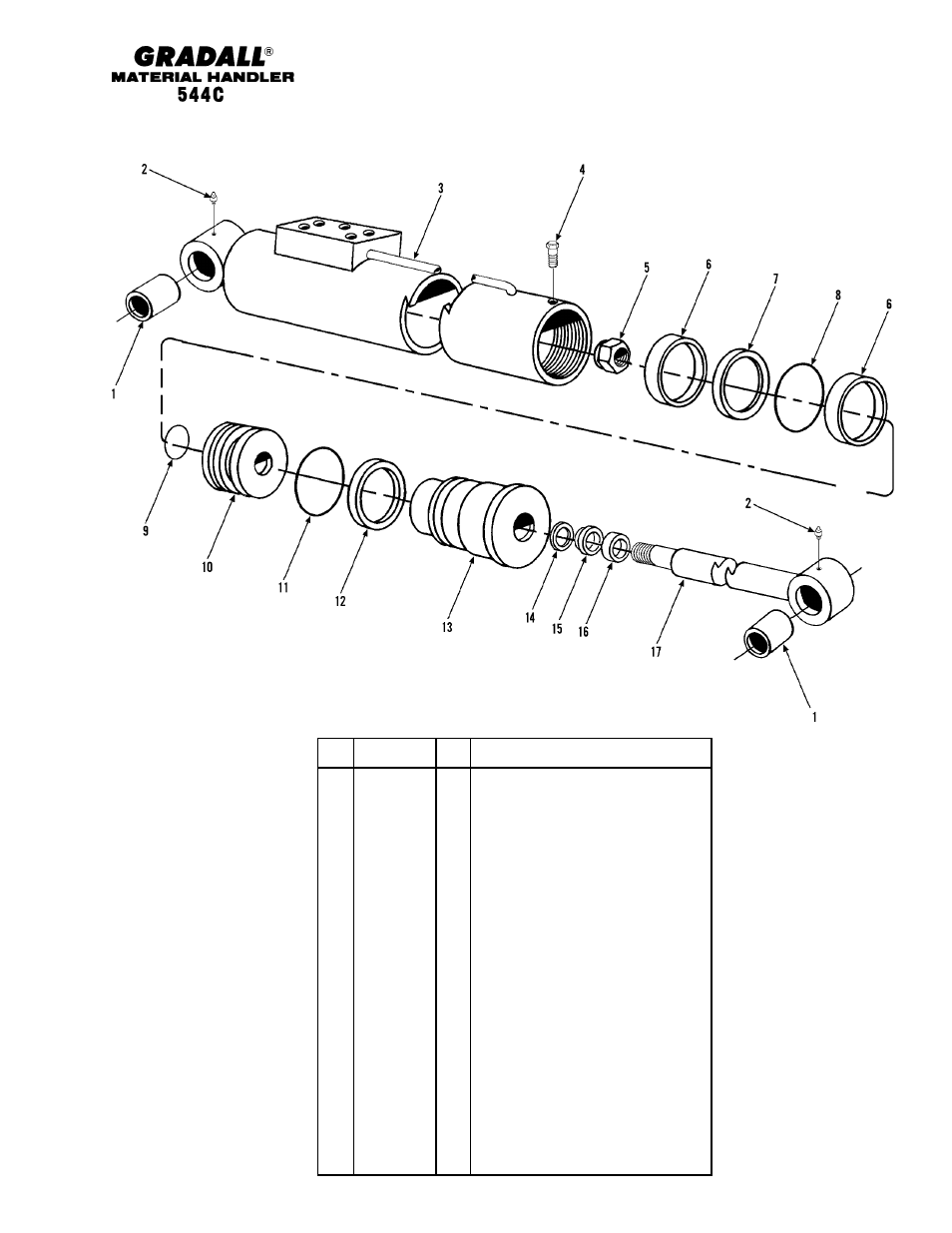

(9108-3471) Sway Cylinder
Starting Serial No. 0255001
Original Issue 9-96
Revised 1-15-98
Item
Part No.
Qty.
Description Of Part
9108-3471
1
SWAY CYLINDER ASSY, (includes
all items)
9108-4308
Ref
SEAL KIT, (includes items 6 thru 9, 11, 12
& 14 thru 16)
1
9106-4016
2
BUSHING
2
9114-4128
2
GREASE FITTING
3
9112-4083
1
CASE ASSEMBLY
4
9114-4017
1
CAPSCREW, #8X32X.375
5
9103-4156
1
LOCKNUT, (lubricate & torque to
350-400 ft. lbs.)
6
2
WEAR RING
7
1
PISTON SEAL
8
1
O-RING
9
1
O-RING
10
9112-4084
1
PISTON
11
1
O-RING
12
1
BACK-UP RING
13
9112-4085
1
CYLINDER HEAD
14
1
STEP SEAL
15
1
U-CUP
16
1
WIPER
17
9112-4086
1
ROD ASSEMBLY
NOTE: ONLY ITEMS WITH PART
NUMBERS ARE AVAILABLE
FOR SERVICE.
* Wrong cylinder assy called out on the original issue page.
