Gradall 544C-10 - Manual (Page 132)

KG 11-4
BOOM

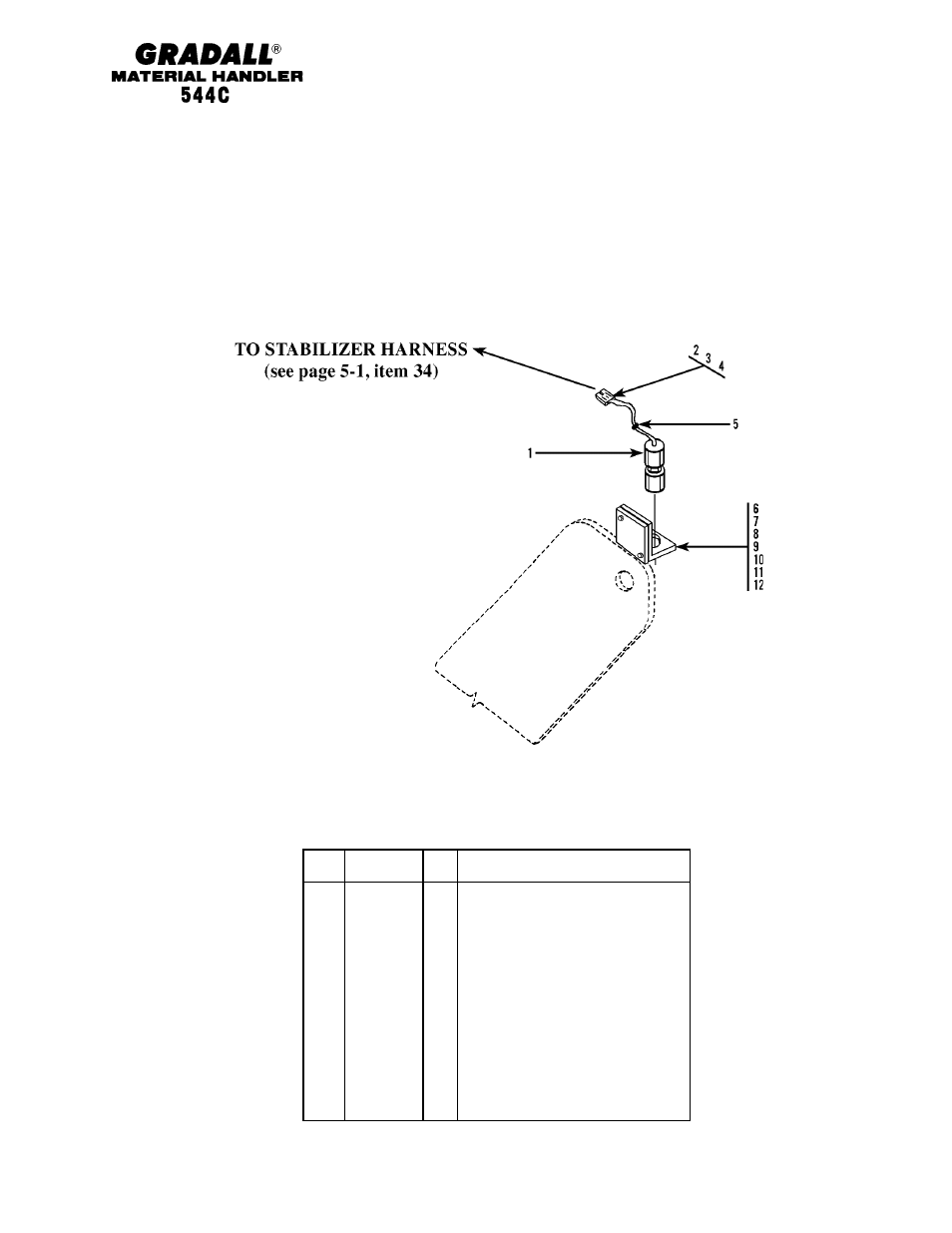

(9116-5006) Stabilizer Proximity Sensor
Starting Serial No. 0255001
Original Issue 11-96
Item Part No. Qty. Description Of Part
9116-5006 1 STABILIZER PROXIMITY SENSOR
ASSY (includes items 1 thru 5)
1 9114-3155 1 PROXIMITY SENSOR SWITCH
2 8096-3062 1 WEATHERPROOF SHROUD (4-wire)
3 8096-3069 4 MALE PIN TERMINAL
4 8096-3066 4 CABLE SEALS
5 9105-3419 1 TIE WRAP
6 9116-1185 1 STABILIZER SENSOR BRACKET
7 8830-1093 2 RD HD MACHINE SCREW,
10-24X3/4
8 8855-1007 2 LOCKWASHER, #10
9 8856-1001 4 FLAT WASHER, 3/16
10 9104-3199 2 SQUARE NUT, #10-24
11 9002-7187 4 TIE WRAP
12 9002-1705 1 SUPPORT CLAMP
NOTE: ADJUST STABILIZER
SENSOR TO OPERATE WHEN
BOOM ANGLE IS 45 _ 2 DEGREES +
